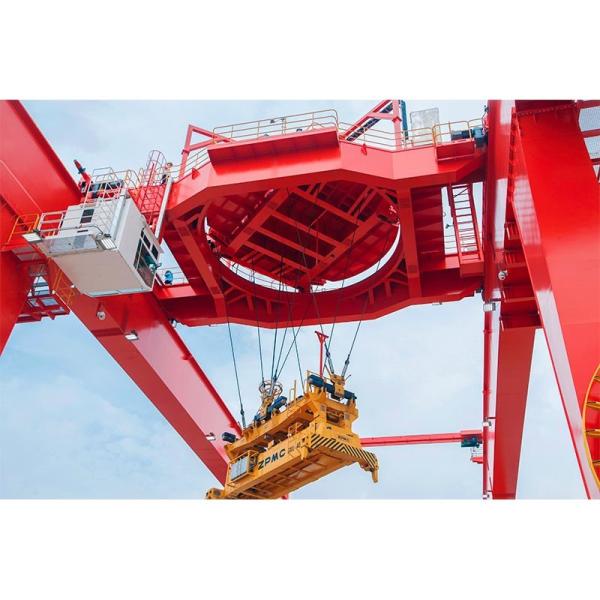

Automatic Telescopic Container Spreader For Gantry Crane

Telescopic Container Spreader

Product Description:

The container spreader refers to a special spreader for loading and unloading containers. It is connected with the top corner fittings of the container through the twist locks at the four corners of the end beam. The driver controls the opening and closing of the twist locks to carry out container loading and unloading operations.

Features:

The telescopic spreader drives the telescopic chain or cylinder through hydraulic transmission, so that the spreader can automatically expand and contract to change the length of the spreader, so as to adapt to the loading and unloading of containers of different specifications. Although the telescopic spreader has a large weight, it is easy to adjust the length, flexible operation, strong versatility, and high production efficiency. The electro-hydraulic telescopic spreader is a new type of telescopic container spreader, which can lift various containers such as ISO20'40'45'. The electric translation mechanism can be installed according to the user's needs, which can realize the translation operation in the direction of the cart and enhance the operability of the spreader.

The telescopic spreader drives the telescopic chain or cylinder through hydraulic transmission, so that the spreader can automatically expand and contract to change the length of the spreader, so as to adapt to the loading and unloading of containers of different specifications. Although the telescopic spreader has a large weight, it is easy to adjust the length, flexible operation, strong versatility, and high production efficiency.

The telescopic spreader consists of two parts: a fixed frame and a telescopic beam. The telescopic beam is telescopically driven by a telescopic drive mechanism, which can adapt to containers of different specifications. The rotation of the spreader and spreader is generally driven by hydraulic pressure (now a small number of spreaders are driven by pure electric motors), which is controlled by the driver in the crane's cab. Since multiple sensors are installed on the spreader and the interlocking device of the crane is lifted, the safety of lifting containers can be greatly improved, and various types of risks can be reduced. In order to improve efficiency and meet the lifting requirements of different cranes, manufacturers have installed various mechanisms, such as hydraulic guides, tilting devices, rotating mechanisms, etc. This makes telescopic spreaders more and more complex and more functions.

Telescopic spreaders are suitable for professional container terminals, storage yards and other occasions where various types of containers are often hoisted. Therefore, telescopic spreaders are currently the most widely used spreaders in large-scale port container terminals. This type of spreader has a complicated structure and a relatively large weight, about 8-10t; maintenance is also more complicated, and generally requires professionals to perform maintenance, and the maintenance cycle is also very long.

Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.

Our Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers. more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, In order to manufacture out the best quality crane with high efficiency production, our group invest large number of high technique equipment (include more than 100sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment.

Meanwhile, we have one most experienced and professional team for oversea market, who are the earliest one to open the industry crane oversea market in China, now our team have been one famous leading flag for industry crane exporting in China, In addition, we could supply you the turn-key project includes installation, commissioning, training and so on.

We have exported our cranes to the Australia、Bangladesh、Iraq、Pakistan、Philippines、USA、Egypt、Peru、India、Turkmenistan、Singapore、Ethiopia、South Africa、Saudi Arabia、Malta、Albania、Ukraine、Vietnam、Kenya、Nigeria、UAE、Cameroon、Uruguay、Bahrain、Thailand、Kazakhstan、Germany、Sultan、Chile、Oman、Romania、Malaysia、Armenia、Jordan、Russia、Swaziland、Qatar、Brazil、Jordan、Columbia、Cameroon、Sri Lanka、Brunei、Indonesia and so on, total more than 100 countries, received good feedback from them, We will be very happy to make friends with you come from all of the world and hope to establish long-term good cooperation with each other.

Why Choose Us

We are differentiated by our established network of suppliers which allows us to be more cost effective. We provide a quality and reliable product and we are able to guarantee long term parts availability. With over 35 years of experience within the industry and act as the leader of the field for exporting, we have a following of loyal customers and offer personalised service. We have a huge and professional team working on exporting including sales team, technology team, document team, shipping team which will ensure provide a top service.

Key Highlights of our company:

1. ISO 9001:2015,CE,GOST,BV Approved Company

2. More than 3,500 sets of various advanced processing equipment (sets)

3. The Factory covers a total fabrication area of more than 1,620,000 Sq. Mtr

4. Total Manpower of more than 4500 employees

5. 420 service organizations around the world

6. Manufactures and installs more than 90000 sets complete cranes in 2020

7. A technical team composed of more than 200 senior engineers

8. Export to 120 countries around the world.
