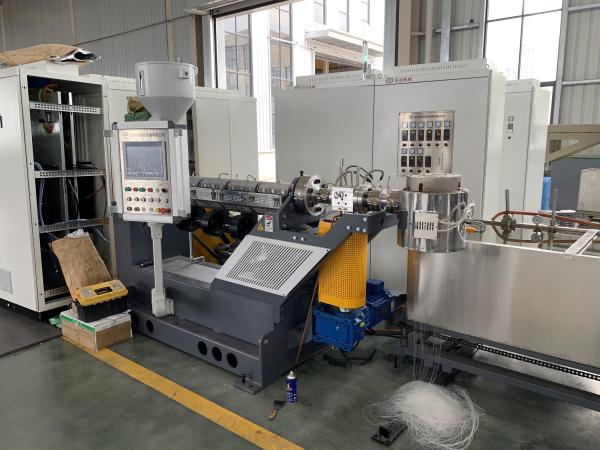

0.12-0.25mm HDPE Monofilament Extrusion Line Knotless Bird Net

Monofilament Extrusion Line For HDPE Knotless Bird Net 0.12-0.25mm 50kgh

Product Description:

1.70×33 Extruder: 1 set
(1) Screw diameter: 70mm,
Rotation speed of screw: 0～72 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA;
The screw is suitable for HDPE chips
(3) Manual filter change:1 set
(4) RKC Pressure automatic feedback system which can adjust the screw speed automatically
(5) Material of barrel heater: Cast aluminium with stainless steel insulation layer.
(6) Electric heating round spinneret: 1 set
(7) Eeramic heating rings for spinneret.
(8) Spinneret components: 2 sets with disassembly support for spinneret discreteness
(9) Metering pump, rotation speed: 0-40 rotation. Driving power: 4KW.

2.Cooling water tank: 1 set
(1) The tank is made by SS 304.
(2) Material of distributing roller: stainless steel

3.Seven roller stretching unit A
(1)Seven viable diameter rollers, there are five rollers are covered with rubber to resist skidding.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

4.Hot water tank:1 set
(1) Heating power: 27kw, two zones heater.
(2) Double pressure rollers with twin cylinder opening system which is controlled by electromagnetic valve.
(3) Water removal device.

5.Seven roller stretching unit B
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

6. Single layer hot blast annealing oven: 1 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 5000 mm

7.Seven roller stretching unit C.
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.

8. Warping winder: 3 sets, 6 spindles
1) The beam size is according to customer’s requirements.

Parameter:

Pictures:

        Changzhou Leap Machinery’s predecessor Changzhou Ruisheng Machienry is professional manufacturer for monofilament extruding machine. Mr. Zexue Wu, The President, has more than 20 years experience in the design and making of monofilament machinery.

Our Main product is Nylon/Polyester/PP/PE Monofilament making machine and design for whole plant projects.

Leap offers professional technology support and service to customer based on it's abundant expertise in manufacturing, design, and trading experience. Our working team has more than 50 high skilled personnel, well experienced and responsible to promote the working performance.

Leap insists on using the good material and parts to make the most durable and high performance machines. Every machine must pass strict and careful quality control system, and pass test running before shipping out to the customer.

Our products have been successfully sold to more than thirty countries.

        We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
