Remote 5.8G Light Switch Motion Sensor With Timer Easy Installation

    Buy cheap Remote 5.8G Light Switch Motion Sensor With Timer Easy Installation from wholesalers

    Buy cheap Remote 5.8G Light Switch Motion Sensor With Timer Easy Installation from wholesalers
    • Buy cheap Remote 5.8G Light Switch Motion Sensor With Timer Easy Installation from wholesalers

    Remote 5.8G Light Switch Motion Sensor With Timer Easy Installation

    Ask Lasest Price
    Brand Name : HAISEN
    Model Number : HD02V 1
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order
    • Product Details
    • Company Profile

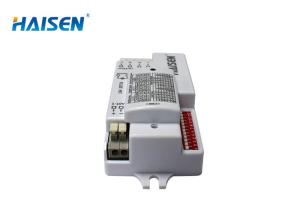

    Remote 5.8G Light Switch Motion Sensor With Timer Easy Installation

    Remote 5.8G Light Switch Motion Sensor With Timer Easy Installation​


    CE RoHS Certificate Rod Antenna Dimmable Sensor For Triproof Light Fixture


    Features:

    • Easy installation, workable for ceiling lamp, tri-proof light and panel light.
    • Sensor data can be simply set via DIP switch.
    • Support max inductive load 400w.
    • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
    • 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable.

    Specification

    InputVoltage Range220~240 VAC 50/60Hz
    Switching capacityMax.400W(Control gear) Max.800W(Incandescent lamp)
    Operating EnvironmentOperating Temperature-20°C~+55°C
    Wireless ParametersOperating Frequency5.8 GHz ±75 MHz
    Function0N/0FF+dimming function
    Safety & EMCApprovalCE, ROHS
    Sensor ParametersDetection Area10%/50%/75%/100%
    Daylight Sensor2Lux/10Lux/50Lux/Disable
    Hold time5s/30s/1min/5min/10min/20min/30min
    Mounting HeightMax.4.5m(ceiling mounted)
    Detection rangeMax.ø12m(ceiling mounted)
    OthersInstallationInstalled inside lamps
    IP ratingIP 20
    Life time50000h
    Packaging RequirementBubble pack, paper flat, outer carton.

    HD02V 1.pdf
