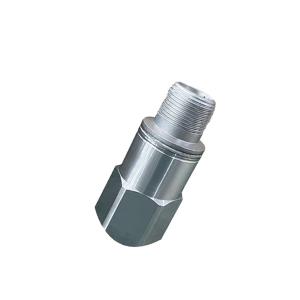

BW-187T Series Vibration Sensor
Performance index
| Range | ±50 | g |
| Sensitivity (±5%) | 100 | mV/g |
| Frequency Response (±10%) | 1~9000 | Hz |
| Frequency Response (±3dB) | 0.4~12000
| Hz |
| Mounting resonant frequency | 18000
| Hz |
| Maximum lateral sensitivity | ＜5 | % |
| Nonlinearity | ≤1 | % |
Working environment
| Noise | ≤100 | uV |
| Operating temperature range | -40~120 | ℃ |
| Overload Limit (Shock) | 3000 | g |
| Protection level | IP67 | |
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be
traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We
accept Paypal/TT/CC.If you purchase in bulk, it is recommended to
consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
