Frequency Electrical Counter Meter Tachometer High Accuracy LED Display

DM Frequency meter Tachometer Counter High Accuracy LED display

1. Features and advantages:

a). LED display.

b). Ultra-thin design, delicate size, easy to install.

c). High accuracy, good performance.
d). For measuring frequency/tacho/counting.
e). Decimal point floating display. Display the fractional values accoriding to available space next to the last digit from the left.

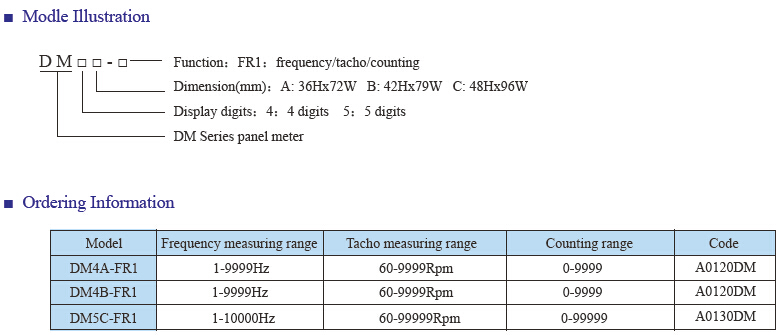

2. Model specification:

3. Technical parameter:

Display	Red LED
Input resistance	>10KΩ
Input level	5～25V
Signal	Square or sino wave signal
Max.input	25V
Frequency accuracy	±0.05%±1Digit(DM4A-FR1,DM4B-FR1); ±0.05%±10Digits(DM5C-FR1)
Frequency span	0.1～10KHZ
Conting speed	≤1000CPS
Sampling rate	auto
Decimal point	set automatically
overflow indication	"UUUU"or"UUUUU"
Power supply	DC 5V±10% ≤90mA
Operating temperature	0～50℃ <85%RH

4. Appearance and installation dimensions:

5. Connections:
