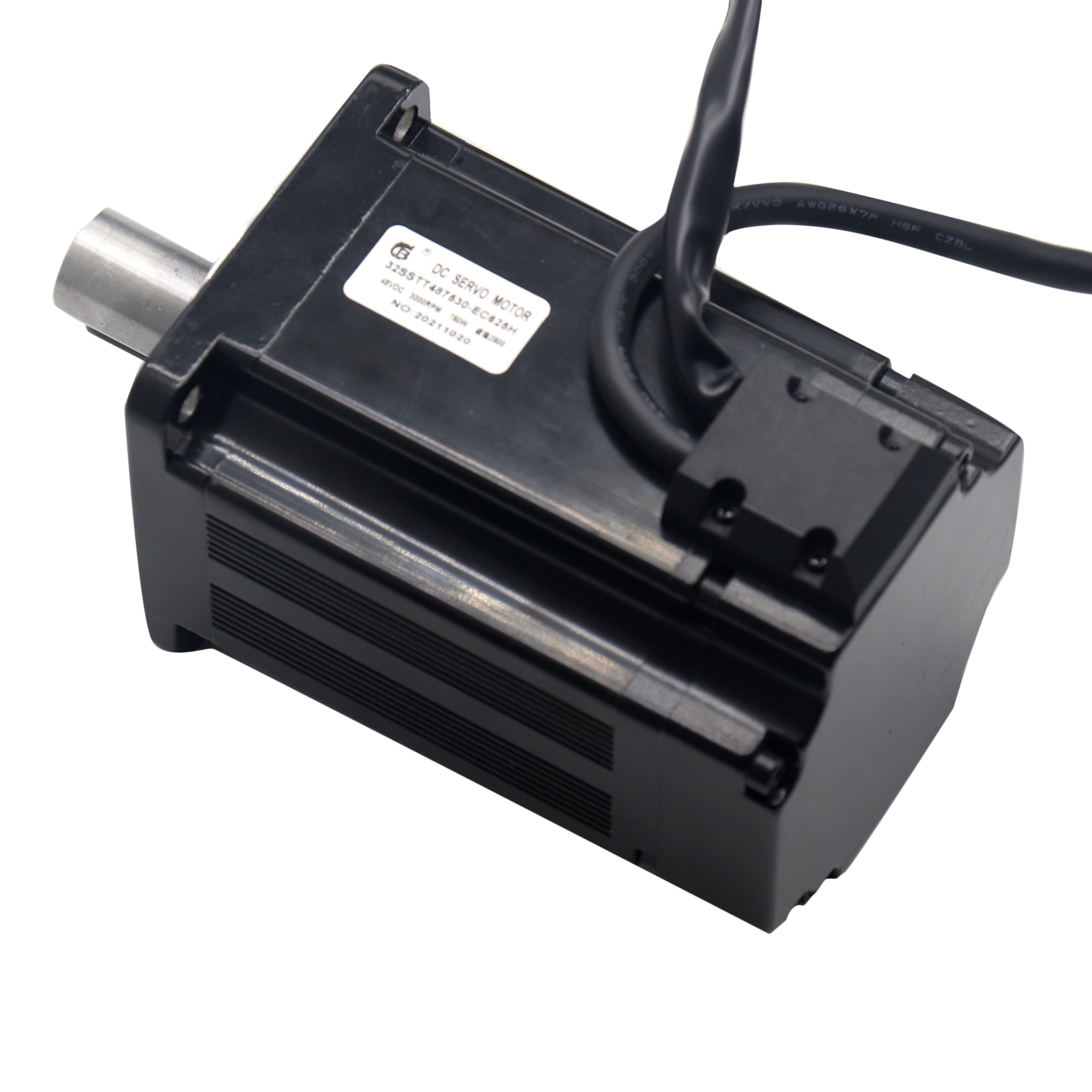

Robot Servo Motor 80 mm 48v 750w with brake and absolutely encoder
for robotics
Specification of Robot Servo Motor
| product name | AGV servo motor |
| Voltage | 48v |
| absolutely encoder | 17 bits |
| Rated speed | 3000rpm |
| Power | 750w |
| Feature | greatly reduced and the operation is smoothly |
Product description of Robot Servo Motor
Easy for speed & direction adjustment Robot Servo Motor EBS80F-750C-30T2H5Z-BEEL-ST-00 series are designed to working with servo drive, adopts absolutely
encoder 17 bits, suitable for indoor and outdoor situation, easy to
install, and our servo motor widely use for Logistics sorting,
medical instruments, 3C equipment, packaging, etc. Strong stability
for driver/controller
Products features of Robot Servo Motor
1. Highly integrated design reduces installation complexity and
saves space · Eliminate the matching process between the driver and
the motor, reducing the cost of use
2. Adopt EtherCAT/CANopen protocol Wide voltage input (24v~80VDC)
3. Optional off brake protection
4. Integrated single-turn absolute encoder, limited zero memory
5. Provide speed and position feedforward parameter configuration
to improve response speed
6. Integrated I/O, can be set to positive limit, negative limit,
origin, multi-function digital output, pulse input detection
7. Real-time fault monitoring and protection functions, including
overcurrent, overload, overvoltage, undervoltage,
overheating,overspeed, and out of tolerance protection
8. Provide application scenarios and development kit support for
multiple scenarios, shortening user development cycle
Advantages of Robot Servo Motor
① The motor winding protects the power supply from short circuit
② Motor winding inter-phase short circuit protection
③ Encoder disconnection protection
④ Over-voltage protection
⑤ Over-current protection
Applications of Robot Servo Motor
- AGV servo motor
- Logistics sorting
- medical instruments
- 3C equipment
Notice for Usage:
1). Please don't use motor out of the range of nameplate of gear
box and motor and the specification of product catalogue, avoiding
getting an electric shock, hurting or damaging the device.
2). Please do not put your fingers and things into the opening part
of gear or motor ,in order to prevent getting and electric
shock,hurting,catching a fire of damaging device etc.
3). Please do not use the Injured gear head of motor, in order to
prevent hurting,catching a fire etc.
4). Please do not put off the nameplate.
5). If the products are reformed by the customers personally, it no
longer belongs to the guarantee scope, and our company doesn’t
undertake any responsibility.
6). When you move it, if it shed off or tilt to one side, it is
very dangerous, please pay more attention.
7). Please must not put the flammable thing near the gear head and
motor, in order to prevent catching a
fire.
FAQ
Q1. What are your products can be use to ?
A: Our products can be used in packaging machine, AGV machine, Logistics sorting
machine, medical instruments machine and so on.
Q2. What kind of Payment methods do you accept ?
A: We can accept Paypal ,TT, Money Gram
Q3: What kind of shipping methods do you use ?
A:1) For samples or small batch , air shipping is recommended .
(DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking
No. Once we get it after we ship out the products.
2)For mass production or big batch, ocean shipping/sea shipment is
recommended.
Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK . For
mass production , the lead time depend on the quantities you need .
Note: Sometimes your local customs may charge tax from you. then
you should pay it to get the package, sometimes not have.The exact
delivery time is delayed on the post office and customs, we can't
control it. If the product is delayed, pls pay more patience to
wait and ask us to extend delivery dates for you.
Q5: What is your warranty time ?
A: Warranty time : 12 months. And we provide life-long technical
service and after-sale service.
Q6: Can i get a free sample?
A: Sorry, we don’t provide free sample.
