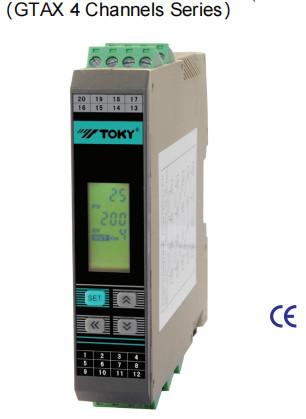

GTAX series PID temperature controller 0.5%FS RS485 AC/DC 100~240V
IEC61010-1
1. Features and advantages of GTAX digital temperature controller:
a). High accuracy.
b). Multi input signal and multi models for option.
c). 4loops output control.
d). Have measurement display, control output, alarm output, analog
output, RS485 communication function, and etc.
e). Multi PID algorithms for option, with auto tune function.
f) Widely used in industrial machinery, machine tools, general
measuring instruments and equipment.
g). Surge immunity standard:IEC61000-4-5
h). Pulse trainanti-interference standard:IEC61000-4-4
i). ESD:IEC61000-4-2
j). Safety Standard:IEC61010-1
2. Model specification and order information:
3. Technical specification:
Electrical parameter:
| Sample rate | 1 times per second per channel |
| Power supply | AC/DC 100～240V (85-265V) or AC/DC 24V |
| Power consumption | ＜6VA |
| Environment | Temperature of indoor:0～50℃ no condensation,
Humidity:＜85%RH,altitude<2000m |
| Storage environment | -10～60℃, no condensation |
| SSR output | DC 24V pulse level, load<20mA |
| Current output | DC 24V 100mA per channel |
| Communication port | RS485 port, Modbus-RTU procotol |
| Insulation impedance | Input, output, power cabinet＞20MΩ |
| ESD | IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B |
| Pulse traip anti-interference | IEC/EN61000-4-4 ±2KV perf.CriGTEria B |
| Surge immunity | IEC/EN61000-4-5 ±2KV perf.CriGTEria B |
| Voltage drop & short interruption immunity | IEC/EN61000-4-29 0%～70% perf.CriGTEria B |
| Dielectric strength | Signal input & output & power 1500VAC 1min,below 60V
Low voltage circuit between DC500V, 1min |
| Total weight | About 400g |
| Shell material | PA66-FR (Flame Class UL94V-0) |
| Panel material | PVC film and PEM silicone key |
| Power-off data protection | 10 years , times of writing: 1 million times |
| Safety Standard | IEC61010-1 Overvoltage category Ⅱ,pollution level 2
level Ⅱ(Enhanced insulation) |

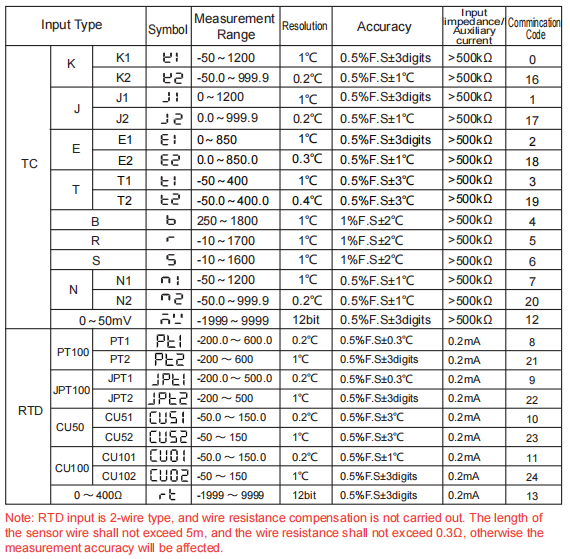

Measuring signal specifications:

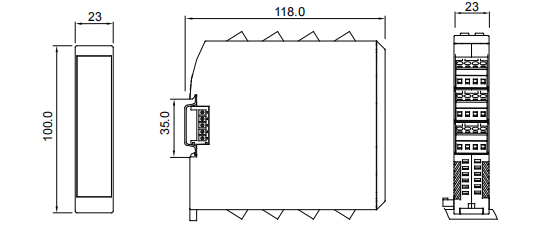

4. Dimention:
5. Connections:
6. Contact:
