SS304 Stainless Steel Brazed Plate Heat Exchanger BPHE Water To Water

Corrosion proof SS316/304 brazed plate heat exchanger manufacturers

brazed plate heat exchanger Introduction

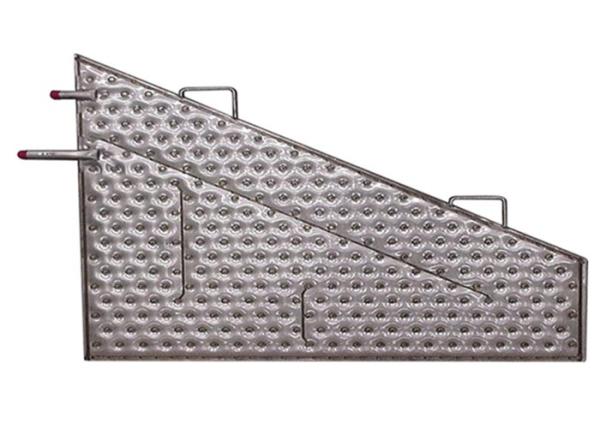

Pillow Plate is in 2types single and double embossed, welded with fiber laser, it is widely used in heating/cooling/evaporation/condensation field which are necessary adapted in heat excahngers, tanks as milk, beer, wine storage, fermentation, falling film chillers, jacket vessels, evaporator plates, building roof, ice room etc.

Pillow plate can have working pressures from -0.5 bar to 250 bar in different applications, it can be made in SS304,SS316L, TA2 and Hastelloy.

What is processing?

Rolled Plate → Spread → Laser welding → Embossed → Finished

brazed plate heat exchanger Specification

brazed plate heat exchanger Feature

1. Suitable for various media: steam, water, oil, etc.

2. Fully welded, no gasket design, no leakage, high working pressure, high working temperature,

3. Special sharp, working pressure, size can be customized

4. Wide flow channel design, the medium can efficiently transfer heat through the flow channel

5. The advantage of double embossed pillow plate is turbulence, improve the heat transfer efficiency than traditional jacket

6. Easy to install in the outer wall of the storage tank and equipment

7. Modular design, compact equipment, small footprint, easy installation, cleaning and maintenance

8. It can meet the requirements of pharmaceutical and food-grade environmental use condition

Types

• Ice bank
• Evaporator, Condenser
• Jacketed tank
• Conical head jacket
• Falling film chiller
• Plate heat recovery group
• Heat exchanger module
• Gas heat recovery plate group
• Immersion heating and cooling
• Special heat exchanger

brazed plate heat exchanger Applications

• Black liquor
• Juice
• Milk
• Vacuum salt production line
• Beer fermentation

Pictures

Supply Scope

100000m2 pillow plate heat exchanger can be provided each months.
