QU70 QU80 Rail Port Container Crane Automated Stacking Container Unloading Crane

Span 5 ~ 8 Container Widths Port Container Crane For Container Unloading , Handling And Stacking

Description:

Rail-mounted gantry cranes or RMG cranes are often used for fast, safe and automated handling of containers. With high performance, reliability, low operating costs and low energy consumption, the crane plays a key role in facilitating yard operations. Gantry cranes can be designed in a variety of capacities and sizes to suit different container capacities. The span of the crane is designed according to the number of rows of containers that need to be traversed.

The container gantry crane is a large quay gantry crane that loads and unloads intermodal containers at the container terminal. It spans 5~8 containers wide (plus truck width) and lifts from 1 over 3 to 1 over 6 containers high.

Container gantry cranes consist of a gantry structure that can traverse the length of a quay or yard on rails. The container gantry crane is not an ordinary hook, but is equipped with a special container spreader, which will be lowered to the top of the container to lock the four corner castings of the container.

Advanced Design:

Generally, the crane is suitable for yard stacking of containers with 3-4 layers and 6 rows wide. It can be designed and manufactured to meet your individual needs in a variety of different stacking heights and spans.

The power supply can be cable reels or slip line to reduce your operating costs and be energy-efficient.

The container crane is designed with remote and automatic control, which ensures a safe and more efficient operation.

The number of wheels and drive mechanisms can be customized according to your specific application.

All in all, backed by professional engineers, we can tailor the gantry crane to meet each and every requirement of customers.

Specification:

Rail mounted container gantry crane drawing:

• 1.Crane power supply system

• 2.Trolley power supply system

• 3.Main girder

• 4.Trolley assembly

• 5.Ton board

• 6. Handrail

• 7. Electrical box

• 8.Rail clamping device

• 9.Bogie

• 10.Anchor

• 11.Maintenance crane

• 12.Anemoscope & lightning conductor

Application:

RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.

Crane Detail:

Rubber tyre container gantry crane

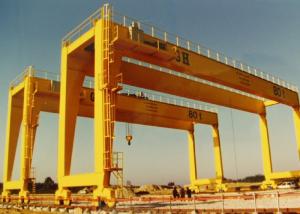

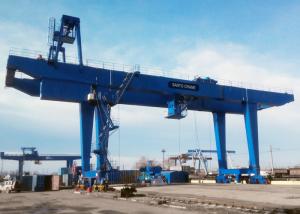

Rail Mounted Container Gantry Cranes
