    125kg To 1000kg Straight Curved Rail Mounted Crane For Material Transportation

    Ask Lasest Price
    Brand Name : SANTO
    Model Number : KBK-D, KBK-LD, KBK-LS, KBK-LSS, KBK-DZX, KBK-BZX, KBK-MD, KBK-MS, KBK-DT, KBK-JS
    Certification : ISO, CE
    Price : USD2000-10000/set
    Payment Terms : L/C, T/T
    Supply Ability : 5000set/year
    Delivery Time : 15-30 working days
    • Product Details
    • Company Profile

    125kg To 1000kg Straight Curved Rail Mounted Crane For Material Transportation

    Straight Track And Curved Track KBK Crane With Electric Hoist For Material Transportation


    Description:


    KBK rail cranes are widely used in the field of material transportation at present. Below we briefly introduce the basic advantages and use characteristics of KBK rail cranes.
    Since KBK rail cranes make full use of the free space above the work surface and production line, valuable floor space is left for other production activities.
    KBK standard components are designed and manufactured in accordance with the concept of standardization and modularization, with flexibility, reliable system performance, flexible operation, and simple and convenient installation.
    Because each component is produced in standardized modules, the installation of each component is convenient and flexible. The splicing and debugging of the track can be completed in a short time, so the short investment time is also one of its advantages.


    KBK Flexible Double Girder Suspension Crane Features:


    ■ Higher Lifting Height

    Because the lifting hoist is suspended on the small frame between the two KBK main beams, the kbk double girder crane can provide higher lifting space than the kbk single girder crane.


    ■ Larger Span

    KBK flexible double-beam suspension crane can be multi-track suspension, thus achieving a large span to cover a larger storage and production area, the crane can easily move by hand, but when the crane track span exceeds 6m and the crane load exceeds 500kg, it is recommended to use an electric friction wheel to drive the walking scheme. The maximum span can reach 9 meters. The lifting weight is from 125kg to 2000kg.


    ■ Good Reliability, High Stability

    The components of the crane system are all standard modules, which can ensure large-volume, high-quality production, so the system is very reliable. The main body of the system module is three kinds of cold-rolled profiles, high strength, good rigidity and light weight, ensuring the system stability.


    ■ Strong Adaptability

    Flexible design and installation according to the needs of each station in the factory. From fixed-point delivery to high-accuracy multi-point, multi-beat automated conveyor lines, they can be combined at will. It can be used in newly designed workshops and can also be used for system retrofits and extensions.


    ■ Easy to Install, Cost-effective

    The installation and commissioning of the kbk double-girder crane is very convenient. The profiles and the standard modules can be used only by bolt connection, which can save space and area of the factory, thereby reducing energy consumption and improving enterprise efficiency. The system can be operated manually or automatically and semi-automatically.


    KBK Crane Specification:


    KBK-LD Type Single Girder Workstation Suspension Crane

    Capacity
    (kg)
    Dimension
    (mm)

    125

    250

    500

    1000

    L

    9000

    8000

    7000

    4000

    LK

    8500

    7500

    6500

    3500

    L2

    95

    95

    95

    220

    L3

    645

    585

    525

    470

    B

    190

    190

    190

    460

    H

    808

    898

    948

    1071

    h

    335

    335

    335

    349

    We can customised design according to customers' requirements.


    Structure And Composition:


    KBK is mainly composed of tracks, suspension devices, walking trolleys, lifting devices and some functional components. All modules are standard components and can be freely assembled according to the needs of the workshop.

    The track is a closed track, with straight track and curved track, divided into Ω type or C type, and the materials commonly used are steel, aluminum alloy and carbon steel. Because it is a standard component, it can be assembled into any structure such as long and short single track, multi-track, curved track or circular track.

    The suspension device is generally installed on the lower edge of the I-beam/H-beam or on the concrete beam. It has a certain self-locking function and is easy and reliable to install.

    The walking trolley is hung in the track, which is used to walk in the X and Y axis directions. It can be used as a manual or electric trolley as needed.

    The lifting device is generally an electric hoist, an electric chain hoist, a pneumatic balancer, and an intelligent hoist is used in conjunction with a spreader.

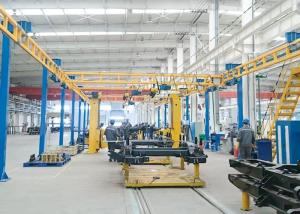

    Detail Photos:





    Quality 125kg To 1000kg Straight Curved Rail Mounted Crane For Material Transportation for sale
