Pure Drinkable Water Reverse Osmosis Purifying Machine

    Buy cheap Pure Drinkable Water Reverse Osmosis Purifying Machine from wholesalers

    Buy cheap Pure Drinkable Water Reverse Osmosis Purifying Machine from wholesalers
    • Buy cheap Pure Drinkable Water Reverse Osmosis Purifying Machine from wholesalers

    Pure Drinkable Water Reverse Osmosis Purifying Machine

    Ask Lasest Price
    Brand Name : FillPack
    Model Number : RO-2000
    Certification : CE,ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 50 sets/month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Pure Drinkable Water Reverse Osmosis Purifying Machine

    Pure Drinking / Drinkable Water RO/ Reverse Osmosis Purifying Equipment / Plant / Machine / System / Line

    Working process of water ro system:

    1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
    2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
    3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
    4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
    5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
    6. High pressure pump-- Provide the high pressure to RO membrane ro.
    7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

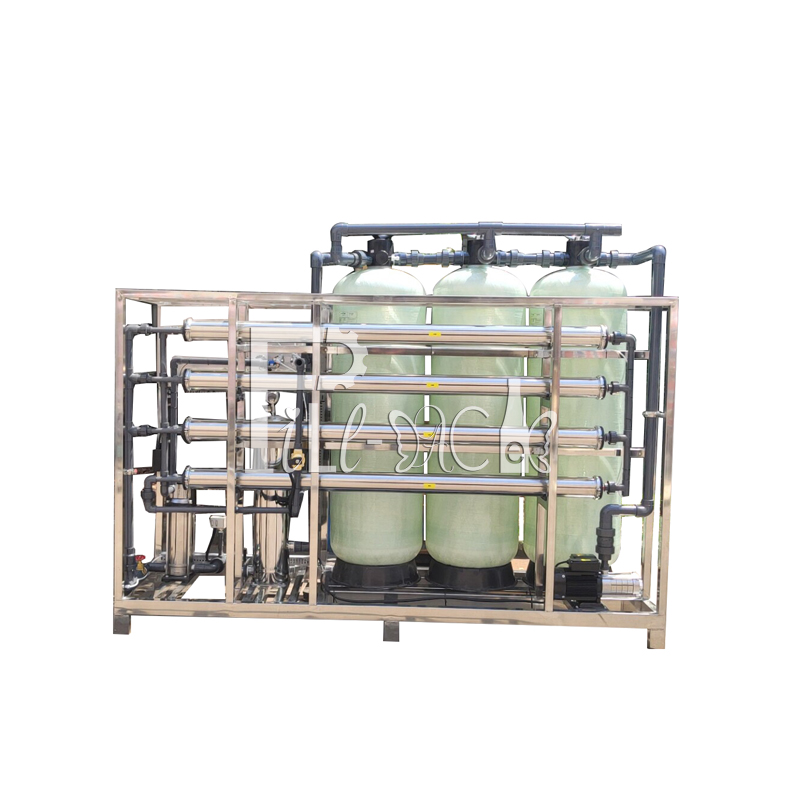

    2000LPH monoblock RO system
    Parameters
    Items
    Name
    Specifications and model
    Material
    Brand&Origin
    Unit
    Qty.
    I
    Raw water lifting unit
    1
    Level controller
    ST-70AB
    assembly
    PRADAR
    suit
    1
    2
    Raw water pump
    CDL4-12/2.2kw
    SUS304
    NanFang
    set
    1
    II

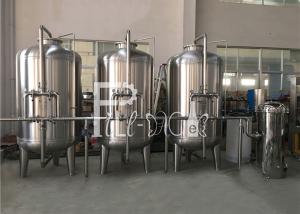

    Multimedium filter
    assembly
    FILLPACK
    1
    Multimedium filter tank
    Φ500*1700MM
    FRP
    FILLPACK
    set
    1
    2
    Central tube, Up and below distribution
    Matching
    ABS
    RUNXIN
    suit
    1
    3
    Manual operation valve
    TMF56D
    assembly
    RUNXIN
    set
    1
    4
    Quartz sand
    NO. 1-4, Filling height 1000mm
    assembly
    NingBo
    KG
    300
    III
    Active carbon filter
    assembly
    FILLPACK
    1
    Filter tank
    Φ500*1700MM
    FRP
    FILLPACK
    set
    1
    2
    Central tube, Up and below distribution
    Matching
    ABS
    RUNXIN
    suit
    1
    3
    Manual operation valve
    TMF56D
    assembly
    RUNXIN
    set
    1
    4
    Activated Carbon
    10-24MU
    Shell
    Chengde
    kg
    100
    IV
    Cartridge filter
    assembly
    FILLPACK
    1
    Cartridge filter
    30INCH *5
    SUS304
    FILLPACK
    suit
    1
    2
    PP cotton
    30INCH / 5 um
    polypropylene
    FILLPACK
    pcs
    5
    5
    Pressure gauge
    0-0.1MPa
    SUS304
    YYST
    pcs
    1
    VI
    RO system
    1
    High pressure pump
    CDL4-12/2.2kw
    SUS304
    NANFANG
    set
    1
    2
    RO pressure vessel
    4040*2
    SUS304
    BONA
    pcs
    4
    3
    RO membrane
    4040-HR
    polyamide
    LANXING
    pcs
    8
    4
    Water inlet solenoid valve
    DN32/AC220V
    BRASS
    YONGCHUAN
    pc
    1
    5
    Washing solenoid valve
    DN25/AC220V
    BRASS
    YONGCHUAN
    pc
    1
    6
    Pressure gauge
    0-0.6MP/0-3MPA
    SUS304
    YYST
    pcs
    4
    7
    High low pressure switch
    0.1-3MPA
    SUS304
    BD
    pcs
    1
    8
    Conductivity meter for produced water
    CCT3320
    assembly
    CREATEC
    suit
    1
    9
    Flowmeter for produced water
    Rotor type 20G
    acrylic
    YYST
    pcs
    1
    10
    Flowmeter for salinity water
    Rotor type 20G
    acrylic
    YYST
    pcs
    1
    11
    Main frame of RO
    L2700*W800*H1600MM
    SUS304
    FILLPACK
    suit
    1
    VII
    Connecting pipe
    1
    Tubing/fittings/valves
    DN32/DN25/DN20, etc
    UPVC/GB
    XieYu/China
    suit
    1
    VIII
    Pure water tank
    1
    Level controller
    ST-70AB
    assembly
    PRADAR
    suit
    1
    IX
    Electrical system
    1
    control cabinet
    BD-4.0
    SUS304
    FILLPACK
    suit
    1
    2
    Programmer
    CCT3320
    matching
    CREATEC
    suit
    1
    3
    Air switch
    Matching
    assembly
    CHNT
    suit
    1
    4
    AC contactor
    suit
    2
    5
    Thermal relay
    suit
    2
    6
    Intermediate relay
    suit
    1
    7
    Button / switch
    suit
    1
    8
    wire
    suit
    1
    9
    accessories
    suit
    1

    ★What kind of water source do you use for filtering?

    River water
    Lake water
    Underground water
    Tap water

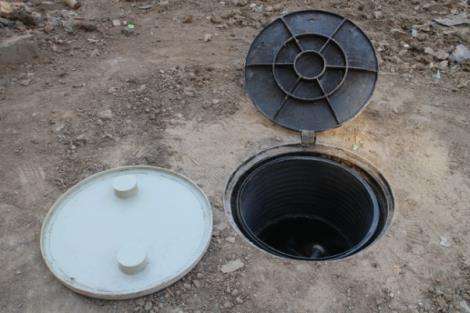

    Well water
    salty water
    Consumables
    Ion exchange resin
    It can replace calcium and magnesium ions in the water to soften the hard water

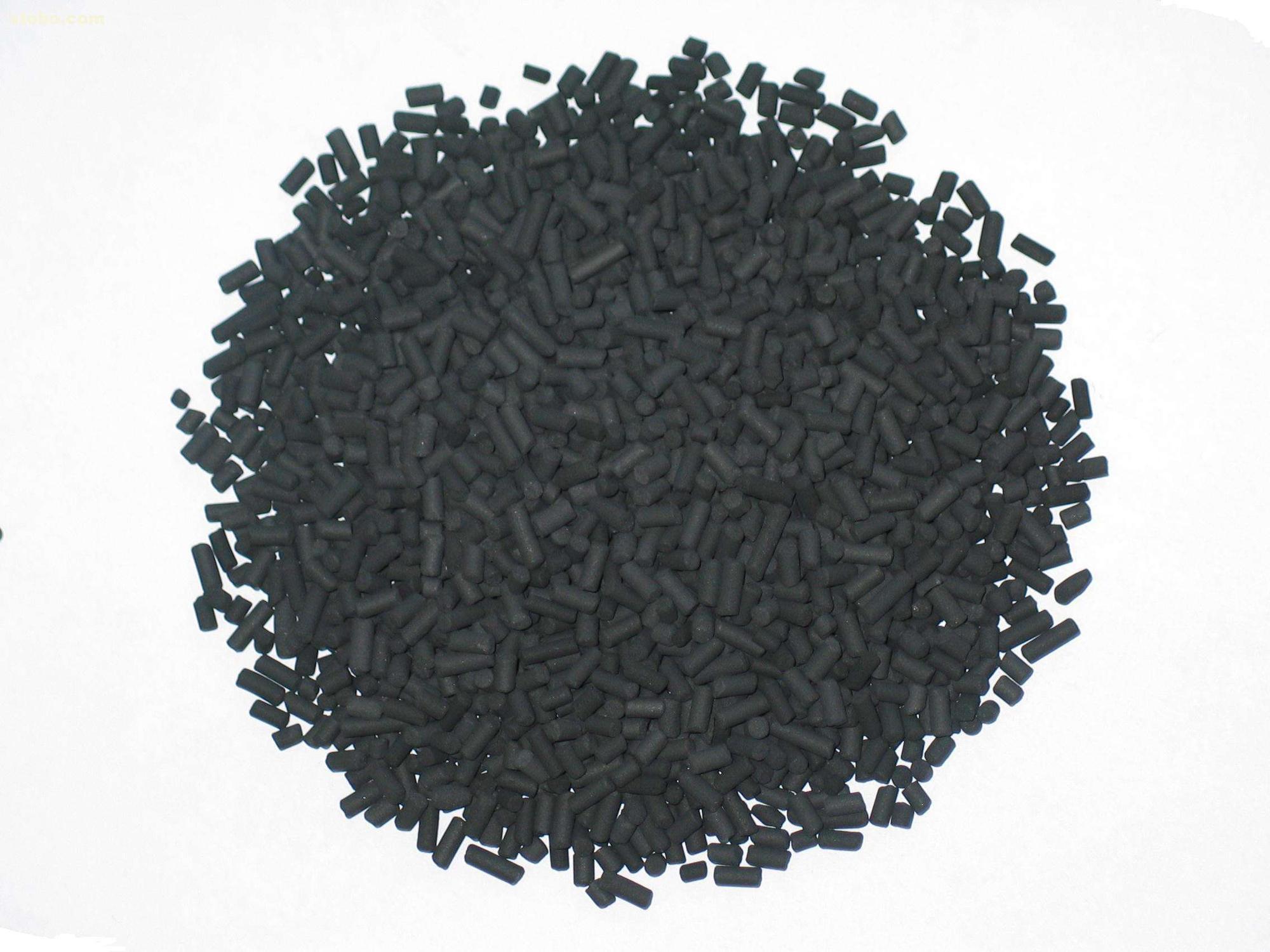

    Activated Carbon
    It can further filter impurities in water and remove residual chlorine and odor

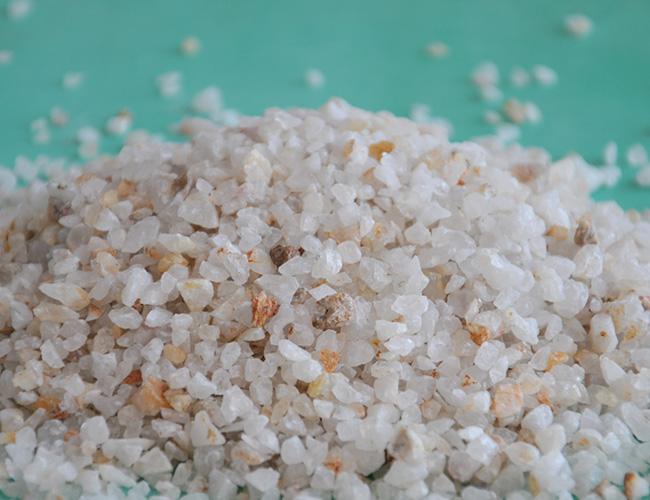

    Quartz sand
    It can remove large particles of impurities in water
    Connecting tube
    Stainless steel material, can be connected to the various parts of water treatment

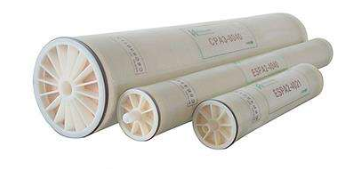

    RO membrane
    RO membrane pore size is small to nanometer scale, under certain pressure, water molecules can pass through the RO membrane, while
    impurities such as inorganic salts, heavy metal ions, organics, colloids, bacteria, viruses in source water can not pass through
    the RO membrane, so that the permeable pure water and the permeable concentrated water can be distinguished strictly.

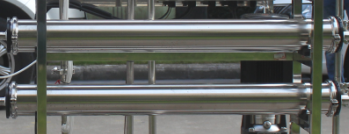

    SUS RO filter shell
    It has good corrosion resistance, heat resistance, low temperature strength and mechanical properties. It has good hot working properties such as stamping and bending, no heat treatment hardening and no magnetism
