    97% High Precision WIM Scales Vehicle Overload Identification Truck Weigh In Motion

    Ask Lasest Price
    Brand Name : Hengliang
    Model Number : ZQS-40-SY
    Certification : ISO
    Price : USD 20000-35000/SET
    Payment Terms : T/T
    Supply Ability : 30 SET/Month
    Delivery Time : 5~7days
    • Product Details
    • Company Profile

    97% High Precision WIM Scales Vehicle Overload Identification Truck Weigh In Motion

    High Precision Vehicle Overload Identification System & WIM Scales

    Product Function

    The core component of the system is the quartz weighing sensor, which is based on the piezoelectric principle. The measurement process does not depend on deformation or elastomer. The whole sensor is a completely rigid structure with a response time of μ Class s (strain is MS), so there is no influence and error caused by high and low speed in application, which can meet the needs of high-speed weighing and measurement.​

    Product Parameters

    Weighing accuracy90%~97%
    Single axle load40Ton
    Max Load60Ton
    Speed0.5~105km/h;
    Speed error≤±1km/h
    Wheelbase error≤±100mm
    Working voltageAC 220V 50Hz
    Output informationSpeed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
    Maximum number of lanes8 lanes
    Data storageIt can store up to 10000 pieces of vehicle information data
    data interfaceRJ485
    work environment-45℃~80℃,0~95%
    Confidence≥95%

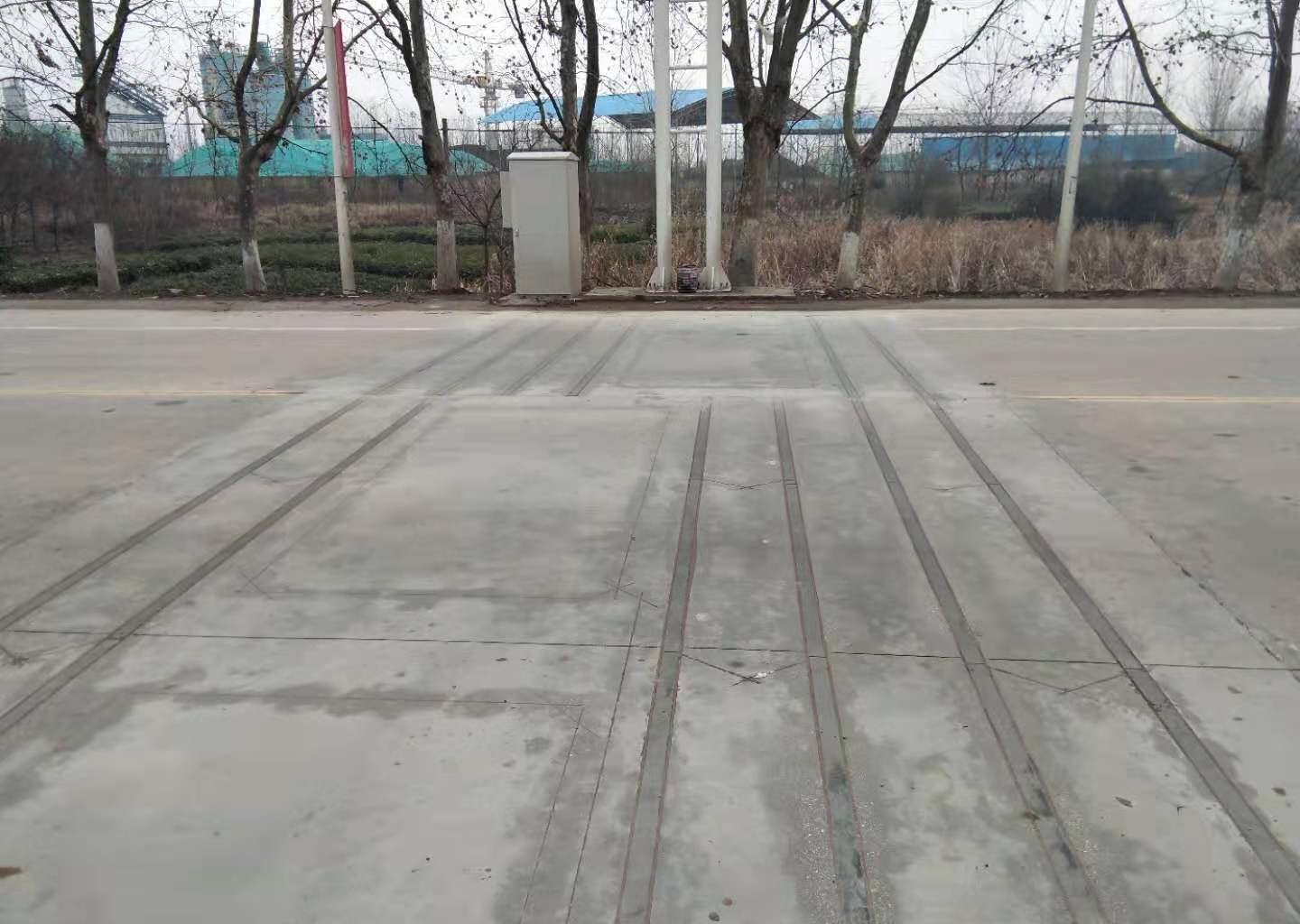

    Project Case
