MC CN101A Din rail 1 minute 12V 24V 36V 48V 110V 220V LCD display
Weekly programmable timer TIME SWITCH
Specification
| Rated Voltage | 12v /24v /110v /220v |
| Contact Capacity: | 16A |
| Power consumption: | no more than 2w |
| Internal battery: | 1.2V/40mA (rechargeable batteries) |
| Dimensions: | 62x62x32.5mm |
| Power failure memory: | 180days |
| Operate Temperature: | -10 to +40 C |
ZhiNengDuo time SettingsFrom the control time to control mode, more
processing chip, control more powerful.
Can be set up group number172
Long can control time168 small
Short can control time1 minute
Power failure memory functionReset back to make electricity,
humanized design more convenient
Strong quality accessoriesIntelligent control chip, high precision,
strong anti-interference ability
Eight microcomputer control chip, when eight microprocessor control
chip, using the fixed on the PCB encapsulation technology, stable
performance, strong resistance to electromagnetic interference.
16 a relay16 a power relay, safer and more stable enough load.
Built-in rechargeable batteryHigh quality button rechargeable
battery, power off data storage for 60 days, no need to reset
Strong load capacity to secure
Resistive load 3500W (220V) direct consumption of electrical energy
equipment, such as: electric furnace, electric rice, induction
cooker
Inductive load 850 w (220 v) starting current larger devices, for
example, air conditioning refrigerator washing machine
Inductive load 850 w (220 v) starting current larger devices, for
example, air conditioning refrigerator washing machine
Light load 1200 w (220 v)
The wiring diagram
Their electrical
The line of fireThe zero line
Need to answer the "power" to work
1. timer, power does not work, the built-in battery only save
Settings of time data.
2. the timer to control the single wire on and off to achieve
control electric appliances through the effect of power.The
shopkeeper explain the common points, many buyers wrong: the
"switch" two lines connected wire, one end of the power supply wire
access, pick out at one end to the electric wire, not the zero
line. Is equivalent to the original receives electrical wire cut,
then put two beheaded received a "switch" online. Controlled
electrical zero line switch, received the "power" of the zero line.
3. The timer has no pressure, can not enter the 220 v, output other
voltage. But the "switch" can meet other active voltage circuit,
including signal can control the telephone line.
The product set mode
The time calibration: Long press the "clock "at the same time,
according to "week" "" "points "to adjust.
The first step: Click on the "time" button, display the lower left
corner• in the word "1 o" (open time) for the first time. Again,
respectively, according to "week" "" "points "button, enter the
required time.
The second step: Click on the "time" button, display the lower left
corner, in the words "1" (closed) for the first time.
Again,respectively, according to "week" "" "points "button,enter
the required closing time.
Step 3: Continue to press "time" button, display the lower left
corner will display in turn (2) 20.. 170. 17 ry), refer to the
first step and the second set after the switch of all time.If you
set it only once and off, you must press the "cancel/restore" key,
will cancel the set behind the time.
Press the "Timing" button and then the "Week" button to set the
timing on and off in 15 weekly modes.

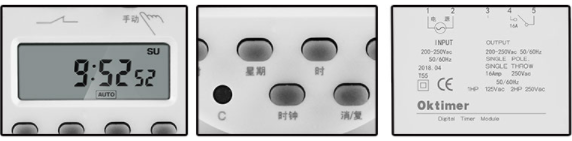

Details
LED displayMore accurate data
Soft rubber type buttonOperation more convenient
Clear the wiring diagramUse a more clear
Accessories:
