T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V

    Buy cheap T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V from wholesalers

    Buy cheap T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V from wholesalers
    • Buy cheap T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V from wholesalers
    • Buy cheap T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V from wholesalers

    T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V

    Ask Lasest Price
    Brand Name : BRITEC
    Model Number : BR-7M 275 4P
    Payment Terms : T/T
    Supply Ability : 50000 pieces per month
    Delivery Time : 15-30 days after payment
    • Product Details
    • Company Profile

    T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V


    T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester 275V Surge Protective Device


    T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester Overview:
    • Model Number: BR-7M 4P
    • Class I & II combined surge protection device
    • Product name: surge protection device, surge arrester, spd
    • Compact DIN rail mount for easy install in the field
    • Max-Discharge Current: 275V
    • Visual Indication of fault
    • Discharge Current: 7KA
    • Volt-free contacts for remote indication
    • Protection Level Up:≤1.3KV
    • 2 year no-quibble warranty
    • Pole: 4P
    • 3 Phase protection device
    • Operating temperature: -40ºC~+80ºC
    • Used to protect LV power installations against effects of surges occurring during lightning strikes and induced or switching surges
    • Certificate: IEC


    T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester Characteristics:


    BR-7M 275 4P
    SPD classification according to EN 61643-11Type 1 + Type 2
    SPD classification according to IEC 61643-11Class I + Class II
    Max. continuous operating a.c. voltage Uc275V
    Lightning impluse current (10/350us) Iimp7kA
    Nominal discharge current (8/20us) (L-N / N-PE) In20kA
    Max. discharge current (8/20us) (L-N / N-PE) Imax50kA
    Voltage protection level (L-N / N-PE) Up≤1.3kV
    Response time (L-N / N-PE) tA≤25ns
    Operating temperature range Tu-40℃—80℃
    Operating state / fault indicationgreen / red
    Cross-section area (Min.)4mm2
    Cross-section area (Max.)35mm2
    For mounting on35mm Din rail
    Protection degreeIP20
    Enclosure materialThermal plastic UL94-V0

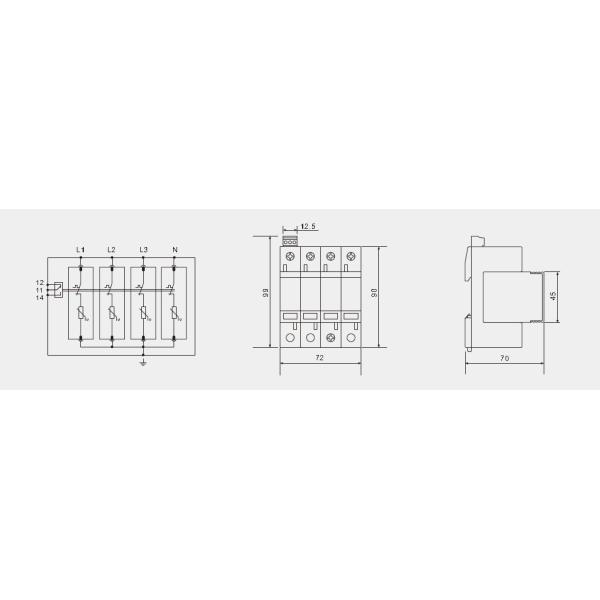

    Dimension:



    T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester Features:
    • Designed for installations in TN-S grids.
    • The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
    • Compliance with standards: IEC61643-11, EN61643-11
    • High arresting capacity up to 7 kA (10/350μs)
    • These type 1+2 surge arresters are designed to protect low voltage installations against partial, direct and indirect atmospheric discharges.
    • Visual status display
    • Arresters provide protection in the 0A-1 zone in accordance with EN62305 standard.
    When to use lightning arresters?
    Lightning arresters are designed to prevent lightning or high surges ruin your valued equipment. It can be used in protecting the likes of: Energy supplies, Building installation equipment, Telecommunications, Wind power, Machine-building, Datacenters.
    Factory:




    Our certifications:



    Logistics & payment:



    FAQ:

    Q1: Are you the manufacturer factory or trading company?
    A: We are the manufacturer with professional produce experience on SPD more than 17years.

    Q2: Where is your factory located?
    A: Our factory is located in Yueqing city, Zhejiang Province, China.

    Q3: How long is the delivery time? What's your fast delivery time?
    A: According to quantity, it would be 20days after comfimation of payment.

    Q4: How to agent yours products?
    A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

    Q5: How should I pay for my order ? what is the procession of this purchase?
    A: You can do 30% prepayment at first, then we will start to make production. When the goods is ready, we will take pictures to you, and then you can do the ballance. After we got your payment. We will send the goods to you.
