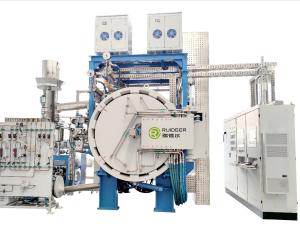

    Functional High Temperature Vacuum Furnace 10bar - 100bar For Heat Treatment

    Ask Lasest Price
    Brand Name : Ruideer
    Model Number : Customizable
    Certification : CE certificate, GB150, JB4732
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 7 sets/month
    Delivery Time : 5-8 months
    • Product Details
    • Company Profile

    Functional High Temperature Vacuum Furnace 10bar - 100bar For Heat Treatment

    Best Heating Uniformity with Functional and Safe System Control For Heat Treatment


    Technical parameters


    Valid working space

    Customizable

    Max working pressure

    10bar-100bar

    Cooling time (full load)

    Cooling time for sintering Temperature

    1450℃~100℃: 7-8h

    (Empty furnace, water temperature≤26℃, 9.5bar≤pressure≤9.8bar)

    Max.loading weight

    The load capacity depends on the product type

    Service life for furnace shell

    20 years

    Operating times for furnace shell

    6000 furnaces

    Max. Design Temperature

    1600℃

    Max. Working Temperature

    1580℃

    Pumping speed

    The vacuum degree can reach 5Pa within 30min after starting the pump. After reaching 5Pa and then pumping for 60min, the ultimate vacuum value reaches 1Pa (within a cold, empty and clean furnace that has been dried before).

    Leakage rate

    ≤3Pa/h (stop the pump group operation and start checking after testing the limit vacuum (within a cold, empty and clean furnace that has been dried before).

    Wax yield rate

    ≥98%(10kg pure paraffin, argon negative pressure dewaxing. Measured by three times of mean values at most).

    UPS guarantee time

    It can power the indicator light and control the furnace during power outage for more than 80 minutes.

    Max.heating rate

    8℃/min (the room temperature rises to 1580℃ within a vacuum and empty furnace. 600℃, 1000℃, 1200℃ half-way insulation is allowed).
