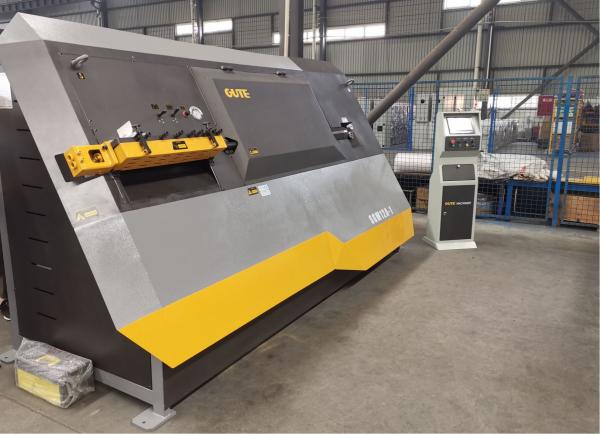

    GUTE CNC Steel Bar Stirrup Bending Machine PLC Control Wire Straightening

    Ask Lasest Price
    Brand Name : GUTE
    Model Number : SGW12A-1
    Certification : CE,ISO 9001:2000
    Price : 15000-19000USD/SET
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 200set/month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    GUTE CNC Steel Bar Stirrup Bending Machine PLC Control Wire Straightening

    PLC Control 12mm Cnc Steel Bar Stirrup Bending Machine Steel Wire Straightening
    01

    Overview

     1. IKO bearings imported from Japan are used in key parts to ensure
    service life. 2. Can provide overseas engineer installation service. 2. Capacity for 1600pcs/h stirrups and each batch can be yield up to 8tons.
    02

    Finished products

    03

    Device parameters

    Single wire bending diameter5–12mm
    Rebar double wire bending diameter5–8mm
    Maximum towing speed

    100 m/min

    Maximum bending speed

    1050°/sec

    Rib straightness error0.02/1m
    Total power31KW
    Power consumption5KW/H
    Stirrup length accuracy±1mm
    Rib length accuracy±5mm
    Maximum bending angle±180°
    Longest stirrup side900mm
    Shortest stirrup side140mm
    Total Weight1.5T
    04

    Equipment advantages

    • Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance.
    • Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.


    • Equipped with 16KW high-power servo motor to ensure the smooth operation of tractio.


    • The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

    • The touch screen console can store hundreds of graphics and is easy to operate.
