PIC16F1825T-I/ST PIC series Microcontroller IC Microchip FLASH 14-TSSOP

PIC16F1825T-I/ST PIC series Microcontroller IC Microchip FLASH 14-TSSOP

Related :PIC12(L)F1840 PIC12(L)F1822 PIC16(L)F1823 PIC16(L)F1824 PIC16(L)F1826 PIC16(L)F1827

PIC16(L)F1828 PIC16(L)F1829 PIC16(L)F1847

PIC series Microcontroller IC 8-Bit 32MHz 14KB (8K x 14) FLASH 14-TSSOP IC Specification:

Description(Datasheet):

High-Performance RISC CPU • Only 49 Instructions to Learn: - All single-cycle instructions except branches

• Operating Speed: - DC – 32 MHz oscillator/clock input - DC – 125 ns instruction cycle

• Up to 16 Kbytes Linear Program Memory Addressing • Up to 1024 bytes Linear Data Memory Addressing

• Interrupt Capability with Automatic Context Saving

• 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset

• Direct, Indirect and Relative Addressing modes: - Two full 16-bit File Select Registers (FSRs) - FSRs can read program and data memory Flexible Oscillator Structure • Precision 32 MHz Internal Oscillator Block: - Factory calibrated to ± 1%, typical - Software selectable frequencies range of 31 kHz to 32 MHz • 31 kHz Low-Power Internal Oscillator • Four Crystal modes up to 32 MHz

• Three External Clock modes up to 32 MHz • 4x Phase Lock Loop (PLL)

• Fail-Safe Clock Monitor: - Allows for safe shutdown if peripheral clock stops

• Two-Speed Oscillator Start-Up

• Reference Clock Module: - Programmable clock output frequency and duty cycle Special Microcontroller Features

• 1.8V-5.5V Operation – PIC16F1825/9

• 1.8V-3.6V Operation – PIC16LF1825/9

• Self-Programmable under Software Control

• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Programmable Brown-out Reset (BOR) • Extended Watchdog Timer (WDT)

• In-Circuit Serial Programming™ (ICSP™) via Two Pins • In-Circuit Debug (ICD) via Two Pins

• Enhanced Low-Voltage Programming (LVP) • Programmable Code Protection

• Power-Saving Sleep mode

Extreme Low-Power Management PIC16LF1825/9 with XLP • Sleep mode: 20 nA @ 1.8V, typical

• Watchdog Timer: 300 nA @ 1.8V, typical • Timer1 Oscillator: 650 nA @ 32 kHz, 1.8V, typical

• Operating Current: 48 µA/MHz @ 1.8V, typical Analog Features

• Analog-to-Digital Converter (ADC) Module: - 10-bit resolution,

up to 12 channels - Auto acquisition capability - Conversion available during Sleep

• Analog Comparator Module: - Two rail-to-rail analog comparators - Power mode control - Software controllable hysteresis

• Voltage Reference Module: - Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels - 5-bit rail-to-rail resistive DAC with positive and negative reference selection Peripheral Highlights

• Up to 17 I/O Pins and 1 Input Only Pin: - High current sink/source 25 mA/25 mA - Programmable weak pull-ups - Programmable interrupt-on-change pins

• Timer0: 8-Bit Timer/Counter with 8-Bit Prescaler • Enhanced Timer1: - 16-bit timer/counter with prescaler - External Gate Input mode - Dedicated, low-power 32 kHz oscillator driver

• Three Timer2-types: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler

• Two Capture, Compare, PWM (CCP) Modules

• Two Enhanced CCP (ECCP) Modules: - Software selectable time bases - Auto-shutdown and auto-restart - PWM steering

• Up to Two Master Synchronous Serial Port (MSSP) with SPI and I2CTM with: - 7-bit address masking - SMBus/PMBusTM compatibility

• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) Module

• mTouch™ Sensing Oscillator Module: - Up to 12 input channels

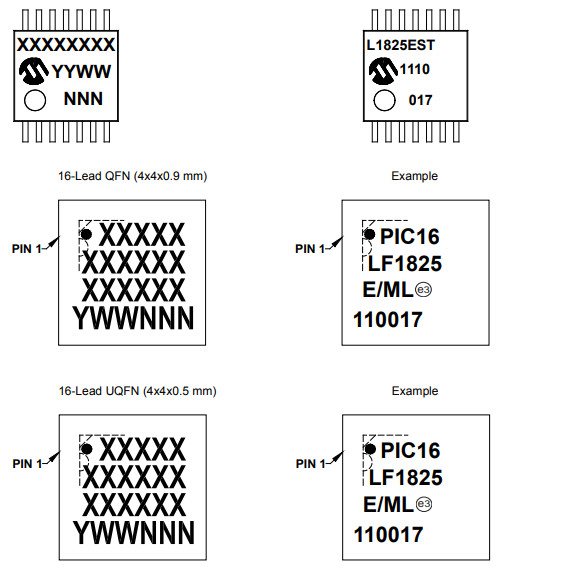

14/20-Pin Flash Microcontrollers with XLP Technology microcontroller IC Marking information:
