Applications
The high-density new-generation data center realizes the connection
and deployment of jumpers and pigtails between equipment and
distribution frames.
Adapter panel
The adapter panel provides fast and effective connection interface
management for MPO/MTP or LC/SC connectors, which can realize
MPO/MTP connector connection or LC/SC connection management.
Features
High-density port management, a single adapter panel can be
configured with 12 LC adapter ports, 6 sc adapter ports, and 6
MPO/MTP adapter ports
Flexible structure, adaptor port configuration can be selected
flexibly;
Snap-in installation, convenient for construction,
Strict testing to ensure quality;
·Easy to upgrade to 40/100c network without changing the fiber
management architecture.
Our black Fiber Adapter Plates can be ordered individually or
preinstalled into select RLH fiber optic patch panels.
RLH black Adapter plates utilize a common installation mounting
format, typically referred to as a LGX foot print, so they may be
mixed and matched as needed in compatible wall or rack mount patch
panels. This provides maximum flexibility when populating a patch
panel with fiber adapters.
Our black Fiber adapter plates are compatible with all RLH fiber
patch panels (see note below) except for the Optimum Series. Since
our adapter plates utilize a common format we are also compatible
with many other vendor patch panels who support the common LGX Foot
print type adapter plates.
*RLH patch panels will take either our black series or grey series
Fiber Adapter Plates. Please check the individual product page to
verify which series of plates is compatible.
*Not compatible with our RLH Optimum Series patch panels.
(1) Blank adapter board, black
(2) ST 6 fiber 6 position, with single mode adapter (yellow cover)
(3) ST 12 optical fiber 12 position, with single mode adapter
(yellow cap)
(4) ST 6 fiber 6 position, with simplex multimode adapter (black
cover)
(5) ST 12 fiber 12 position, with simplex multimode adapter (black
cover)
(6) SC 6 fiber 6 position, with single mode adapter (blue)
(7) SC 12 fiber 6 position, with duplex single-mode adapter (blue)
(8) SC6 fiber 6 position, install and cut simplex multi-mode
adapter (beige)
(9) SC 12 optical fiber 6 position loaded duplex multi-mode adapter
(beige)
(10) SC 6 fiber 6 position, with simplex single mode adapter
(green)
(11) SC 12 fiber 6 position, with duplex single-mode adapter
(green)
(12) SC6 fiber 6 position, with simplex multimode adapter (water
green)
(13) SC 12 light 6 position, with duplex multi-mode adapter (water
green)
(14) LC 6 fiber 3 position, with duplex single-mode adapter (blue)
(15) LC 12 fiber 6 position, with duplex mode adapter (blue)
(16) LC 24 fiber 6 channels, with four channels, single mode
adapter (blue)
(17) LC 6 fiber 3 position, with duplex multimode adapter (beige)
(18) LC 12 6 position, with duplex multi-mode adapter (beige)
(19) LC 24 fiber 6 channels, with four channels multimode adapter
(beige)
(20) LC6 fiber 3 position, with duplex single-mode adapter (green)
(21) LC 12 fiber 6 position, with duplex single-mode adapter
(green)
(22) LC 24 fiber 6 channels, with four-channel single-mode adapter
(green)
(23) LC 6 fiber 3 position, with duplex multimode adapter (water
green)
(24) LC 12 fiber 6 position, with duplex multimode adapter (water
green)
(25) LC 24 fiber 6 channels, with four-channel multi-mode adapter
(Aqua)
(26) FC 6 fiber 6 position, with single mode adapter (yellow cap)
(27) FC 6 fiber 6 position, with simplex multimode adapter (black
cover)
(28) FC 6 fiber 6 position, with single mode adapter (green cap)

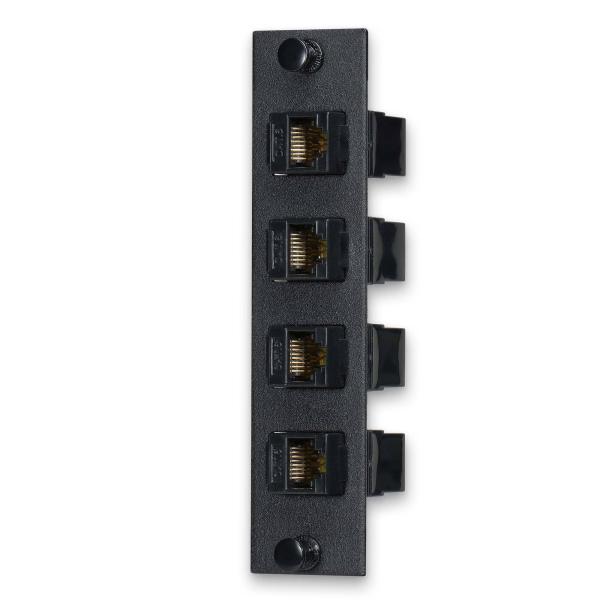

(29) RU-45 4-position adapter board with CAT6 coupler trapezoid
(30) RJ-45 4-position adapter board, equipped with CAT6) punched
trapezoid
