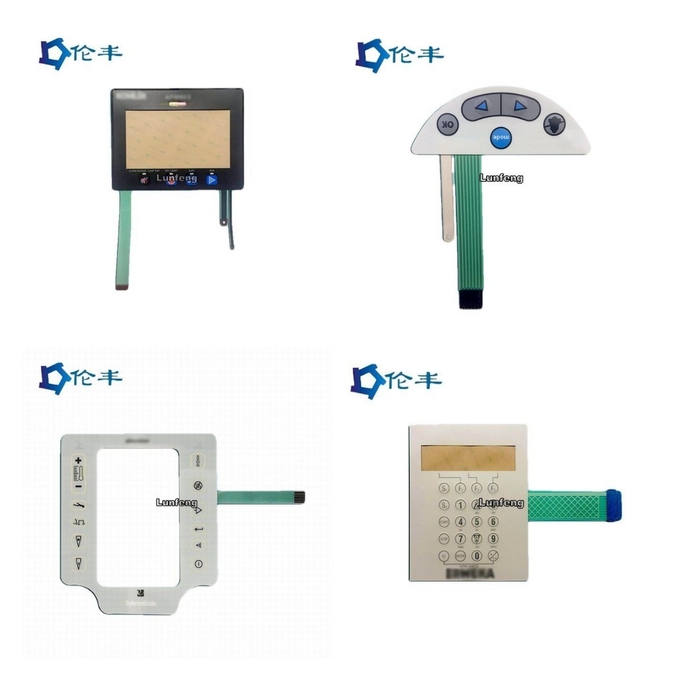

Waterproof Membrane Switch with LCD and embossed keypad
High-performance Membrane Keypad
1. Beautiful appearance, rich and bright in color, design can be
arbitrary.
The products can fully reflect the individual style of the product
itself and designer.
2. Panel can wash, good protection of durable color, characters,
logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility,
abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof,
anti-oil, anti-corrosion and erosion of harmful gases proof, acid
and alkali proof, quakeproof.
5. Low cost, high lifespan, membrane switches design and
manufacture are using the keyboard as a whole way, whether on the
material or mold charges, the costs are lowest, the life expectancy
of different types of membrane switch is more than 100 million
times.
6. Easy to operate, intuitive, safe and reliable, In-house 100%
functionally tested, components are guaranteed without any
intermittent problem.
7. Customized specification is available and keys can make
different shapes.
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm
|
1.Electrical Properties | Membrane Switch |
Electrical Level: | 35V(DC), 100mA,1W |
Contact Resistance: | 10Ω~500 Ω |
Insulation Resistance: | 100MΩ/100V |
Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) |
Chattering Time: | ≤ 5ms |
Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
Tail Folding: | R>1,180 |
|
|
2.Mechanical Properties |
|
Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
|
|
3.Environmental and Storage Conditions |
|
Operation Temperature: | -40°C ~ +80°C |
Storage Temperature: | -40°C ~ +80°C |
Humidity: | 40°C, 90%~95%, 240 hours
|
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay
manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never
manufacture membrane switch/ graphic overlay for someone else
without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without
file?
A : Yes, we can clone membrane switch/ graphic overlay according to
your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX,
TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs
for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia,
Singapore...
