    Global Network 2 way OBD 4G GPS Tracker With Harsh Braking Alarm

    Ask Lasest Price
    Brand Name : Topshine(Support OEM/ODM)
    Model Number : MT100-4G
    Certification : ce, RoHS
    Supply Ability : 100000 Piece/ per Month
    Price : $85.00/Pieces
    Payment Terms : T/T, Western Union, MoneyGram,paypal
    Delivery Time : 1-8 work days
    • Product Details
    • Company Profile

    Global Network 2 way OBD 4G GPS Tracker With Harsh Braking Alarm

    4G GPS tracker MT100 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 9V~90V, therefore can satisfy tracking and security demands for all kinds of vehicles.

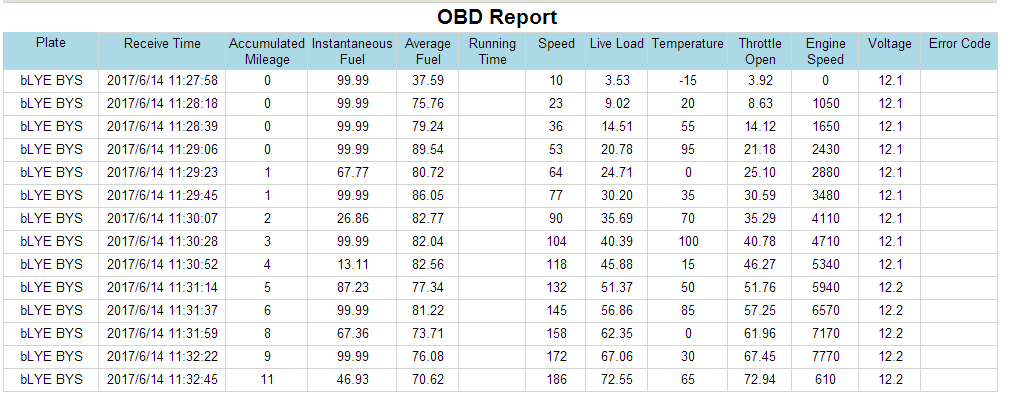

    It can work with OBD connector to diagnonsis vehicle data and generate one OBD report on the free GPS tracking platform.
    Explanation of Nouns
    1. Accumulated Mileage(km): After installed OBDII, car ran across the mileage

    2. Instantaneous Fuel(L/H): Car one moment of fuel consumption
    3. Average Fuel (L): When the car on the road every hundred kilometers average fuel consumption

    4. Running time(S): From car engine on to car engine off, car ran across time.

    5. Speed (km/h): Car speed

    6. Live Load: At constant engine speed, its performance index, along with the change of load in must keep the speed constant when the load characteristic is measured.

    7. Temperature(℃): Coolant Temperature

    8. Throttle Open: The engine throttle opening Angle. By the driver through accelerating car engine throttle pedal to manipulate, to change the volume of the engine, to control the operation of the engine. Different throttle opening marks a different engine operating condition

    9. Engine Speed: High and low engine speed, work is related to the unit time the number of how many or the size of the engine's effective power, namely the effective power of the engine with engine speed and change

    10. Voltage: The car battery voltage
    11. Error Code: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)
    Product Name
    4G GPS tracker MT100
    Dimension
    80* 58* 22MM
    Weight
    92G
    Input voltage
    DC 9V~36V/1.5A
    Back-up Battery
    450mAh/3.7V
    Power Consumption
    65mA standby current
    Memory
    4M Byte data logger
    CPU
    ARM9 high speed micro-controller
    Operating Temperature
    -40°C~75°C
    Humidity
    5%~95%
    LED
    2 LED lights to show GPS, GSM status
    Button
    1 SOS and 1 power on/off
    4G GSM frequency
    LTE FDD: B1/B3/B5/B7/B8/B20
    LTE TDD: B38/B40/B41
    WCDMA: B1/B5/B8
    GSM: B3/B8
    GPS Sensitivity
    -160dBm
    Positioning Accuracy
    5meters, CEP
    I/O
    3 Input, 2 Output, 1 Analog input
    (Support cutomize more input/output/analog)


    Features
    * Tracking by SMS/GPRS (TCP/UDP)
    * Tracking by time/distance interval
    * OTA Function
    * Real time tracking via the web-platform
    * Get position location via call/SMS
    * Engine on/off detection
    * Built-in backup 450mAh battery
    * Remote Engine cut off to stop the car in safe condition
    * ARM9 high speed micro-controller
    * Get location physical name via SMS & from the web-platform
    * Google Map link for location via SMS, it shows your location on map via mobile phone.
    * Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
    * Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
    * Built-in 4MB memory & position logging capacity up to 26,000+ way-points even no GPRS signal
    * I/O: 3 Inputs, 2 Outputs, 1 Analog Input, 1 RS232 port
    Alerts & optional features
    * Over speed alert
    * Geo-fence alert
    * Engine on alert (Optional)
    * Power failure/low power alert (Optional)
    * SOS Panic button, SOS alert (optional)
    * Harsh braking and harsh acceleration alarm
    * Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
    * Accident alarm (need crash sensor support) (optional)
    * Two way communication (Speaker and microphone) (Optional)
    * RS232 Port Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
    * Analog input for Fuel sensor detecting/monitoring (optional)
    * Customize output4 wire (optional)
    * Customize input5 wire for detecting Air condition ON or OFF..etc, it is positive trigger (optional)
    * Customize second Analog port (like detecting second fuel tank)(optional)
    * Customize dual serial port that can support RFID reader and temperature sensor (or OBDII connector) at the same time(optional)
    * Detecting the voltage of car battery (optional)
    Product Usage

    Standard accessories
    1 main unit 4G MT100
    1 wiring
    1 12v/24v relay
    1 SOS button
    1 built in battery
    • Optional accessories

    Ultrasonic fuel sensor
    Cuttable fuel sensor
    OBDii connector
    Passive RFID reader & tag
    Temperature sensor
    Crash sensor
    Speed limiter
    Microphone
    Speaker
    Siren
    Configure USB cable
    GPS Tracking Platform
    Topshine company provide free tracking platform to clients, no any monthly or yearly charge.
    Web: www.track-car.com

    Mobile link: www.track-car.com/m

    Usernam: officetest

    Password: 123
    Our Service
    1. Any inquiries will be replied within 12 hours on workday.

    2. Professional manuafacurer and wholesaler for 10 years.

    3. OEM available:
    * Customized logo or color box
    * We can help you to design and put it into production about your idear

    4. After-sale service:
    * All products will have been strictly Quality checked in workshop before packing
    * All our products have 24 mouths warranty, and we are sure our products will be free from maintenance

    5. Shipping way: DHL/UPS/Aramex/fedex/air transportation/sea transportation

    6. Fast delivery: Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order

    7. Payment: T/T , Western Union, Paypal and RMB
