DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket

Name: DH48SS1Z2Z1ZRepeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
Brand: kampa
Price: 3.00 USD

Ask Lasest Price
Brand Name :	kampa
Model Number :	DH48S-S
Supply Ability :	10000 Piece/Pieces per Month
Price :	$3.00 - $5.00/Pieces

Add to Cart

Product Details
Company Profile

DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket

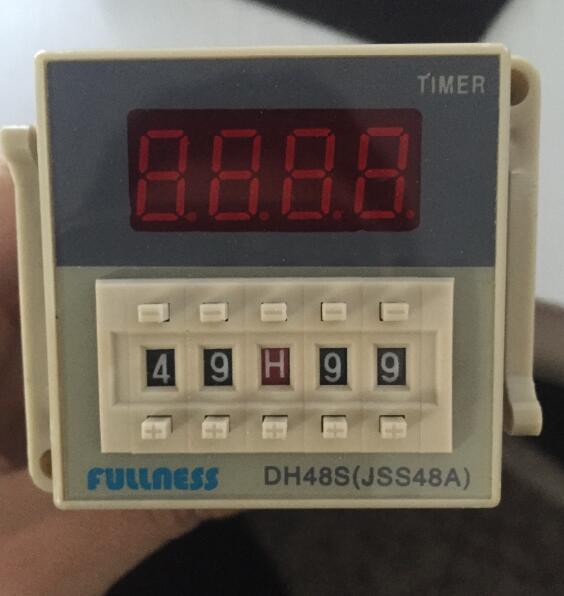

DH48S series digital time relay

finglaiContact form and delay time

Model number	Product name	Contact form	Delay time	Related product
DH48S-1Z	Time relay	On-delay SPDT	1m-99h99m; 1s-99m99s; 0.01s-99.99s	Visiting...
DH48S-2Z	Time relay	On-delay DPDT	1m-99h99m; 1s-99m99s; 0.01s-99.99s	Order
DH48S-2ZH	Time relay	On-delay SPDT with SPDT instantaneous	1m-99h99m; 1s-99m99s; 0.01s-99.99s	Order

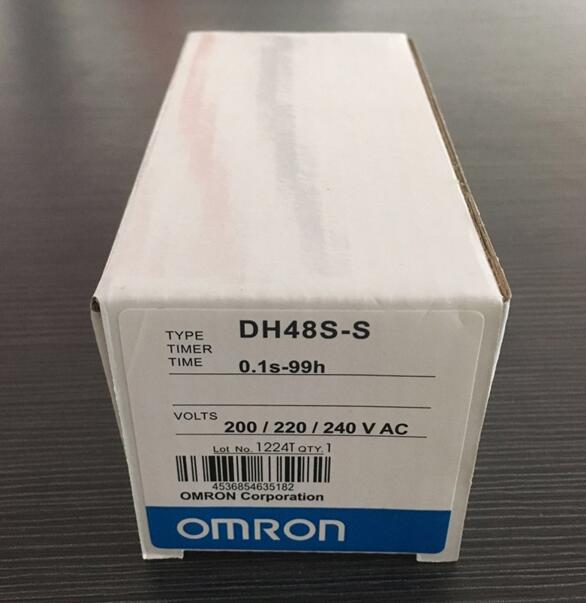

DH48S-S	Time relay	Repeat cycle SPDT	0.1s-99h	Order
DH48S-S-2Z	Time relay	Repeat cycle DPDT	0.1s-99h	Order

finglaiGeneral

Model number	DH48S
Supply voltage	36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc
Tolerance	-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption	2W max
Setting method	Dial switch
Indication method	8-segment 4-digital display
External dimensions	48x48x97.4 mm
Perforate dimensions	45 ¹₀x45 ¹₀ mm
Contact rating	3A@250Vac, 5A@28Vdc
Repeat accuracy	±0.3%, ±0.05 sec
Setting error	±0.5%, ±0.05 sec
Termination	8 pins
Mounting	Panel, din rail
Matched socket	PF083A, PF083A-E
Mechanical life	1x10⁶
Electrical life	1x10⁵
Operating temperature	0 to 50 °C (32 to 122 °F)
Operating humidity	95% RH max, non-condensing
Alias name	DH48S digital timer
