ATDV-Y AC220V Repeat Cycle On/Off Programmable Double Timer Relay

Name: ATDVY AC220V Repeat Cycle OnOff Programmable Double Timer Relay
Brand: kampa
Price: 2.30 USD

Ask Lasest Price
Brand Name :	kampa
Model Number :	ATDV-Y
Supply Ability :	100 Piece/Pieces per Month
Price :	$2.30 - $4.60/Pieces

Add to Cart

Product Details
Company Profile

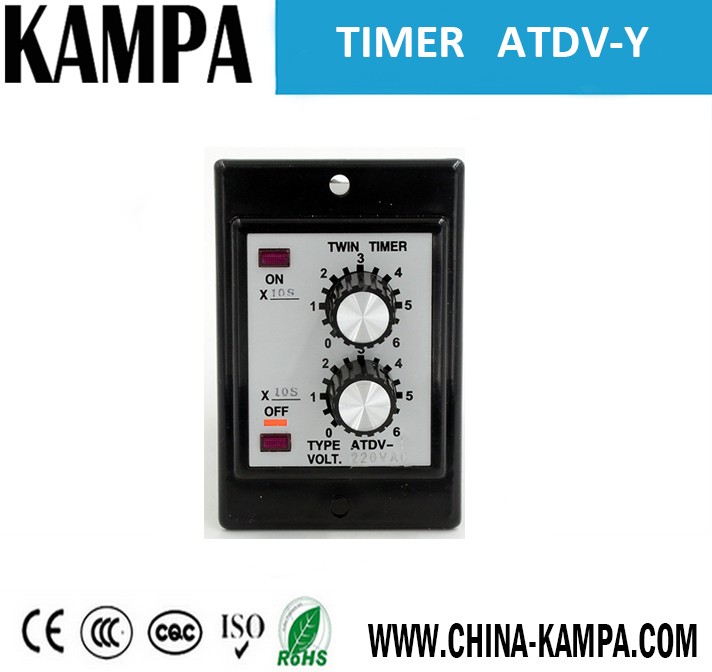

ATDV-Y AC220V Repeat Cycle On/Off Programmable Double Timer Relay

ATDV-Y AC220V Repeat Cycle On/Off Programmable Double Timer Relay

1.Pictures of H3Y timer relay

2.Specifications

Classification	Multi Range Timer	Twin Timer	Twin Timer
Sepecification Model	AH2-N/Y	ATDV-N	ATDV-Y
Dimension	61H×48W×70D 88H×58W×68D	61H×48W×70D	88H58W68D
Mountin&Socket	Surface(-N)	PC2F-08 PS-08	PF083A
Mountin&Socket	Flush(-Y)	PF083A	US-08 P3G-08
Full Timing Range	A: 1S,10S,1M,10M B: 3S,30S,3M,30M C: 6S,60S,6M,60M D: 1M,10M,1H,10H E: 3M,30M,3H,30H	6S×6S,6S×60S, 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request	6S×6S,6S×60S, 30S×30S, 30S×60S 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
Rated Voltage (V)	AC: 12,24,110,220, 240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating	ON-UP Two Indicator Lamp	ON,OFF Operating	ON,OFF Operating
O/P Contact	Model	AH2-N/AH2-Y	ATDV-N	ATDV-Y
	Time limit 1C	5A	5A	5A
	Time limit 2c
	Instantaneous 1c	5A
Life	Mechanical	5×106 Times	5×106 Times	5×106 Times
Life	Electrical	105 Times	105 Time	105 Times
Accuracy	Repeat Error	±1% max	±1% max	±2% max
	Setting Error	±10% max	±10% max	±20% max
	Voltage Error	±1% max	±1% max	±1% max
	Temp Error	±2% max	±2% max	±2% max
Reset Time		0.1 sec max	0.2 sec max	0.2 sec max
Consumed Power		3VA	3VA	3VA
Ambient temperature		-10oC~+55oC	-10oC~+55oC	-10oC~+55oC
Ambient Huminity		48~85% RH	48~85% RH	48~85% RH
Weight		220g	160g	210g
