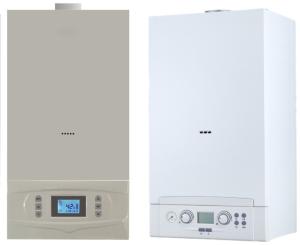

Low Noise Wall Hung Combi Gas Boiler 24KW For Outdoor Explosion
Protection
PRODUCT DESCRIPTION
- With design of stable wind resistance, and the boiler works
stably even in bad weather.
- With function of intelligent program, the time to on and off
within one week can be set beforehand freely.
- The dark gray and steel wire drawing control board with elegance.
- With special device of explosion protection to protect the
boilers.
- With silent technology, and running voice is lower than national
standard.
- The creative button design of butterfly's shape with simplicity.
- With huge LCD diaplay and all working condition is clear.
- With selectable device of huge volume water tank to safety
variety of requests for hot water.
TECHNICAL DATA
| Model Number | L1PB20 | L1PB24 |
| Gas Type | NG/LPG |
| Rated Gas Pressure(Pa) | 2000/2800 |
| Rated Gas Input(kw) | 20 | 24 |
| Rated Gas Output(kw) | 17.6 | 21.1 |
| Efficiency Under Rated Heat Input(%) | Above88% |
| Power Supply | 20-50HZ |
| Electric Power(W) | 110 | 110 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 |
| Heating Area(㎡) | 80-160 | 100-200 |
| Lift Of pump(m) | 5 | 5 |
| Application Water Pressure(Mpa) | 0.1-0.3 |
| Expansion Tank Capacity(L) | 6 | 6 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 |
| Water Circulation Type | Airtight Forced Circulation |
| △T=25℃ Hot Water Supply(kg/min) | 10 | 12 |
| △T=30℃ Hot Water Supply(kg/min) | 8.3 | 10 |
| Temp.Range Of DHW Supply(℃) | 30-60 |
| Applicative Water Pressure(mpa) | 0.03-0.8 |
| The Minimum Starting Flow (L/min) | 2 |
| The Minimum Closed Flow(L/min) | 1.6 |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 |
| Air Input/Exhaust Duct(mm) | φ60/φ100 |
| The length Of Flue Dust(m) | 1 |
| Exhaust Type | Forced Exhaust |
| Ignition Type | Integrated Automatic Ignition |
| Temperature Control | Gas Proportional Adjustment
|
COMPANY PROFILE
ABOUT US
In order to meet the demand of heating market, Foshan Shunde
Dongyuan gas appliances Ind. Co.,Ltd as a professional wall hung
gas boiler , gas water heater manufacturer was established in 2007
and start to develop the overseas market from 2010 , and recognized
as “ China High-tech enterprise” in 2017. We move to the new

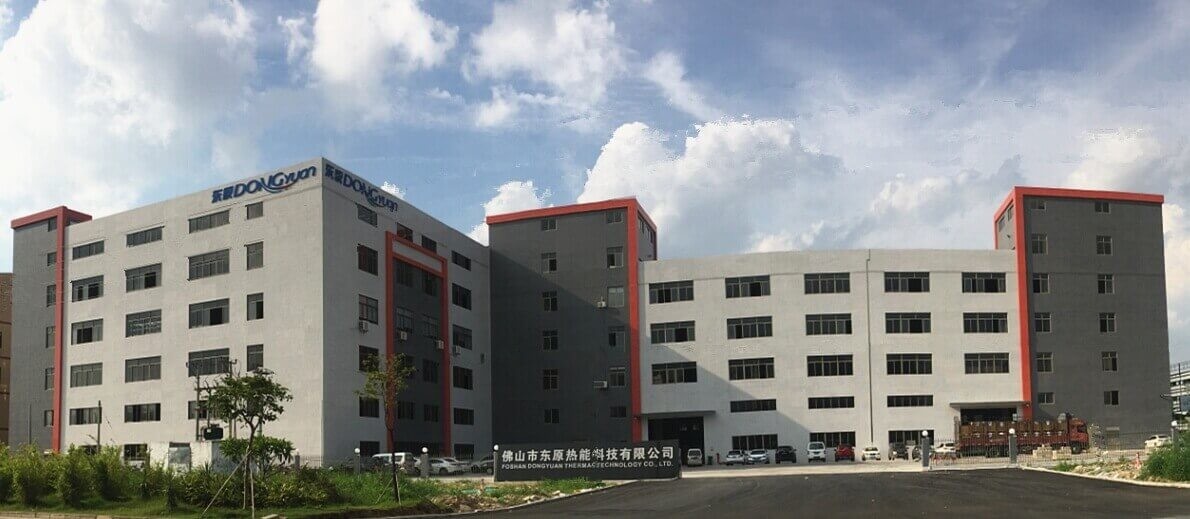

factory in 2018, and named Foshan Dongyuan Thermal Technology Co.,
Ltd.
With an area of 14,000 square meters, Foshan Dongyuan Thermal
Technology Co., Ltd. have five fully automatic production lines
with an annual capacity of 500,000 pieces ,have 8 engineers with 26
years R&D experiences . With the powerful and skillful work
team, rigid production and quality control ,DONGYUAN success to
obtain the ISO9001, ISO14001 certificate, our boilers and water
heater hot sale well all over the world, especially in Russia,
Iran, Azerbaijan, Uzbekistan, Israel and other European,Southest
Asia and South America, etc.
From mold design and material development to precision machining
and products finishing, DONGYUAN exercises strict quality control
on each production stage, not only produce traditional wall-mounted
gas boiler, flue type and force type gas water heater , but also
develop condensing gas boiler with thermal efficiency up to 105% ,
and the balanced type gas water heater .
DONGYUAN will continue its effort to create high quality product
and serve the customers from all over the world, to earn
co-prosperity and mutual interest.
