    Custom Snapdragon ARM CPU Processing Node Unit Non Standard

    Ask Lasest Price
    Brand Name : ODM/OEM
    Model Number : ZT-ACPU-01
    Certification : CE/FCC/RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs/month
    Delivery Time : 45-75 work days
    • Product Details
    • Company Profile

    Custom Snapdragon ARM CPU Processing Node Unit Non Standard

    Custom Snapdragon ARM CPU Processing Node Unit Non Standard


    Non-standard custom Snapdragon ARM node application processing CPU unit VPN router cloud server unit node


    Product Description:

    ACPU-01 is a high-performance ARM application processing card single board, used with the ZT-P1324 platform to realize a high-performance ARM application platform solution. It has the characteristics of high performance, high integration, low power consumption, and scalability. It is suitable for multi-channel parallel data calculation, data analysis, application service and image processing application based on ARM architecture.


    Product Features:

    • 4-core Cortex-A75 CPU node clocked at 2.8GHz;
    • 4-core Cortex-A55 CPU node clocked at 1.8GHz;
    • Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
    • Built-in DHCP server, and static address assignment can be performed at the same time;
    • Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
    • Built-in firewall function, supporting domain name filtering and MAC address filtering;
    • 710MHz GPU;
    • Support dynamic DNS function, which can provide domain name service for dynamic IP address;
    • Built-in static routing function, can build special network topology according to needs;
    • Supports access control based on MAC address, which can effectively control the access rights of intranet users;
    • Single board power consumption <10 watts;

    ModelZT-ACPU-01

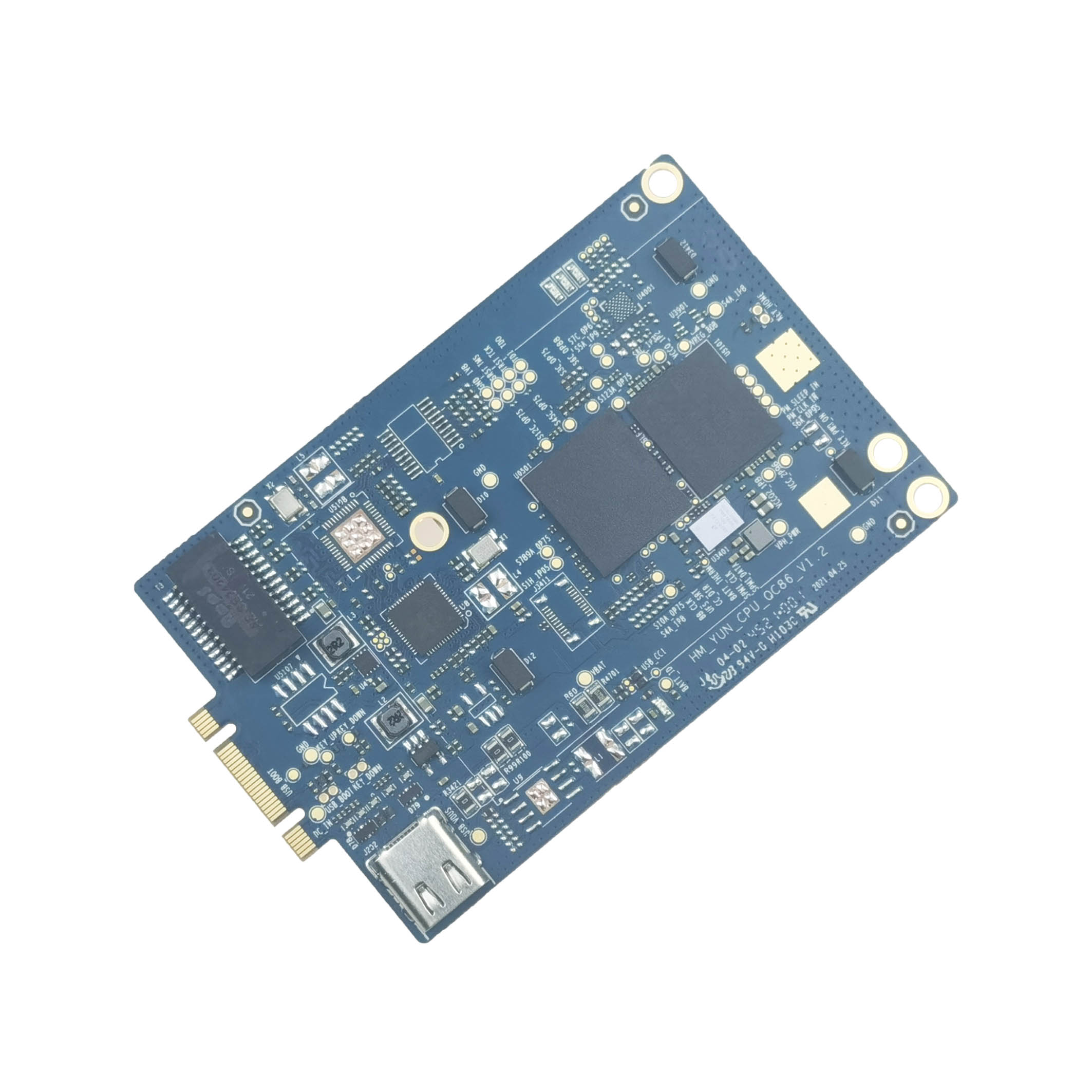

    Appearance
    Hardware specifications
    Chipset
    SPI Flash64Gbyte
    SDRam16GMbyte
    PortsMini-PCIE (integrated 1×10/100/1000M data channel)
    1×UART, 1×HDMI (optional), 1×Type C (required), 1*3Pin serial port/CN1 (optional)
    LEDPower
    ColourBlack
    Dimensions (L x W x H)50*80*20
    Net weight0.25kg
    Gross weight0.35kg
    Electrical Specifications
    Power input voltage12V 1A
    Maximum power consumption<12W
    Power plug specificationsChoose according to the destination country
    Business specifications
    Networking methodstatic IP, dynamic IP
    Port transmission rate10/100/1000M/2.5G
    WEB languageEnglsh
    Environmental specifications
    Working temperature0℃~40℃
    Working environment humidity10%~90% RH Non-condensing
    Storage temperature-10℃~70℃
    Storage environment humidity5%~90% RH Non-condensing
    Certified product
    3C certificationPassed, not certified;
    CE certificationPassed, not certified;
    FCC certificationPassed, not certified
    RoHS certificationPassed, not certified;
    Other certificationsNo;
