5 Ton 7 Ton Conductor Reel Stands With Disc Brake Of Stringing Equipment

    Buy cheap 5 Ton 7 Ton Conductor Reel Stands With Disc Brake Of Stringing Equipment from wholesalers

    Buy cheap 5 Ton 7 Ton Conductor Reel Stands With Disc Brake Of Stringing Equipment from wholesalers
    • Buy cheap 5 Ton 7 Ton Conductor Reel Stands With Disc Brake Of Stringing Equipment from wholesalers

    5 Ton 7 Ton Conductor Reel Stands With Disc Brake Of Stringing Equipment

    Ask Lasest Price
    Brand Name : Lingkai
    Model Number : 5T, 7T
    Certification : ISO
    Price : Get the latest
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 200sets/month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    5 Ton 7 Ton Conductor Reel Stands With Disc Brake Of Stringing Equipment

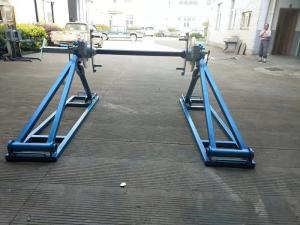

    Conductor Reel Stands are made of welded steel with a protective coating, used for supporting conductor drum or OPGW cable drum in transmission line stringing operation.


    As the leading and biggest manufacture of stringing equpment and tools in China, We have designed and produced a few kinds of Conductor Reel stands with disc brakes or hydraulic motors according to customer's requirement. The reel stands with hydraulic motors should be used with our hydraulic tensioner or hydraulic puller/tensioner, the reel stands with hydraulic motor also can be used as reel winder.


    Reel Stands with Disc type Brake

    Item No.ModelAccommodated ReelBrake force (KN)Line speed (m/min)Weight (kg)
    Diameter (mm)Width (mm)Bore (mm)Max. Weight
    15141SIPZ-3AΦ900 - 1600≤1350Φ65-1003Ton180200
    15142SIPZ-5AΦ1600 - 2400≤1350Φ65-1005Ton180215
    15143SIPZ-7Φ1800 - 2500≤1700Φ1207Ton280480

    Application: It is used to raise and support reels in conductor stringing operations.

    Features: The disc brake disc provides excellent control on reels. The reel stand could be dismantled into three parts for ease of carriage during transportation.
