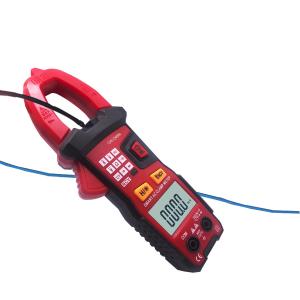

LCD Display Smart Digital Multimeter Clamp Meter With Temp

LCD Display Smart Digital Multimeter Clamp Meter With Temp

Mini Sound Level Meters Digital Noise Decibel Noise Audio detector Digital Diagnostic-tool

GENERAL SPECIFICATIONS

• Use of environmental conditions:600V CAT.
• Pollution Degree:I. Altitude <2000m.
• Working temperature and humidity: 0～ 40°C.(<80% RH, <10 ℃C is not considered).
• Storage temperature and humidity:-10～ 60°C.(<70% RH, removing the battery).
• Temperature coefficient: 0.1 Accuracy / ℃C.(<18 ℃C or> 28 ℃C).
• Measuring between earth terminal and the maximum allowable voltage: 600V DC or 600V AC RMS.
• Sampling rate: about 3 times / sec.
• Display: 3/4 digit LCD display.
• Over-range indication: LCD will display "OL".
• Low battery indication: When the battery voltage is lower than the normal operating voltage,"sa"will be displayed on the LCD.
• Input polarity indication: Auto shows"—-" Power: DC1.5V X3 SIZE AAA.
• Dimensions: 208mm × 78mm × 35mm
• Weight: less than 340g (with battery)
• Maximum jaw opening size: 36mm

Safe working habits

To avoid possible electric shock or personal injury,and to avoid damage to the instrument or the object to be measured, use the meter in the following ways:

• Inspect the instrument. Do not use the instrument if the case is damaged. Check for cracks or missing plastic parts.Pay particular attention to the insulating layer of the connector.
• Inspect the test leads for insulation damage or bare metal. Check the continuity of the test leads. If the test leads are damaged, replace them before using the instrument.
• Use the instrument to measure a known voltage to make sure the instrument operates normally.
• Do not use if the instrument is working abnormally. Protection facilities may have been damaged. If in doubt, the instrument should be sent for maintenance. Do not apply any voltage beyond the rated voltage indicated on the meter between any terminal and earth ground.
• Warning: When working above 30Vuse caution not to touch exposed contacts due to risk of electric shock. Only use the approved probes or clamps.
• Measurements must be made with the correct jack, function and range. .
• Do not use the instrument near explosive gases, vapours or dust.
• When using the test leads, keep your fingers behind the test lead protector.·
• When connecting,first connect the common test lead, and then connect the live test lead. When disconnect, the live test lead and then disconnect the common test lead.
