Brand Name : | Aslong |
Model Number : | CM42stepper |
Certification : | Rosh,CE |
Price : | Negotiation |
Payment Terms : | T/T, Western Union, MoneyGram, L/C |
Supply Ability : | 10000pcs/week |
Delivery Time : | 5-8Working days |

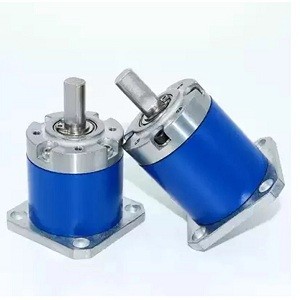

42mm Planetary Gear Stepper Motor Reducer Low Noise 4 Leval Stages
Specification:
42mm stepper gear box | |
![]() | Integrated output The integrated output realizes low noise and ensures that the motor teeth and outputshaft undergo high temperature heat treatment to increase strength and wear resistance. |
![]() | About customization We focus on the R&D and production of high-quality motors, and you can choose specifications according to your needs! Welcome to order samples and drawings, or consult our online customer service! |
![]() | Metal planetary gear High-grade low-carbon alloy,carburizing and quenching,hard and wear-resistant,to ensure the service life of the reducer. |
![]() | High-strength ring gear Gear transmission reduction box,high coincidence tooth profile balanced operation,high torque,low backlash |
Dimensions (unit:mm):
42mm Planetary gearbox parameter | |||||
Reducer | Length(L/mm) | Ration(i:1) | |||
Level 1 | 26.5 | 3.7 | |||
Level 2 | 35.5 | 13.7 | 19.2 | ||
Level 3 | 38.5 | 51 | 71 | 99.5 | |
Level 4 | 44.5 | 188.6 | 163.7 | 368.7 | 515.6 |
FAQ
![]() |
