Key authorization function / 9 buttons 1 dial lever mode setting industrial wireless remote control

Ask Lasest Price
Brand Name :	DKLD
Model Number :	DH-Z2MB2S3S2
Certification :	CE
Price :	USD 469.0~509.0 / Set
Supply Ability :	100 sets per week
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

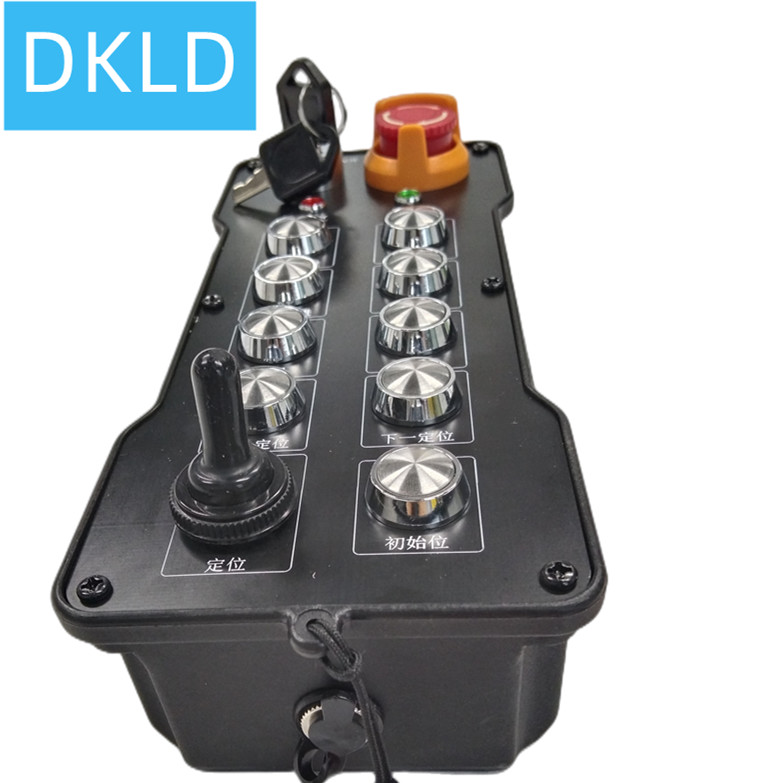

Key authorization function / 9 buttons 1 dial lever mode setting industrial wireless remote control

Product Description

With key authorization function / 9 buttons 1 dial lever mode setting industrial wireless remote control

This model is an industrial wireless remote control, the whole set includes 1 transmitter terminal +1 receiver terminal, the remote control distance is 100 meters, the transmitter terminal must have the key authorizer can use, with 2 authorized key switches, can be unplugged at any time, no key can not start. The selection mode lever at the bottom of the left has two switching modes, that is, select the point mode, or select the positioning mode. If you select different modes, the corresponding output of the button will be different.

Transmitter end rechargeable, a charge can be used continuously for hundreds of hours, equipped with an external charger, when the power is low, the transmitter end red light prompts, the charger charging indicator light is also red, once full, the charger red light will change to green. Generally, it can be charged once every two or three weeks.

Specification

Transmitter Function	waterproof,wireless
Size	20×6.7×4.5cm
Transmitter Weight	380g
Transmitting fraquency	433MHz
Frequency channel	50~256
Controlling distance	≥100m/can be customized 250m/500m
Direction of movement	Up, down, East, South, West, North
Transmitter Antenna	inside
Receiver Antenna	Inside / optional external antenna
Button life	≥ 1 million times
Panel material	stainless steel
Button material	stainless steel
Shell material	90% industrial reinforced nylon plastic + 10% industrial chemical fiber
Transmitter power supply	DC4.5 (3 pcs alkaline batteries)
Receiver power supply	DC12V/24V or AC 36V/220V/380V (AC by external transformer)
Temperature range	-25℃~+75℃
Button Text	Arrow / English / Chinese
Enclosure protection class	IP65
Application	High-frequency sand screening machine

Product Features

three built-in No. 5 alkaline dry batteries can be replaced at one time and can be used for 1-3 months. The red light will continue to light when there is no power, and can still be used for more than 8 hours under the red light!

Circuit diagram

Default configuration

1. Transmitter * 2 pieces

2. Receivers * 1 piece

3. The receiver comes with 1m cable connector

4. Operation and Maintenance Manual

Attentions

1. Due to transportation requirements, the product is not equipped with battery.

2. When you order, please remark the voltage, DC12V/24V or AC220V/380V(AC by external transformer).

Warranty & Service

1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.

Packing & Delivery

FAQ

1. What devices can your remote control control?

Generally speaking, as long as the electric control of construction machinery equipment, our remote control, can be seen as, we are specialized in making industrial wireless remote control, facing a wide range of equipment.

2. What are the functions of your crane remote control?

We have remote control corresponding to the requirements of crane machinery and equipment in various situations, such as single hook and single speed crane, which has fast and slow speed up and down for single hook, no fast and slow speed in East, West, North and south, and fast and slow speed in each direction for single hook up, down, East, West, North and south.

3. Is the function and price of your remote control related to the tonnage of crane? Is it related to motor power?

Answer: the function of the remote control has nothing to do with the tonnage, nor with the motor power of the crane, only with the number of actions.

4. Can your remote control control the variable frequency crane?

Yes, the frequency conversion crane is a stepless speed regulation control mode. Like an automatic car, the larger the accelerator is, the faster the speed is. There is no need to engage the gear.

5. Is the remote control sensitive? Is there any time delay?

During the operation of the remote control, it has instantaneous and immediate response, the execution time difference is 20-40ms, 1 second is equal to 1000ms, and the signal sensitivity at the receiver end is - 110dbm. Macroscopic judgment with naked eyes, the action of the device end is generated at the moment of key triggering, basically without time difference.

6. How far is your remote control? Can you get closer? Are there any farther ones?

The regular one is 100 meters, but it can be customized for further distance, such as 250 meters, 500 meters, 800 meters, 1000 meters, 1500 meters, 2000 meters, etc. the corresponding distance can be customized according to the actual demand.

OUR ADVANTAGES

QUALITY ASSURANCE

To provide quality products at the same time to improve after-sales support

GOOD SERVICE

An independent R & D and design company with ten years of technology accumulation, which can be quickly customized.

OWN FACTORY

We have own assem- bling factory and mold factory.

PROFESSIONAL TEAM

Professional team to provide you with efficient service.
