Programmable PLC Control Oil Type Transformer Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX800
Programmable PLC control oil type transformer coil winding machine
ZPX800 is a special equipment for winding transformer wire coil and
other similar products. The kind of automatic coil winding machine
is provided with main winding motor, automatic wire laying unit,
layer insulation unit, tension adjustable decoiler, pneumatic
system, PLC based control system, and servo motors, etc. Moreover,
the motor of the automatic coil winding machine is with brake,
which can stop immediately if needed.
Features of automatic coil winding machine ZPX800
This kind of automatic coil winding machine features slow starting,
smooth running, full function, high automation, etc. The automatic
coil winding machine is with PLC control system .The number of the
winding program saved in the automatic coil winding machine is more
than 50 pcs to meet different products needs. High automation
assures operating the automatic coil winding machine is very easy.
Main Parameters of automatic coil winding machine ZPX800
| Center Height: | 900mm |
| Winding Shaft Size: | 40x40x1100mm |
| Max. Winding Height: | 800mm |
| Winding Motor Power: | 4kw |
| Winding Shaft Speed: | 0-160 rpm |
| Speed Regulation: | Variable frequency and stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | 0.3-4.0mm |
| Max. Finished Coil OD.: | 800mm |
| Max. Loading Capacity: | 700kg |
| Automatic Wire Laying Function: | Min. spread pitch 0.01mm |
| Counting Mode: | 5-digit counting |
| Max. Numbers of Turns Preset: | 9999.9 |
| Counting Turn Range: | 0 - 9999.9 |

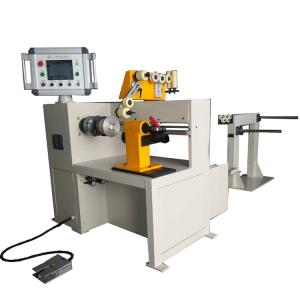

Fig 1: Automatic coil winding machine ZPX800's front view
Fig 2: Automatic coil winding machine ZPX800's wire guide
