Single Phase 1-10kVA Vertical UPS Uninterruptible Power Supply Single Input Output

Name: Single Phase 110kVA Vertical UPS Uninterruptible Power Supply Single Input Output
Brand: Baikong
Price: 1000 USD

Ask Lasest Price
Brand Name :	Baikong
Model Number :	YTR
Certification :	ISO9001,3C
Price :	$1000-$100000
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 Piece/Pieces per week
Delivery Time :	To be negotiated

Add to Cart

Product Details
Company Profile

Single Phase 1-10kVA Vertical UPS Uninterruptible Power Supply Single Input Output

Single input single output 1-10kVA vertical UPS uninterruptible power supply

Overview

NEW YTR UPS has high power density, optimized structural design, and smaller size

Similar modular design, greatly reducing wires, making installation and maintenance more convenient

Features

● Excellent performance The industry’s advanced efficiency of the whole machine, the efficiency of the whole machine is high at full load, which greatly saves energy consumption and greatly reduces customer operating costs

110% 30min Two-way protection

>0.99 All devices comply with international environmental protection standards and are green and harmless

Multiple modes to intelligently adjust the speed, extend the service life of the fan, further improve the efficiency of the whole machine, and reduce the loss

● Large screen high-definition curved display

140 curved surface display effect, make the visual space wider and optimize the visual experience

● Battery management independent patent

Support battery temperature compensation to extend battery life

● Smart start, uninterrupted power

With DC start function, it can be started normally when there is no mains power

The main technical parameters

_index ^model		YTR1101	YTR1101L	YTR1102	YTR1102L	YTR1103	YTR1103L	YTR1106	YTR1106L	YTR1110
Input characteristics	battery voltage(VDC)	24	36	48	72			192
	voltage range(Vac)	110-300
	Frequency Range(Hz)	50/60 ±10%
	Phase	Single-phase three-wire
	Input power factor	＞99 (full load)
Output characteristics	rated power(VA)	1000		2000		3000		6000		10000
	The output voltage(Vac)	200/208/220/230/240± 1%
	Output frequency(Hz)	Mains mode: Same as the grid. Battery mode: 50±0.25/60±0.3						Mains mode: Synchronize with the grid Battery mode: 50/60±0.1
	Wave(THD)	<3% (linear load)
	Switching time(ms)	0
	Overload capacity	105%-110%: 10min; 110%-130%: 1min； >130%: 3s						100%-110%: 30min； 110%-130%: 5min； >130% :10s
	output method	Output socket				Output socket + terminal block		Wiring special
Other characteristics	Overall efficiency	Up to 93%
	DC start	have
	Communication function	RS232 (standard), optional USB, SNMP, dry contact, EPO, etc.						RS232, EPO, USB (bad configuration), optional SNMP, dry contact, etc.
	Panel display	LED						Blue screen LCD
	Audio noise(dB)	<55								<58
	Alarm function	Low battery, abnormal mains, UPS failure, output overload, output short circuit
	Protective function	Battery under-voltage protection, over-cut protection, short-circuit protection, over-temperature protection
	Operating temperature(°C)	0~40
	environment humidity	0~95%,No condensation
	Dimensions (width x depth x height) (mm)	145X282X220		145X397X220		190X421 X318	145X397 X220	190X369 X688	190X369 X318	190X442 X318
	weight(kg)	9.8	4.1	17	6.8	27.6	7.4	51	12	15

Product Tags:

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Sichuan Baikong Electric Technology Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Single Phase 1-10kVA Vertical UPS Uninterruptible Power Supply Single Input Output

Single Phase 1-10kVA Vertical UPS Uninterruptible Power Supply Single Input Output

Single Phase 1-10kVA Vertical UPS Uninterruptible Power Supply Single Input Output

10kVA UPS uninterruptible power supply

vertical UPS uninterruptible power supply

10kVA Single phase UPS

Single Phase 1-10kVA Vertical UPS Uninterruptible Power Supply Single Input Output

You May Like

220V Online UPS Uninterruptible Power Supply Backup 60Hz

Overload Protection 50HZ UPS Power Supply Backup 120~295V With Monitoring Software

Parallel UPS Uninterruptible Power Supply With External Battery

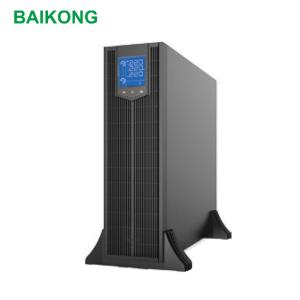

YTR3318KW Online Rack Type UPS 380V 220V Mutual Conversion
