Laboratory UN38.3 Vibration Table Testing Equipment Electrodynamic
Shaker Table For Lithium
Product Description with Dynamic Programmable Industrial Vibration Test Equipment
We are manufacturer of High Stability Electrodynamic Vibration
Shaker System Computer Control with VENZO-820S systemseries
products, adopted the 'double-magnetic circuit structure','
self-generated skeleton action circles', 'Airborne Support’ and
'roller bearings and linear guidance', 'trunnion isolation’
advanced modern technology and special technology, can be completed
in X,Y,Z three-axis sinusoidal vibration test and broadband random
vibration tests, to be completed by the classical (half - sine,
trapezoidal, saw tooth wave) pulse and shock response spectrum
test.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Electrodynamic shakers Of Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial
resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact
structure and rational.
3. Rocker Rod roller bearings straight and import-oriented
composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the
installation of mobile convenience.
5. New duct design and enhance the cooling effect.
Technical parameters of Electrodynamic Shaker System vertical
expander:
Company Information
We are a long history testing equipment manufacturer, in the past
28 years, we devoted to simulation environmental testing equipment
and Mechannical vibration and shock testing machine. Vertical &
Horizontal Vibration Electrodynamics Type High Frequency Shaker
Table is our star products , and we had obtained the CE
certification for this machine .
If you have any question about Dynamic Electrodynamic Shakers 3
Different Axis Programmable Industrial Vibration Test Equipment ,
please contact with us ,thank you
6000N Horizontal Vibration Test Equipment With Air Cooling For Sine
Random Force
High Frequency Vibration Table Technical Parameters
Electrodynamic shake vibration tester adopted the double- magnetic
circuit structure, self-generated skeleton action circles, Airborne
Support and roller bearings and linear guidance, trunnion isolation
advanced modern technology and special technology, can be completed
in X,Y,Z three-axis sinusoidal vibration test and broadband random
vibration tests, to be completed by the classical (half - sine,
trapezoidal, saw tooth wave) pulse and shock response spectrum
test. These products are widely used in national defense, weapons,
aviation, aerospace, communications, electronics, electrical
appliances, communications, home appliances and other fields.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed (m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
Technical parameters of Vibration Testing Equipment horizontal expander:
Technical parameters of vibration tester machine vertical expander:
Electrodynamic shake vibration tester adopted the double- magnetic
circuit structure, self-generated skeleton action circles, Airborne
Support and roller bearings and linear guidance, trunnion isolation
advanced modern technology and special technology, can be completed
in X,Y,Z three-axis sinusoidal vibration test and broadband random
vibration tests, to be completed by the classical (half - sine,
trapezoidal, saw tooth wave) pulse and shock response spectrum
test. These products are widely used in national defense, weapons,
aviation, aerospace, communications, electronics, electrical
appliances, communications, home appliances and other fields.

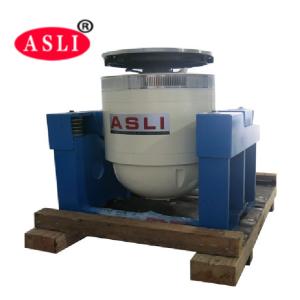

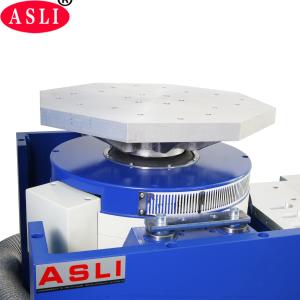

Product Pictures with Electrodynamic Vibration Shaker System:
Package about shock tester machine:
PP film first, and then 10mm foam between machine and the case, and
outside is standard export plywood case.
Exhibition about test equipment:
If you have any question about those vibration shaker, please feel
free to contact with us,thank you .
