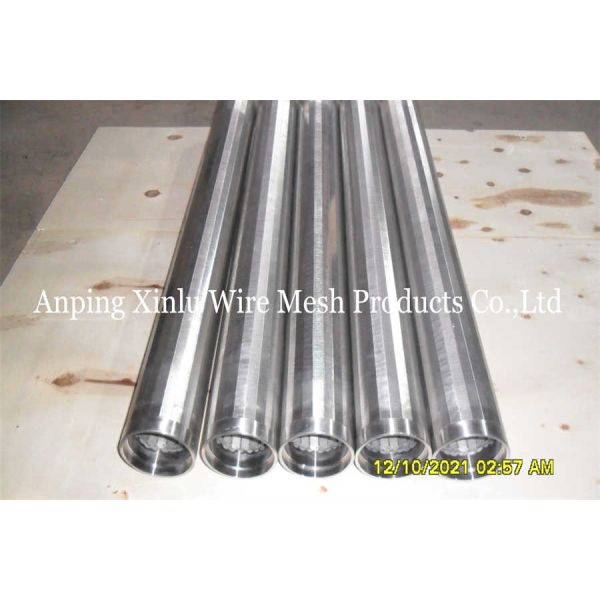

SUS 304 Sand Control Screens High Durability For Food Processing
Industry
Sand Control Screens Product Quick Details:
1. Sand Control Screens
2. External Diameter: 88mm
3. Material: SS304
4. V wire: 1.5x2mm
5. Support wire: 1.8x2.5mm
7. Opening: 0.05mm
8. End: Flange rings
9. Element Overall Length: 722mm
10. Weight: 2.6g/pcs
Product Name: Johnson V Wire-Wound Strainer Sand Control Screen Pipe, v wire water well screen, wire wrapped screen pipe, Johnson
specialty screen, spiral screen tube, strainer pipe, rod based
continuous slot wedge wire screen, drilling well screen, reversed
rolled slot well screens, screen cylinders, continuous-slot well
screen, Well screen, water filter, filtration element
Sand Control Screens is made by winding cold-rolled wire,
approximately triangular in cross section, around a circular array
of the longitudinal rods. The wire is attached to the rods by
welding, producing rigid one-piece units having high strength
characteristics at minimum weights.There is a fixed value slot
between each v wire, and the continuous slot, designed to provide
maximum open are to reduce entrance velocity, increase hydraulic
efficiency and promote more effective development.
Sand Control Screens Characteristic:
Screens with high open area are more suitable for the construction
of high-quality water wells, oil wells and gas wells.
Low cost operation Screens with high open area shall favor
groundwater infiltration. Abundant water shall reduce the water
level’s down, thus to save energy consumption.
Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of
groundwater’s entering into the screen much slower than any other
filtration apparatus, which will avoid sand’s entering into screen
because of high pressure, thus reduce the abrasion of the pump.
Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open
area is much easier than the entering into lower open area screen.
The slow water flow shall extend the life span of wells.
OEM service:
Please tell us the specification of the wire screen you need, and
we will help you to process the high quality products.
Custom range
1. Material : Low carton, mild steel wire, iron wire, low carton
galvanized steel (LCG), stainless steel (201, 205, 304,316, 316L, 321 etc.), Duplex stainless steel
2. Diameter: DN 20-1000mm (1-40inch)
3. Slot size:
0.05mm,0.08mm,0.1mm,0.15mm,0.20mm,0.25mm,0.30mm,0.50mm,0.75mm,1.0mm...
6.00mm also achieved upon request.
4. Wrapped wire 1*2mm, 1.5*2.5mm, 1.5*2mm, 1.8x2.5mm, 2*3mm,
2.2*3.5mm, 2.3*3.5mm, 2.5x4mm, 3*4.6mm
5. Support rod 2*3mm,2.5x4mm,3*4.6mm VEE wire or ø2.5-6.0mm round
wire
6. Length: 500mm,1000mm,1500mm,2000mm,..... ,6000mm.
7. End connection: groove connection, Plain beveled ends for butt welding (welded ring)or threaded male
&female coupling (API STC, PT NPT, BSP, G, ).(spiral), Flange, Closed up
8. Surface Electrolytic polishing, Pickling and polishing or
Galvanized
Packaging & Delivery: Johnson V Wire-Wound Strainer Sand Control Screen Pipe
With plastic film or buble package with weave bag, then packed in
wooden boxes or container

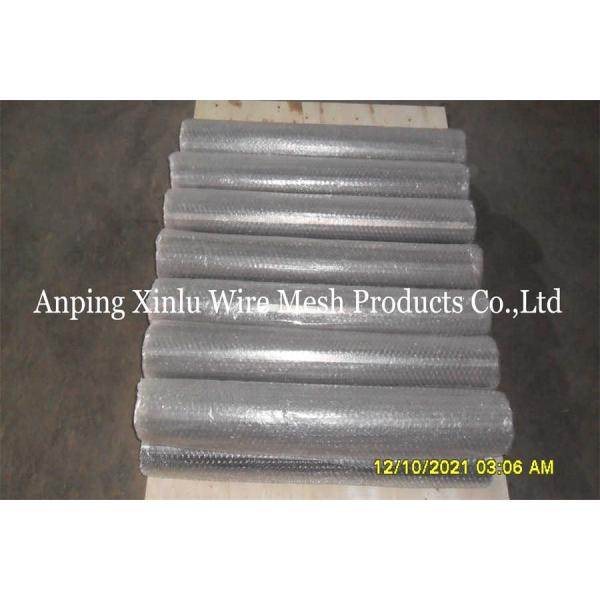

Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
According to your requirment.
Application: Sand Control Screens
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water wells
Sand Control Screens Data reference table:
sizes
(inch) | OD
(mm) | slot
(mm) | Length
(m) | Tenslile
strength | collapse
Strength | wrap wire
vee-shaped wire (Width x height:mm) | support rod
Round wire (mm) |
| 3-1/2 | 88.9 | 1 | 2.9 | >22 | 10.2 | 2.3 x 3.5 | 3.0MMx22 |
| 4-1/2 | 114.3 | 1 | 2.9 | >28 | 11.5 | 2.3 x 3.5 | 3.0MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.0 x 6.0 | 5.OMM×32 |
| 8-5/8 | 219.1 | 1 | 5.8 | >34 | 21.9 | 2.3 x 3.5 | 3.8MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >50 | 38.2 | 3.0 x 4.6 | 4.0MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >60 | 46 | 3.05 x 6.35 | 5.0MMx48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 9 | 2.5 x 4 .0 | 3.8MM×55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >60 | 39.5 | 3.0 x 4.6 | 4.5MMx55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >100 | 48 | 3.2 x 6.0 | 5.0MM×55 |
| 12-3/4 | 323.9 | 1 | 5.8 | >120 | 37.2 | 3.0 x 6.0 | 4.0MMx56 |
| 14 | 355.6 | 1 | 2.9 | >80 | 37.8 | 3.0 x 5.0 | 4.0MMx59 |
| 16 | 426 | 1 | 2.9 | >80 | 37.5 | 3.0 x 5.0 | 4.OMM×64 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
FAQ
The Important Question: How Many Meters of the well deep can be used in?
A: Common screen pipes can be used in wells with a depth of 200-300
meters.
Large wire can also be customized for 650m deep well.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass
production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to
arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
