KA100 SMT Automatic Splicing Machine High FPY For 8mm Carrier Tapes
KA100 SMT Automatic Splicing Machine
KA100 automatic splicing machine is developed to solve the pain
points of the SMT splicing industry, is committed to help customers
improving production efficiency and reducing labor costs.
SMT Automatic Splicing Machine advantages
1. Automatic splicing: suitable for all types of 8mm carrier tapes.
2. High FPY: FPY ≥99.3%.
3. Low noise: unique non-vacuum splicing design to avoid excessive
noise.
4. HIGH SPEED: Greatly improve the splicing speed and FPY.
5. Compact design: compact design, free movement.
6. Reliable splicing: the use of hot-melt splicing tape greatly
improves the splicing strength, and the carrier tape will not loose
or break when moving in the feeder.
7. High efficiency: 3000 splicing tapes per roll can be used
continuously for a long time.
8. Simple operation: simple operation, new operators can get
started within 3 minutes, reducing the dependence on skilled
operators and staff training.
PRODUCT SPECIFICATIONS
PRODUCT PARAMETER

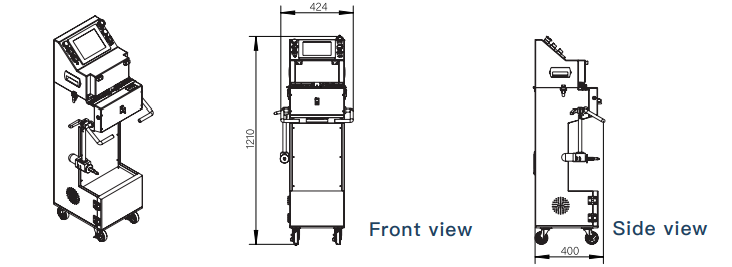

| Apperance | Dimension (mm) | 400(L) x 424(W) x 1210(H)mm | Power Supply System | Battery Capacity | 22Ah |
| Weight | 60kg | Battery voltage | 48V |
| Conveyor | Conveyor Height | 920±20mm | Charging Voltage | 110V - 220V |
| Width | 8mm | Charge time | 8H |
| Carrier Tape | Width & Material | 8mm(paper /plastic) | Full Charge Working Time | 12 - 16H |
| Pitch | 2/4mm | Splicing efficiency | Splicing Time (c/t) | 12-15sec (not including loading time) |
| Minimum Splicing Length | 120mm |
| Splicing Tape | Length of Splicing Tape | 32mm | Winding Speed | 300rpm |
| Equipment accuracy | Carrier Tape Feeding accuracy | ±0.10mm | FPY | Empty Componment Spliced | 0 - 2PCS |
| Equipment accuracy | Misalignment accuracy | ±0.15mm | Options and Accessories | Pre cutting | Automatic pre-cutting |
| Rewinding function | Control Mode | Automatic reset button | Barcode Gun | Available as Option |
| Winding Device | One set (left side) | Automatic copper
pressing device | Available as Option |
| Carrier tape Reel | 7inches,13inches,15inches | Right receiving arm | Available as Option |
| Control System | VCU | PLC+Smart Control |
It is the inevitable trend to realize the automation production by
using auto SMT Splicing machine. Started from 1999, KHJ Technology
was devoted to the research and innovation of SMT Splicing machine,
and focus on solving the SMT manufacturing difficulties in
cooperation with global customers.
With the higher production requirement on SMT splicing production
line and more smaller mounting components, which request latest
technology to ensure the stable&reliable splicing and
anti-electrostatic safety.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
What are our advantages?
1. Professional manufacturer for nearly 20 years.
2. Good production capacity and fast delivery.
3. Management cost saving and labor costs reducing.
