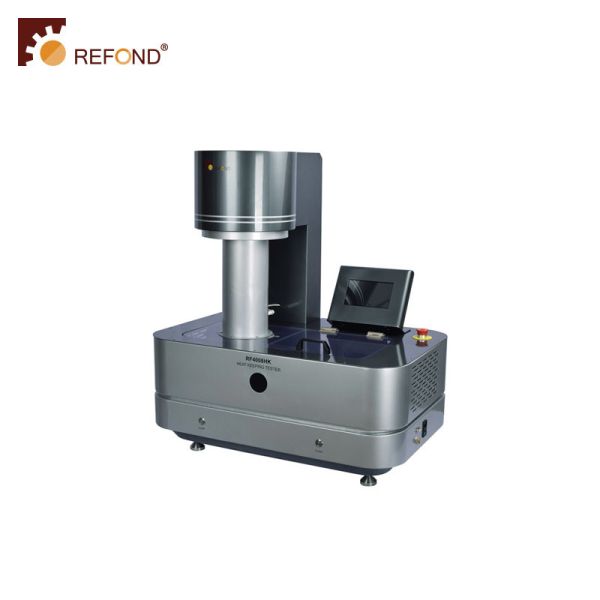

    Qmax Heat Retention 100cm2 Textile / Fabric Testing Machine KES Methods

    Textile Testing Instrument Qmax Heat Retention Measurement Tester


    Standard

    KES Methods


    Product Instruction

    Heat Keeping Tester is used to determine the thermal property of fabrics.
    - Sample is put on a constant temperature heated plate, and vertical air flow is directly applied on the top surface of the sample.
    - Measure the heat loss flow through sample, and calculate the heat keeping capacity.
    - Wind Tunnel automatic up and down.
    - Specimen transfer automatically, reduce the error caused by manual operation.
    - Touchscreen operation.

    Four Testing Modes:
    - Dry Contact Method: Sample directly contacts the heated plate.
    - Wet Contact Method: Sample directly contacts the wet filter paper which is put on the heated plate.
    - Dry Space Method: Sample is placed over the heated plate with a constant distance space.
    - Wet Space Method: Sample is place over the heated plate with a constant distance space and a wet filter paper is put on the heated plate.


    Applications

    Textile fabrics, Leather, Cosmetics, Automotive Interior, Medical Products, etc.


    Product Specifications

    - Heat Plate: 100cm2 Aluminum, 1mm thickness
    - Guarded Ring:130x130mm Aluminum, 6mm thickness
    - Polystyrene Foam Specimen Rack (for Direct Contact Tests)
    a) Inner Opening: 100mm x100mm, Square
    b) Outer Dimension: 230×230mm
    c) Thickness: 2mm
    - Outer Frame for Specimen Rack
    a) Outer Dimension: 230×230mm
    b) Thickness: 6mm
    - Spacer(for Dry or Wet Space Tests)
    a) Bakelite
    i. Outer Dimension: 230×230×6mm
    ii. Inner Opening: 204×204mm
    b) Polystyrene Foam
    i. Outer Dimension: 204×204×5mm
    ii. Inner Opening: 100×100mm
    - Wind Tunnel
    a) Inner Diameter: 14.8cm
    b) Air Flow Speed:0 – 1.5m/s
    - Touchscreen Control
    - PC Software for Data Record and Report
    - Power:230V,50/60Hz, 2.5A
    - Dimension:600(L)×400(W)×500(H)mm
    - Weight:Approx. 100kg


    Order Information

    RF4008HK Heat Keeping Tester
