    Hurricane Window Shutters 0.5mm Panel Roll Forming Machine For Building

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : YX-50
    Certification : CE, BV, SGS
    Price : USD33000-USD85000/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20set/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

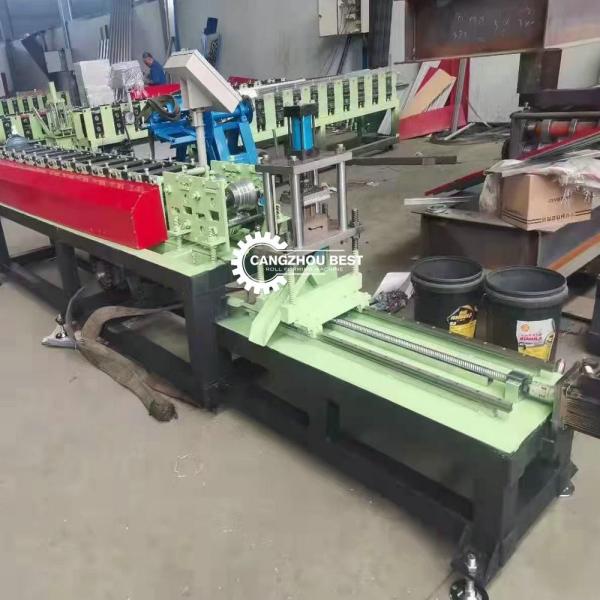

    Hurricane Window Shutters 0.5mm Panel Roll Forming Machine For Building

    Hurricane Window Shutters Panel Roll Forming Machine For Building


    1. Product Description

    Our steel palisade fencing roll forming machine for different models based on different designs or customer's samples.It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.


    2. Technical Parameters

    Specification
    No.
    Item
    Specification
    1
    Can Formed Material
    GI,AI
    2
    Equipment operation
    Automatic
    3
    Voltage
    380V 60Hz 3Phase or as your requirement
    4
    Thickness of sheet (mm)
    0.8-1.2mm
    5
    Material width(mm)
    As your requirement
    6
    Cover Width of the sheet after formed
    as your drawing
    7
    The size of the roll forming machine
    5000mmx800mmx1400mm
    8
    Speed
    8-15m/min
    9
    Diameter of shaft
    40mm
    10
    Weight of the Machine
    3000-3500KGS
    11
    Material of rollers
    C45 steel quenched and chromed
    12
    Motor brand
    Siemens or Guomao
    13
    PLC
    Siemens or Delta or Mitsubushi
    14
    Total power (kw)
    8kw
    15
    Power of hydraulic system
    4kw
    16
    Power of main molding core
    4kw

    3. Components of the machine

    NoNameQuantityRemarks
    1Decoiler1setUp to customer
    2Main MachineLeveling Device1set
    Punching Device1set
    Roll Forming1set
    Post Cutting1set
    Hydraulic System1set
    3Electric Control System1set
    4Supporter2pcsUp to customer

    Manual decoiler

    Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading
    capacity:5T,Inner diameter: 500-508mm


    Feeding table
    Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

    Rollers

    High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.

    Using high qualiy thick shaft, the strength is more durable

    Machine body

    The main body of the body without welding, all the use of cast steel, prevent the host body deformation.

    Control Cabinet
    PLC:Delta PLC(or according to customer's inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English and other language
    Hydraulic station
    Warning belt seam panel machine hydraulic station is a hydraulic device composed of a hydraulic pump, a driving motor, an oil tank, a directional valve, a throttle valve, an overflow valve, etc. or a hydraulic device including a control valve. According to the flow direction, pressure and flow required by the drive device, it is suitable for various machinery where the drive device is separated from hydraulic station.
    Received goods table
    It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces 3meters

    4. Why choose this machine?

    1Lifetime seivices
    2Introduced Mitsubishi PLC with touch screen to machine controll system.
    3One worker operation (minimum)
    4Lifetime>10years: roller cover with 0.05mm chrome
    80mm diameter solid steel shaft
    Cutting blade with heat treatment.
    5Cr12 mould steel cutter with quenched treatment.
    6Product cut-to-length.
    7Technician overseas installing and training available

    5. Our Service

    1) Free technical support and free accessories supply.

    2) Engineer available to service machinery overseas.

    3) One year warranty is provided.

    4) Long life technical guidance for free.

    5) We always offer technical support, quick response, all your inquire will be replied in 24 hours.
