LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit

    Buy cheap LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit from wholesalers

    Buy cheap LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit from wholesalers
    • Buy cheap LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit from wholesalers
    • Buy cheap LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit from wholesalers
    • Buy cheap LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit from wholesalers

    LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : LZ007720 CASE CX800B
    Price : Negotiation
    Payment Terms : Western Union, Paypal, T/T, Transfer
    Supply Ability : 1000 set per week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit


    LZ007720 CASE Repair Seal Kit Model CX800B Bucket Cylinder Rebuild Kit


    Product NameCase Bucket Repair Seal Kit
    Part NumberLZ007720
    ModelCASE CX800B
    MaterialPU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
    Place of OriginChina(Mainland)
    Brand nameSUNCAR
    PackingPP bag inside, carton box outside
    Shipping ModeBy air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
    Payment TermsWestern Union, Paypal, T/T, Transfer
    CertifiC.A.TionISO9001
    WarrantyUnavailable
    CustomizedOEM & ODM are welcomed
    C.A.Tegory GroupHydraulic oil seal kit
    ConditionNew, genuine new
    SampleAvailable
    Applicable IndustriesBuilding Material Shops, Machinery Repair Shops, Retail, Construction work
    FeatureHigh Sealing performance/ wear resistance
    AppliC.A.TionBucket

    Types Of Seals:

    • Piston Seal: SPGW, SPGW2, SPGWV, SPGO, SPGA, OK, GKS/YS, KDAS/DAS, SPG, SPGM, SPGN, SPGC, OHM, CPI, CPH, ODI, OSI, OUIS, OUHR, OKH, OUY.
    • Piston Rod Seal: IDI, ISI, IUIS, IUH, PTB, H605, SPNO, SPN, SPNS, SPNC, U-CUP.
    • Piston And Piston Rod Seal: UPI, USI, UPH, USH, V99F, V96H, UN, UHS, UNS.
    • Buffer Seal: HBY, HBTS, HBTY, URE.
    • Dust seal for reciproC.A.Ting motion: DKI, DWI, DWIR, DKBI, DKBI3, DKBZ, DKH, DKB, GA, DSI, LBI, LBH, LBHK, DSPB, DHS, FA, LPI, A1, GHP, DKC.
    • Dust Seal for shake: DLI, DLI2, VAY.
    • Oil Seal: SC, SB, TC, TB, TCK, VC, VB, KC, KB, TCZ, TCV, TCN, TC4, TB4, TCJ, SA1J, VAJ, KA3J, DC, DB, OC, etc.

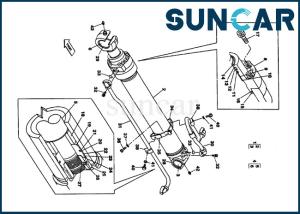

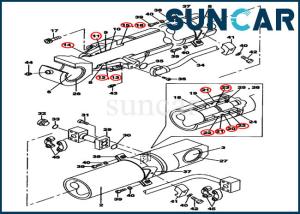

    Parts On Group (CX800B) - CRAWLER EXCAVATOR TIER 3 (NA) (10/08-12/15):

    PosPart No.QTYParts Name
    0KUV10060[1]BUCKET CYLINDER
    1LR00457[1]HYD TUBE
    3KUV0037[1]BUSHING
    4LZ007730[1]PISTON ROD
    5NSS[1]NOT SOLD SEPARAT
    8LU002430[1]CYLINDER END CAP
    9LB00461[1]BUSHING
    10LA00623[1]LOCKING RING
    11LE012430[1]RING
    12LE00485[1]WIPER SEAL
    13LE00486[1]BACK-UP RING
    14LE00911[1]WIPER SEAL
    15154893A1[1]O-RING
    16LE012370[1]BACK-UP RING
    17108R033W100N[8]
    18LE00912[1]RING
    19LJ00626[1]JACK PISTON
    20LE00628[1]SEALING RING
    21LE012490[2]SCRAPER RING
    22LE00630[2]SEALING STRIP
    23LH00213[1]SEALING STRIP
    24LA010170[1]SPECIAL NUT
    25LA00617[1]SCREW,Hex Skt
    26LB00459[1]BALL
    27LE00653[2]WIPER SEAL
    28LE00654[2]WIPER SEAL
    29LR00448[1]PIPE ASSY.
    30154595A1[1]O-RING
    31108R016Z060N[4]BOLT
    32LK00249[1]PLUG
    33154568A1[1]O-RING
    34LR00449[1]PIPE ASSY.
    35154579A1[1]O-RING
    36LA00751[4]BOLT
    37LD00022[2]CLAMP BRACKET
    38LD00023[2]CLAMP BRACKET
    39828-14050[4]BOLT
    40892-16014[6]LOCK WASHER
    41LS003200[2]HALF-FLANGE
    42153910A1[2]BOLT
    43LJ00624[1]BLEEDER
    44153630A1[1]LUBE NIPPLE
    45NSS[2]NOT SOLD SEPARAT
    46LZ007720[1]SEAL KIT
