    7'' TFT HMI human machine interface system For Industrial Automation

    Ask Lasest Price
    Brand Name : Lensen
    Model Number : LS507
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 6000pcs/month
    Delivery Time : 2-8 days
    • Product Details
    • Company Profile

    7'' TFT HMI human machine interface system For Industrial Automation

    7'' TFT HMI Human Machine Interface System For Industrial Automation


    HMI for Industrial Automation 7'' Touch Screen Support WLAN WIFI Or 4G Low Cost Touch Screen


    7'' HMI, 7'' touch screen support WLAN, WIFI or 4G Cost Effective HMI


    507 is a 7″TFT LCD resistance touch screen HMI, resolution 800x480,

    Can expanding multi interface Ethernet interface, support MODBUS-TCP protocol.


    Model No.LS507W-WANLS507W-WFLS507W-4G
    Order No.LS507W-3WA01-0AA0LS507W-3WF01-0AA0LS507W-34G01-0AA0
    Specifications
    Display size7'' TFT
    colors24bits
    Resolution800×480
    backlightLED
    Brightness250cd/㎡
    Life span30000Hrs
    Screen typeScreen type
    CPUA8 600MHz 32bit
    Memory256M FLASH+128M DDR3
    Real clockSupport
    USB HOSTUSB 2.0×1
    USB SLAVEUSB 2.0×1
    Series portmale,RS485/RS232/RS422
    Ethernet10/100M self-adaption
    wifiN/ASupportN/A
    4GN/AN/ASupport
    AntennaN/ASupportSupport
    Electrical specification
    Rated power7.2W
    Rated VoltageDC24V
    Input range9~28.8V DC
    Allowable power loss10ms
    insulation resistanceOver 50MΩ@500VDC
    Voltage resistance500VAC 1min
    Structural specification
    Housing colorDeep gray+ silvery
    Housing materialABS+ PC plastic,metal
    Outer size230×166×39mm
    Hole size192×138mm
    Weight1.3kg
    Environmental specifications
    working temperature0~50℃
    Working humidity10~90%RH(non-condensing)
    Storage temperature-20~60℃
    Storage humidity10~90%RH(non-condensing)
    Seismic performance10~25Hz(X,Y,Z direction 2G/20 min)
    Cooling modeNatural Air Cooling
    Product certification
    Front panel protection levelIP65
    CE certificationCompliance with CE Certification

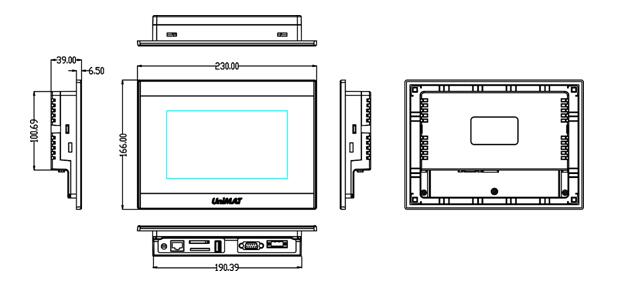

    Dimension

    Wiring Diagram
