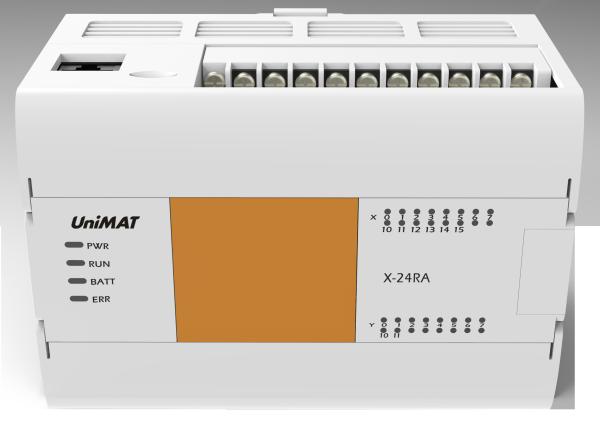

    High Performance Unimat Industrial Automation PLC 14 points Input

    Ask Lasest Price
    Brand Name : Unimat
    Model Number : X-24RA
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 6000pcs/month
    Delivery Time : 2-8 days
    • Product Details
    • Company Profile

    High Performance Unimat Industrial Automation PLC 14 points Input

    High Performance Unimat Industrial Automation PLC 14 points Input


    China PLC Low Cost PLC


    Power supply
    Working voltage(Vac)MinAC 100V
    TypicalAC 220V
    MaxAC 240V
    Limited Input VoltageAC 85V~AC100V, AC 240V~AC264V
    Input Current60/30mA(CPU,120/240VAC)
    Surge Current20A,264V AC时
    Fuse2A 60V Slowly melting
    24V power supply(Max)300mA
    Digital input
    Build in input14 points fixed
    Input typePNP/NPN
    Rated Voltage24VDC,high speed 6.4mA(X0~X5),common 4mA(X6~X27)
    Maximum continuous permissible voltage30V DC
    Surge voltage35VDC,0.5 second
    Logic 1[minimum]15VDC,High speed 3.7mA(X0~X5),common 2.5mA(X6~X27)
    Logic 0[Max]5VDC,1mA
    lowable leakage current [maximum]1mA
    Isolutionyes
    Photoelectric isolation500VAC 1 min
    High speed counter input rateSingle-phase 200KHz[3]; AB phase 100KHz[3], supporting 4 times counting
    Digital output characteristics
    Build in output10 relay output
    Output typedry contact
    Rated Voltage220VAC/24VDC
    Voltage range5~30VDC
    5~250VAC
    Surge Current(Max)5A 4s 10% Duty ratio
    Rated current per point (Max)2A
    Lamp load [maximum]30W DC/200W AC
    Response time (24V, 2K load)10ms
    Turn on resistance [contact]0.2Ω(New maximum)
    Pulse frequency[Max]1Hz

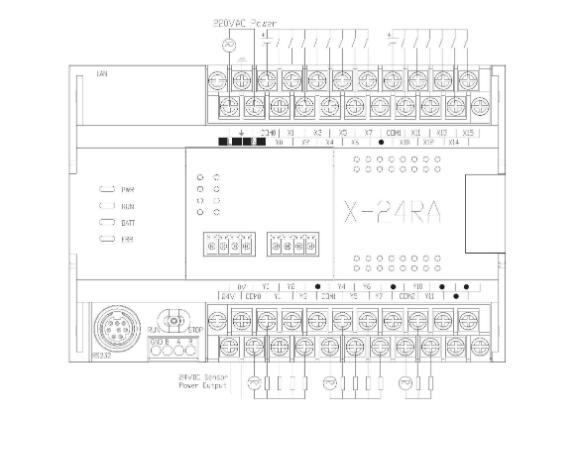

    Dimension
