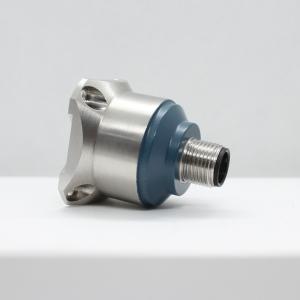

    Three Axis 2.4kHz 9 - 36V Accelerometer Vibration Sensor

    Ask Lasest Price
    Model Number : AKG392
    Brand Name : RION
    Supply Ability : 500 Piece/Pieces per Month
    Price : $268.00/Pieces >=1 Pieces
    Payment Terms : T/T
    Delivery Time : 1 weeks for samples
    Certification : CE
    • Product Details
    • Company Profile

    Three Axis 2.4kHz 9 - 36V Accelerometer Vibration Sensor

    New Accelerometer Output Speed Vibration Amplitude New Vibration Sensor

    MAIN FEATURE

    ★ Three axes (X, Y, Z)

    ★ Output signal: RS232; RS485; TTL

    ★ Power supply voltage: 9-36V

    ★ Impact resistance: 2000G

    ★ Working temperature: -40°C ~ +85°C

    ★ Storage temperature: -40°C ~ +85°C

    ★ Size: L34.3×W34.3×H38.5mm

    ★ Excellent deviation stability, good environmental performance (shock, vibration and temperature)


    APPLICATION

    ★ Medical equipment

    ★ Bridge

    ★ Automobile

    ★ Road roller

    ★ Wind power generation

    ★ Large machinery, engines

    ★ Low-frequency vibration and automatic monitoring

    ★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection


    Product Description

    ▶ PERFORMANCE

    AKG392PARAMETERSUNIT
    Range±2±4±8±10±20±40g
    Bias calibration<1<1<1<1<1<1mg
    Measure axisX,Y,ZX,Y,ZX,Y,ZX,Y,ZX,Y,ZX,Y,Zaxis
    Power on/off repeatability<2<2<2<2<2<2mg(max)
    Bias temperature coefficient0.150.150.150.750.750.75%/℃(typical)
    Resolution/threshold (@ 1Hz)< 1< 1< 1< 1< 1< 1mg(max)
    Non-linearity<0.5<0.8<1<1<1<1% FS(max)
    Bandwidth (3DB)500500500500500500Hz
    Cross axis sensitivity111222%
    Transverse vibration sensitivity ratio112555%
    Resonance frequency2.42.42.45.55.55.5kHz
    Output rate5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
    Output InterfaceRS232/RS485/TTL
    ProtocolRION 68 protocol and MODBUS RTU protocol
    ReliabilityMIL-HDBK-217,Grade 2
    Impact resistance100g@11ms, 3 Axial Direction (Half Sinusoid)
    Recovery Time<1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)
    Vibration20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)
    Input(VDD_VSS)9~36 VDC
    Operating current consumption<60mA @ 12 VDC
    ConnectorIndustry standard M12 connector
    Weight

    Product net weight: 82g,

    Magnetic base: 48g,

    L-shaped adapter plate 20g

    Size

    Product size: 34.3*34.3*38.5mm

    Magnetic adsorption base size: 34.23*34.23*6mm

    L-shaped adapter plate size: 36*44*4mm
