DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable

    Buy cheap DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable from wholesalers

    Buy cheap DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable from wholesalers
    • Buy cheap DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable from wholesalers

    DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable

    Ask Lasest Price
    Brand Name : RION
    Model Number : DCM250B
    Supply Ability : 10000 Piece/Pieces per Month
    Price : $98.00/Units >=1 Units
    Certification : ISO
    Payment Terms : T/T, Paypal
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable

    DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable

    DCM250B&260B is a three-dimensional electronic compass, which adopts hard magnetic and soft magnetic calibration algorithm, so that the compass can eliminate the influence of magnetic field through the calibration algorithm even in the environment with magnetic field interference. DCM250B&260B integrates a three-axis fluxgate sensor, calculates the heading in real time through the central processing unit, and uses a three-axis accelerometer to compensate for a wide range of tilt angles to ensure that the compass can provide high accuracy even at tilt angles of up to ±85° Heading data. The electronic compass integrates high-precision MCU control, with diversified output modes. The standard interfaces include RS232 / RS485 / TTL and other interfaces, or the customization of other communication interfaces. DCM250B&260B is small in size and low in power consumption. It can be used in many fields such as antenna stability, vehicles, system integration, high shock resistance, high reliability, and the compass can work normally in extremely harsh environments, and is more suitable for today's various precisions and high measurement integrated control system.

    Main Features

    heading accuracy: 0.8°
    roll&pitch measuring range:±85°
    tilt resolution: 0.1°
    tilt accuracy: <0.2°(full range)
    working temp.: -40℃~+85℃
    size: L55*W37*H24mm
    with hard and soft magnetic calibration
    RS232/RS485/TTL output
    DC5V power supply
    ★ Support ASCII (NMEA 0183 protocol )
    Application :
    ★ Marine navigation surveying and mapping
    ★ GPS integrated navigation
    ★ Antenna servo control
    ★ Infrared imager
    ★ Laser rangefinder
    ★ Map redrawing device
    ★ ROV underwater robot navigation
    ★ Oceanographic surveying instrument
    ★ Special occasion robot


    Parameter
    The best heading accuracy
    0.8° tilt<10°
    1.5° tilt <30°
    2.0° tilt<40°
    3.0° tilt < 60°
    Pitch accuracy
    0.1°<15°(Measuring range)
    0.2°<30°(Measuring range)
    0.3°<60°(Measuring range)
    Pitch tilt range
    ±85°
    Roll accuracy
    0.1°<15°(Measuring range)
    0.2°<30°(Measuring range)
    0.3°<60°(Measuring range)
    Roll tilt range
    ±85°
    Resolution
    0.1°
    Compass tilt the best compensation angle range
    <40°
    Hard iron calibration
    Yes
    Soft iron calibration
    Yes
    Magnetic field interference calibration method
    Plane rotation in 1circle(2D Calibration)

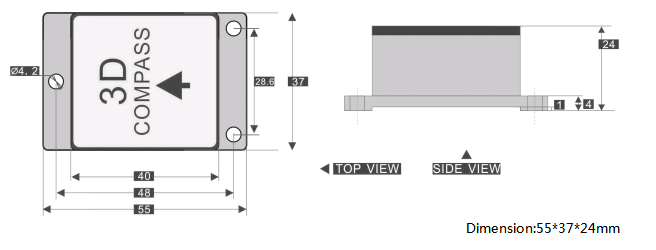

    Dimension
    L55×W37×H24mm
    Weight
    20g
    RS-232/RS485/TTL interface connector
    4 core cable
    Start delay
    <50MS
    Maximum output rate
    20Hz/s
    Communication rate
    2400 to 19200baud
    Output format
    Binary high performance protocol
    Power supply
    (Default)DC+5V
    (Customized)DC9~36V
    Current(Maximum)
    45mA
    Ideal mode
    35mA
    Sleep Mode
    TBD
    Operating range
    -40℃~+85℃
    Storage temperature
    -40℃~+100℃
    Resistance shock performance
    2500g
    Electromagnetic compatibility
    According to EN61000 and GBT17626
    MTBF
    ≥40000 hours/times
    Insulation resistance
    ≥100M
    Shock resistance
    100g@11ms,3Times/Axis(half sinusoid)
    Anti-vibration
    10grms,10~1000Hz
    Weight
    90g(not include cable)

    Measuring Direction


    Q: How to choose suitable products before ordering?

    A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price.

    Q: What's kind of payment methods ?

    A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible.

    Q: How about lead time for order ?

    A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay.

    Q: How about quality inspection before shipment ?

    We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment .

    Q: What's the transportation methods ?

    A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder .

    Q: How about after-sale service ?

    A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible.

    Q: How about product warranty and repair service?

    A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a reasonable fee according to the actual situation.

    Q: Are the samples available free of charge?

    A: At first time co-operation, we need charge related cost for samples , because our products belong to the military & Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding .

    Wish a pleasant cooperation with you !
