    Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-B617S
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 75 Piece / Pieces Per Month
    Delivery Time : 20 Days After Order
    • Product Details
    • Company Profile

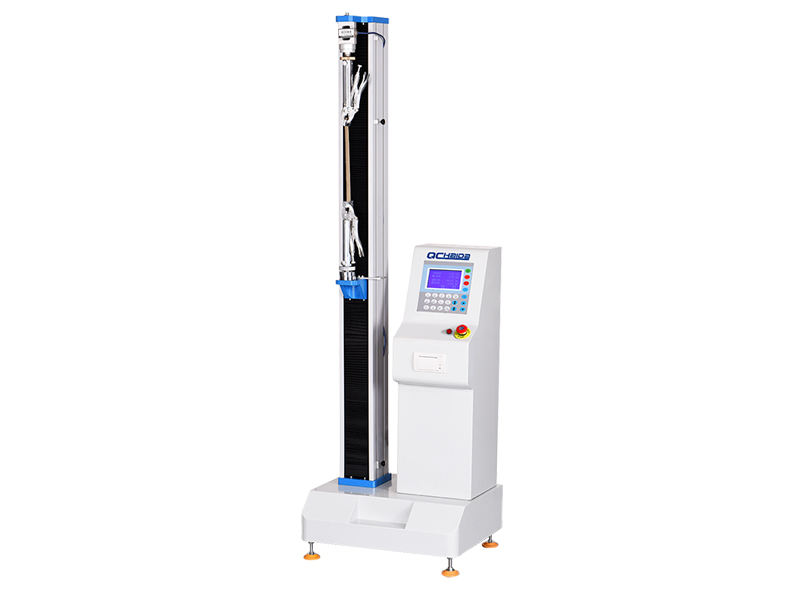

    Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control

    Single Column Automatic High-Precision Computer Control Anti-Stretch Pull Test Machine


    APPLICATIONS

    1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

    2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

    3. Deformation under defined load: Test deformation under defined load of tested sample

    4. Load under defined deformation: Test load under defined deformation of tested sample

    5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.


    STANDARD FEATURES


    ItemDescription
    Frame capacity500kg
    Load cell brand

    Germany brand load cell for high accuracy

    500kg (5,10,50,100,200kg are optional)

    Load accuracy0.5% F.S
    Control systemLCD with build-in printer /PC with windows 7 system
    MotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
    Force readingkgf, Ibf, N, KN, T etc
    Vertical test space1400mm including fixture
    Test speed0.1~500mm/min (adjustable)
    SoftwareTM 2101
    Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strain
    Data displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
    Safety features

    E-Stop

    Over-load protection

    Upper and lower limit switches

    Load sensor with automatic retreat


    User setting page


    Curves display picture


    Test result picture


    Test curve page
