For Modified Tapioca Starch Handling SS304 DN200 Pneumantic Rotary
Valve
Product Description
- Rotary airlock valve is mainly used to discharge the material
continuously from the tripper and dust collector, and make sure the
inner pressure not exposed to atmosphere pressure environment.

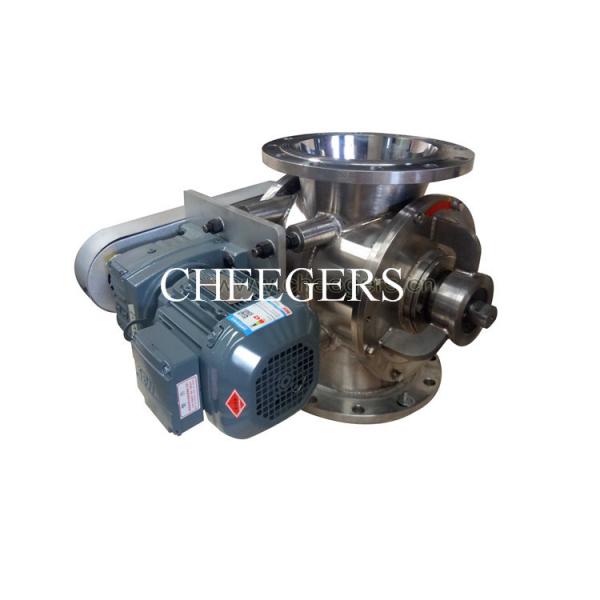

- Pneumatic rotary valve, also named discharge valve, star
discharger, cinder valve, is an important equipment for pneumatic
conveying system and dust removal system.
- The rotary airlock valve is made of gear motor, sealing element,
impellers and rotor housing on which many rotating blades are set.
- It is capable of discharging powder, small particles, flaky or
fiber continuously by the differential pressure of material.
- Now it has been widely used in chemical, pharmacy, drying, grains,
cement, environmental protection and power industry etc.
Application: to be used under cyclone, dust collector, in vaccum
system.
Cheegers Rotary Valve Model Interpretation
| Chegers Machinery RV Series Rotary Valve Model Interpretation |
| Model Format:Product Model.Classification Model--Equipment Volume
Like RV-D.P-12L |
| Note: If there is a parallel classification relationship, it should
be arranged in the order of feeding form, pressure, wear
resistance, micro feeding and cleaning type, and the English stop
".Interval for example: tangential normal pressure wear resistant
fast cleaning 12L drop-through rotary valve——RV-D.T.N.AR.SC-12L |
| Product Model | English Interpretation |
| RV-B | Rotary Valve-Blow Through |
| RV-D | Rotary Valve-Drop Through |
| Classification Model | |
| T | Tangential |
| SC2 | Self-Cleaning 2代 |
| SC1 | Self-Cleaning 1代 |
| N | Normal Discharge |
| P | Positive Pressure |
| V | Vacuum |
| QC | Quick-Cleaning |
| M | Micro |
| PI | Pulse Inject |
| AR | Abrasion-Resistant |
| HP | High Pressure |
| HT | High Temperature |
| Note: Flange standard, material requirements, accessories,
transmission form, power configuration and so on are explained in
the product remarks. |
Explosive Drawing
Dimension Display
Type | External dimension | Inlet | Outlet | Install size | Shaft |
| A | B | H | E | F | D1 | D2 | e | f | h | g | m | D | d | k |
| TGFY-5L | 410 | 300 | 435 | 250 | 170 | Φ222 | Φ152 | 180 | 150 | 160 | 220 | 130 | Φ200 | Φ35 | 50 |
| TGFY-7L | 420 | 310 | 435 | 260 | 180 | Φ250 | Φ162 | 182 | 160 | 160 | 230 | 140 | Φ220 | Φ35 | 50 |
| TFGY-9L | 470 | 310 | 435 | 260 | 230 | Φ270 | Φ192 | 182 | 210 | 160 | 230 | 190 | Φ240 | Φ40 | 50 |
| TGFY-12L | 520 | 370 | 530 | 320 | 238 | Φ288 | Φ208 | 240 | 218 | 190 | 290 | 200 | Φ260 | Φ40 | 50 |
| TGFY-16L | 570 | 370 | 530 | 320 | 280 | Φ330 | Φ250 | 240 | 260 | 190 | 290 | 240 | Φ300 | Φ40 | |
Application
Overseas Exhibitions
Cheegers has been engaged in exhibitions home and abroad for some
time, like Thailand, Turkey, Iran, Pakistan, etc.
We supply rotary valves for many brands in China, like Buhler,
Sataka, Cofco, Yihai Kerry, Muyang, etc.
Certificate
Cheegers has got the CE for pneumatic rotary valve and diverter
valve as below:
We also have other patents for rotary valve and diverter valve
domestically.
Like high airtight rotary airlock valve patent, apprearance patent
for airlock valves, etc
