Glass Jar Making Machine, ASB Injection Moulding Machine, Bottle
Manufacturing Machine
Why Fully Automatic Bottle Manufacturing Machine
Suitable material inlcudeds PET, PETG, PC, PCTG, Tritan, SK etc.

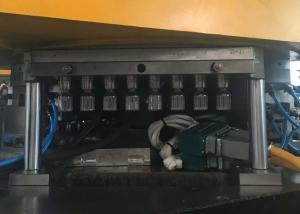

This is a single stage injection stretch blow molding machine with
three station.
Injection station is for injection preform from raw material.
Widely uesd for automatically manufacturing plastic bottles.
Perform PET bottles automatically at higher speed and producing and
no flash or trimmings.
Producting PET bottles with even wall thickness, clarity, strength
and rigidity.
The neck of the bottle is precisely shaped for zero leak sealing.
Shaping ability: the preform remains warm during the process, which
could present a better shaping ability, a sharper angle.
Fixed orientation: Since the preform is held constant during the
entire molding process, the neck finish is oriented to body of the bottle.
Stable performance with advanced PLC.
Conveying preforms automatically with conveyor.
No contamination and low noise with the air cylinder to drive the
action instead of the oil pump.
Strong clamping force with high pressure and double crank links to
lock the mold.
Data Sheet of JASU Injection Stretch Blow Molding Machine (ISBM)
| Item | Unit | Machine Type |
| ISB 1100AN-3 |
| Injection Part | Screw Diameter | mm | 50 |
| Screw L/D Ratio | L/D | 24:1 |
| Screw Speed | r/min | 0-150 |
| Theoretical Injection Capacity | cm3 | 481 |
| Injection Pressure | MPa | 176 |
| Max. Hydraulic Pressure | Kg/cm | 140 |
| The Actual Injection Quantity | g(ps) | 452 |
| Oz | 16 |
| Screw Stroke | mm | 245 |
| Clamping Part | Blow Clamping Force | KN | 150 |
| Clamp Tonnage | KN | 600 |
| Wheel Diameter | mm | 1100 |
| Max. Height | PP, PET, PETG, Tritan, PS, PC | mm | 200 |
| PC, PETG, Tritan, PS | mm | 220 |
| Open Vertical Mode Trip | mm | 570 |
| Others | Max. Pump Pressure | MPa | 16 |
| Servo Motor | Kw | 22 |
| Mode Opening/Locking Motor (Double Pump) | Kw | 22 |
| Electric Power | Kw | 12.2 |
| Tank Volume | L | 420 |
| Dimension of Machine | m | 4.5*1.95*3.4 |
| Machine Weight | T | 9 |
--Parameters are subject to change without prior notice.
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according
to customers' requirements. |
JASU Bottle Blow Molding Machine is widely used for various plastic
materials and has broad application prospects
Applicable to the thermoplastic materials such as PCTG, PETG, PET,
PC, PS, Tritan etc.
Shapes: cylinder, jar, oval, non-round, oblong, square, plain
round, wide-mouth, ultra-light etc.
A large range of refined and essential designed platic blow molded
bottles / jars are available from size 10-2500ml.
Widely used in manufacture of packaging bottles for
pharmaceuticals, healthcare product and cosmetic industries.
Cosmetics Packaging: mascara, lotion, cream etc.
Pharmaceuticals: eye drops, medicine bottle, pills, oral liquid,
intravenous drip bottles etc.
Baby Feeding Bottles, Spice, Liquor, Carbonated Drink, Beverage
Bottles etc.
PC bottle and wine goblet such as water bottle, juice jug, beer
jug, milky tea jug, wine jug etc.
Lampshade, lamp chimney, LED bulb housing, big safety bulb housing,
irregular bulb housing Φ30-Φ80, Φ80-Φ300, lotus bulb housing etc.
Why JASU Precision Machinery?
We are THE FIRST to manufacture One Stage Injection Stretch Blow Molding Machine in China on basis of digestion and absorption of the advanced technology from
Japan and Germany.
Manufacturer/Direct Factory with production base takes 24000m2.
Own highly qualified technical staffs (20-30 persons) and R/D
center.
Obtained a number of technical patents.
Market network throughout the country , and export to many
countries of East Europe, South America, South Africa etc.
Our machine enjoyed high reputation among customers.
Overseas sales increase 33% annually.
Service technicians (holding visa and passport) are on call and
able to serve on site and instruct via voice and videos.
Question & Answer
Q1: Are you a factory or trading company?
A1: We are established in 2003, a actual factory and manufacturer
in the line of injection blow molding machine for 18 years.
Q2: Where is your factory located? How can I visit you?
A2: Our factory is located in Panyu District, Guangzhou, Guangdong
Province, China, about 48 minutes by high-speed railway from Hong
Kong.
5 minutes driving away from Shiqiao subway station.
We can book hotel for you and pick you up from CAN BAIYUN airport
or Guangzhou south railway station.
Q3: How about the payment term?
A3: Advancement (subject to our marketing strategy and both
parties' discussion) and settle the balance payment prior to
delivery.
Q4: What about your main market?
A4: Our machines were sold well in China, also exported and enjoyed
a good reputation among customers from Europe, Russia, Southeast
Asia, Middle and South America, Africa etc.
Our customers widely spread over Russia, Italy, Poland, Turkey,
Netherlands, Sweden, Bulgaria, Brazil, Ecuador, Thailand, India,
Myanmar, Malaysia, Vietnam, Cambodia, Egypt, Algeria, South Africa,
Ivory Coast, Philippines, Bangladesh......
Q5: How does your factory do regarding quality?
A5: Quality is the most important principle. JASU people always
attach great importance to quality controlling from the very
beginning to the very end. Our factory has passed ISO and CE
certification. Patents and many other certificates obtained also
tells this.
Q6: What about warranty and do the engineers available to overseas?
A6: One year warranty. During this period, if you need any support
on installation, adjustment , operation or maintenance, our
engineers can go abroad to fix for you.
Q7: Others?
A7: We will request the working voltage and power frequency at the
buyer's side when he placing the order.
Each order will be fulfilled as a turn key project of machine.
- We will check and test the machine and send the video to the
customer for reference prior the delivery.
- Attache/send an operational manual in English version with the
shipment.
- To use the machine only need to connect power and connect to the
air supply and water supply according to the manual or video
instructions if requested.
- Service technicians are on call to instruct via voice and videos.
They all hold visa and passport and be able to serve on site.
