Sheet Metal V-grooving machine for Hotel and restaurant detailing
Main Features
1. CNC metal grooving machine is compact in structure, reliable in
performance, easy operation, no deformation forever.
2. The structure consists of three sets of servo motor drive
system, pneumatic clamping system and main steel frame.

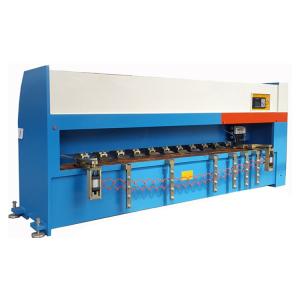

3. The structure of the vertical CNC V Grooving Machine is similar
to that of the door frame type. The fixture is used to pull the
plate to the corresponding processing position. After the clamp is
pressed, the V groove is processed by the cutter movement. It can
be understood that through the movement of the plate to cooperate
with the tool processing, the tool only performs the linear
movement of the processing.
This equipment is fully CNC V Groover Machine for metal sheet. It
adopts advanced CNC system and innovative design with the
advantages of high processing precision, simple operation, no
noise, no vibration and so on. It is widely used in the sheet metal
V-groove, U-groove and other irregular groove processing (including
stainless steel, aluminum, aluminum plate, copper, iron, plastic,
wood, acrylic panels and other special plates).Particularly.It is
applicable to the V-groove processing of sheet metal before bending
.
Technical Data
| NO | NAME | PARAMETER | UNIT |
| 1 | Max. Width of metal sheet | 1250 | mm |
| 2 | Max. Length of metal sheet | 4000 | mm |
| 3 | Max. thickness(Stainless steel) | 6 | mm |
| 4 | Min. Thickness of metal sheet | 0.4 | mm |
| 5 | Min.distance of the V from edge | 10 | mm |
| 6 | Max. cutting speed of X axis | 120 | m/min |
| 7 | Max .return speed of the X axis | 120 | m/min |
| 8 | Max.distance of Y axis | 1250 | mm |
| 9 | Resolution in Y1 axis | 0.001 | mm |
| 10 | Repeated positioning accuracy | ±0.01 | mm |
| 11 | Resolution in z axis | 0.001 | mm |
| 12 | Repeated positioning accuracy | ±0.01 | mm |
| 13 | Motor power | X axis | 5.5 | kw |
| Y axis | 1 |
| Z axis | 1 |
| 14 | Overall dimensions | Length | 5700 | mm |
| Width | 2350 |
| Height | 1850 |
| 15 | Weight | 11 | T |
 |  |
| Single Tool holder | Back gauge |
 |  |
| Front bracket | Double tool holder |
 |  |
| Presser foot | CNC Control System |
1. The CNC system is easy to master, operate and safe. The
manufacturer also provides free system upgrades
2. Vertical V-grooving machine is an upgraded product of
traditional V-grooving machine, with more stable performance, and
two knife holders can be customized.
3. When the machine is working, the beam is fixed, and the
workpieces are transported in sequence by the back feed mechanism.
The working surface is made of carbon steel. After quenching, the
high-frequency surface hardness reaches 55 to 60 HRC (ordinary
tabletop <30 HRC), making the table harder than stainless steel,
keeping the surface flatness of the table ≤ ± 0.03mm, to avoid low
hardness Scratches.
4. The machine is made of welded steel plates, with high strength,
stable operation and low noise.
