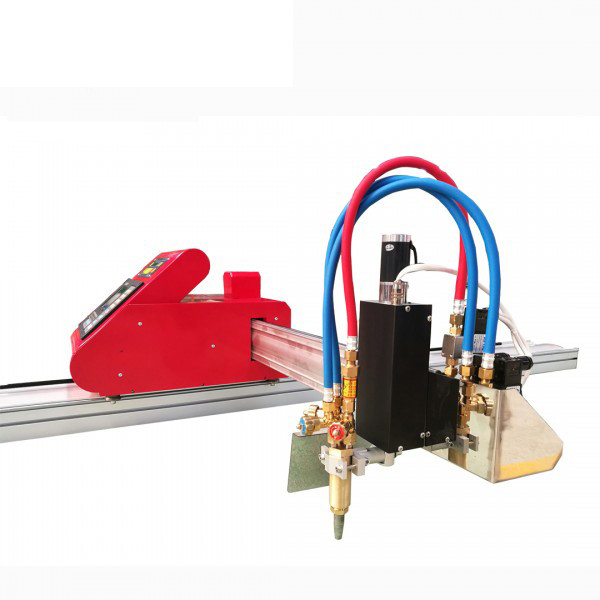

MS-2030 Portable CNC plasma and flame cutting machine
roduct description
Ltd. carefully developed and developed a high-precision portable
CNC flame / plasma cutting machine, its affordable, easy to use and
easy to learn more accurate. Than the original cutting machine
processing format larger, thicker cutting thickness. For wider,High
strength, durable for a long time Effectively reduce processing
costs. Machine covers an area of small, fully effective equipment
to play the effectiveness.
Features
1, the new special high-strength hard aluminum alloy rails, the
whole operation smooth and no noise, with high-speed high-precision
and so on. 2, the whole operation is simple, full-featured, with
man-machine dialogue and so on.
3, can be achieved CAD file into a working program file, automatic
nesting function, through the U disk transmission to the
transmission to The system mainframe cuts the metal material
arbitrarily.
4, with portable CNC cutting machine function, for carbon steel,
stainless steel and non-ferrous metal cutting.
5, with plasma flame plasma dual-use cutting function.
6, with Chinese, English, French, Russian and other languages.
7, the system has automatic power off memory and automatic recovery
function.
8, increase the way: electric height and arc pressure automatically
increase the two, the flame for the electric increase, the plasma
for the arc pressure automatically raised, self-test plate Adjust
the change and automatically increase the height of the torch and
steel plate, to avoid cutting the gun hit the steel plate to reduce
losses.
Technical Parameters
| Name | Portable CNC plasma and flame cutting machine |
| Model | MS-2030HDX |
| Arc pressure increase | No arc pressure adjustment device |
| Cutting range (X * Y) | 2000*3000 |
| Customizeinformation | The length of the guide rail (effective cutting length Y axis) can
be customized according to customer requirements |
| Y-axis guide size | 3500*293*100 |
| Motor type | 57 # stepper motor |
| Torch raise type | Electric up |
| The number of lifts | 1set |
| nput voltage | Single phase AC-220V |
| input power | About 220W |
| Running speed | 0-6000mm / min (max 8000mm / min) |
| Cutting type | Flame / plasma cutting |
| Drive mode | Gear rack drive |
| Torch lift | 0-105mm |
| Operating accuracy | 0.2mm/m |
| Flame cuttingthickness | Piercing ability:5-60mm edge cutting 5-150mm |
| Plasma cuttinthickness | Depending on the size of the plasma power supply |
| Flame ignition device | Standard with no (customizable) |
| Gas requirements | Acetylene / propane gas pressure ≤ 0.1MP |
| Oxygen requirements | Oxygen maximum pressure ≤ 1MP |
| Selection of color | Red, yellow and blue |
| Cutting table | We provide cutting table drawings for the user reference (material
required to purchase their own users) |
