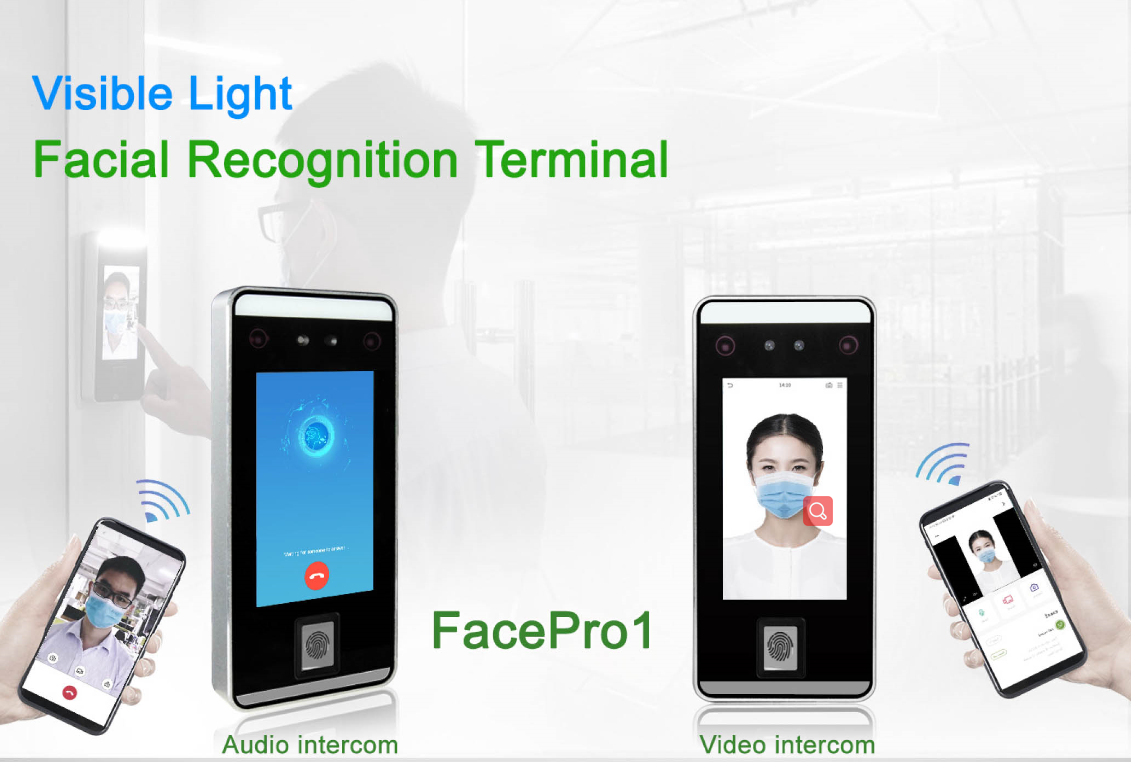

Facial Recognition Access Control System and Fingerprint Time
attendance with WiFi
Product Description
Recognition distance up to 2m long and extra wide angle recognition
The recognition distance has been greatly extended up to 2 meters
long, which significantly improves maximum traffic rate. While most
of algorithms only support 15-degree angle facial recognition,
supports 30-degree angle facial recognition.
Product Description
Enhanced Visible Light Facial Recognition
Better hygiene with touchless biometric authentication, masked
individual identification increase FAR
Anti-spoofing algorithm against print attack(laser, color and B/W
photos), videos attack and 3D mask attack
Communication mode: TCP/IP, RS232, RS485, Wiegand in/out and Wi-Fi
Built-in ID reader of 125Khz, Optional 13.56Mhz IC (MF) card
Multiple Verification: Face/Fingerprint/Card/Password
Supplement light with adjustable brightness
Professional web based management software
Recognition distance: 0.3-2 meters
Specification
| Model | FacePro1 |
| Display | 5-inch Touch Screen |
| Face Capacity | 6,000 |
| Fingerprint Capacity | 6,000 |
| Card Capacity | 10,000 ID Cards, (Optional: IC/MF card function) |
| Transactions | 200,000 logs |
| Communication | TCP/IP, Wi-Fi, Wiegand input/output, RS485, RS232 |
| Standard Function | ADMS, T9 Input, DST, Schedule Bell, Camera, 9 Digit User ID, Access
Levels, Groups, Holidays, Anti-passback, Record Query, Tamper
Switch Alarm, Multiple Verify Mode |
| Hardware | Dual Core CPU, Memory 512MB RAM/8G ROM 2MP WDR Low Light Camera, Adjustable Light Brightness LED |
| Operation System | Linux |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output,
Auxiliary Input |
| Optional Function | IC/MF card 13.56MHz |
| Face Recognition Speed | <=1s |
| Power Supply | 12V/3A |
| Operating Humidity | 10%-90% |
| Operating Temperature | -10degree to 45degree |
| Dimensions | 91.93X202.93X21.5MM |
Connection Diagram
