    Packaging Material Sealing Testing Machine Leak Tester

    Ask Lasest Price
    Brand Name : POOTAB
    Model Number : PT-BZ002
    Certification : ISO,CE,SGS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 Sets Per Month
    Delivery Time : 7 to 10 Working Days After Deposit Confirmation
    • Product Details
    • Company Profile

    Packaging Material Sealing Testing Machine Leak Tester

    Packaging Material Sealing Testing Machine Leak Tester With Vacuum


    Use:

    It is suitable for the sealing test of products. Through the test, it can compare and evaluate the sealing process and sealing performance of flexible packaging pieces effectively. It is an ideal testing instrument for food, plastic flexible packaging, moist towel, pharmacy and daily chemical industries.


    Application Products:

    soft packaging bag, hard packaging bottle, medicine bottle, metal tank, bubble wrap ,composite packaging.


    Meet Standards : GB/T 15171,ASTM D3078

    Parameters :
    1. Vacuum Degree: 0 ~ -90 KPa
    2. Accuracy: 1%
    3. Vacuum Chamber Effective Size:
    4. Φ270 mm x 210 mm (H) (standard)
    5. Φ360 mm x 585 mm (H) (purchase optional)
    6. Φ460 mm x 330 mm (H) (purchase optional)
    7. Note: customization is available for other sizes
    8. Gas Supply Pressure: 0.7MPa (Customers prepare themselves)
    9. Gas Source Port Size:Ф6 mm PU Tubing
    10. Instrument Dimension: 300 mm (L) x 380 mm (W) x 450 mm (H)
    11. Power Supply: 220V AC 50Hz
    12. Weight: 12 kg

    Features:

    1. The system adopts digital preset test vacuum degree and vacuum holding time to ensure the accuracy of test data.
    2. Adopting worldwide well-known SMC imported pneumatic components, the performance is stable and reliable
    3. The automatic constant pressure filling further ensures that the test can be carried out under preset vacuum conditions
    4. The professional software supports automatic blowback discharge and automatic end of test to ensure test process is carried out smoothly.
    5. The system is controlled by microcomputer and equipped with liquid crystal display and PVC operation panel for users to quickly test and check data

    Principle :
    By vacuuming the vacuum chamber, the pressure difference inside and outside of the sample immersed in water was produced, and the gas inside the sample was observed to determine the sealing performance of the sample.By vacuuming the vacuum chamber, the pressure difference inside and outside of the sample was produced, and the shape recovery of the sample after expansion and release of the vacuum was observed to determine the sealing performance of the sample.

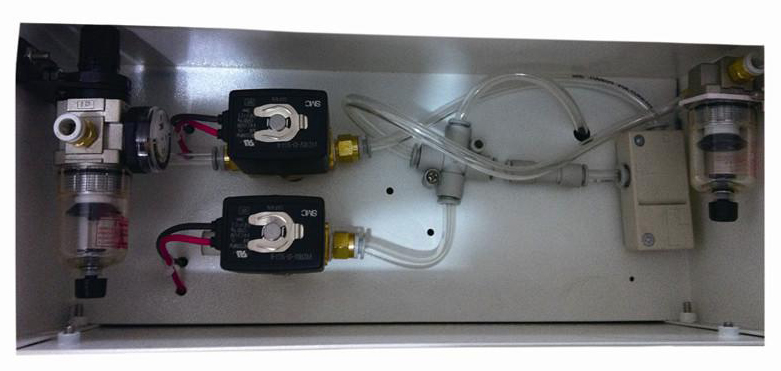

    The interior use imported SMC pneumatic components

    2 pieces of filter pressure reducing valve, vacuum generator, liquid crystal pressure gauge, air filter and two-way electromagnetic valve) vacuum generator produces a vacuum, forming a stable and rapid test environment.

    The basic applications:

    sealing test of glass bottle, tube, tank and box

    plastic bottle, pipe, metal material bottle, paper-plastic composite bag and box materials


    Extended applications:

    sealing test of pen core, electronic components,

    medical instrument

    Test method :

    According to GB/T 15171, to put a proper amount of distilled water in the vacuum chamber and then submerge it in the water.At this point, the distance between the top of the sample and the water surface shall not be less than 25 mm.Cover the sealed cover of the vacuum chamber and adjust to one of the following values: 20, 30, 50, 90 kPa, and keep the vacuum level at 30 s.The set vacuum value shall be determined according to the characteristics of the sample (such as packing materials used, sealing conditions, etc.) or in accordance with the relevant product standards.

    During the test, attention should be paid to the leakage of the sample during the forming of vacuum and the maintenance of vacuum, and to observe whether there are continuous bubbles. Isolated bubbles are not regarded as leaks.The quality of packaging bags is measured by the measurement of sealing, and then the rationality of packaging technology is determined.

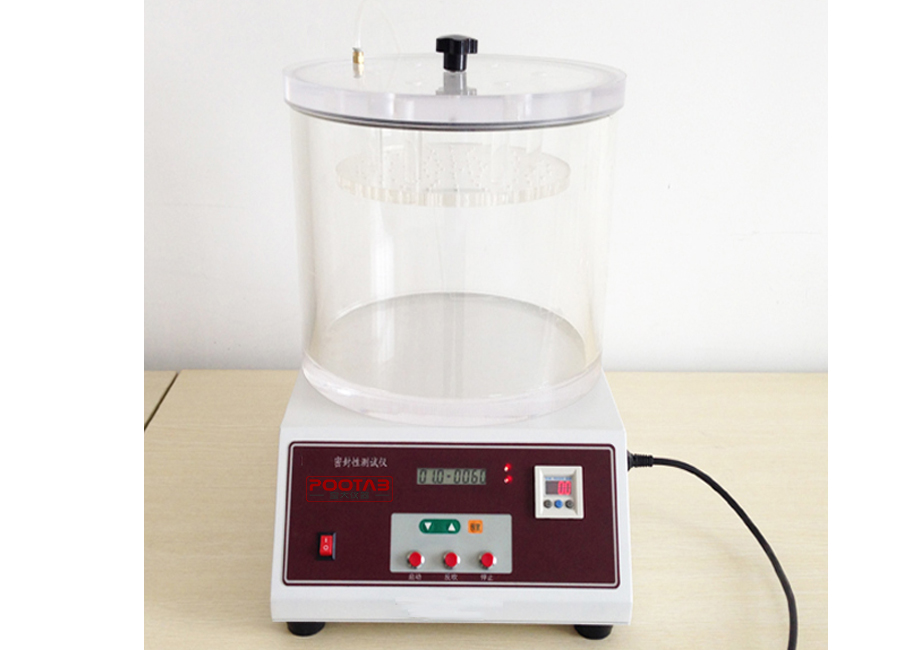

    Seal Leak Tester Picture :


    Quality Packaging Material Sealing Testing Machine Leak Tester for sale
