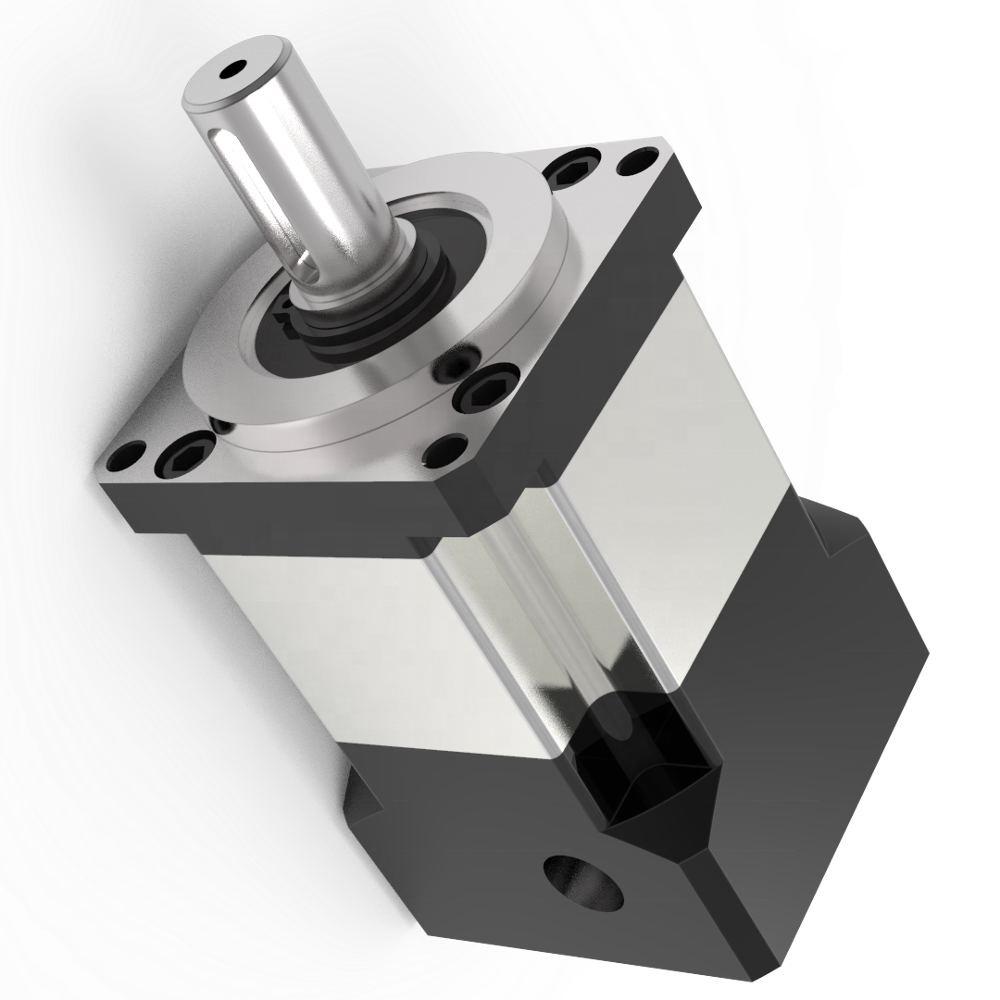

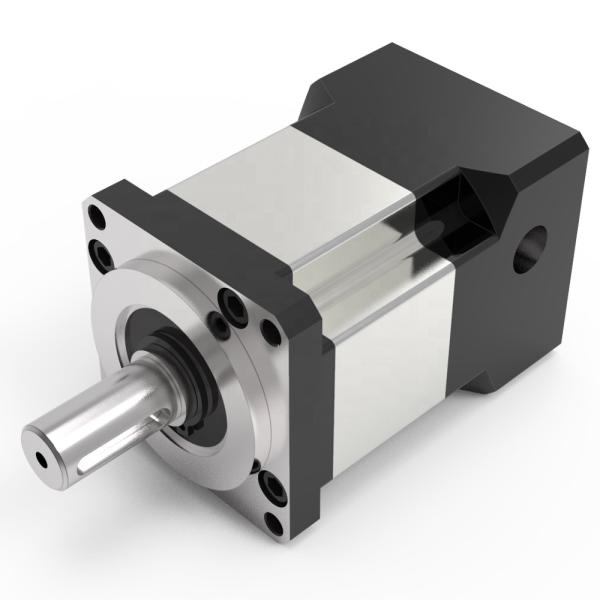

Precision Gear Reduction Planetary Arrangement double stages 94%
Efficiency
Our research team has more than 15 years experiences in this field,
who can ensure a punctual and efficient service to meet customer’s
specific needs. It has pasted the ISO9001 quality management system
and CE.
Competitive & Advantages of Planetary Gearbox
ODM & OEM Service
Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature
Test/ Air-tight Test/ Salt Spray Test
Low Noise, Low Backlash, High Efficiency
20000 Hours Working Life
100% Quality Checked with Quality Guaranteed
| Applicable Industry | Manufacturing Plant, Machinery Repair Shops, Automation Industry | Manufacturer Type | OEM/ ODM |
| Gearing Arrangement | Planetary | Lubricating oil Type | Synthetic Grease |
| Output Torque(N.m) | ≤30 | Output Speed (rpm) | ≥43rpm |
| Input Speed (rpm) | ≤3000 | Ratio | 4,5,7,10, 16,20,25,28,35,40,50,70 |
| Place of Origin | China | Brand | HPS |
| Main Material | 45# Steel & CrMnTi | Material of shaft | As required |
| Certifications | ISO-9001 / CE | Model | PLF60 |
| Packing Type | Standard Export Package | Warranty | 1 Year |

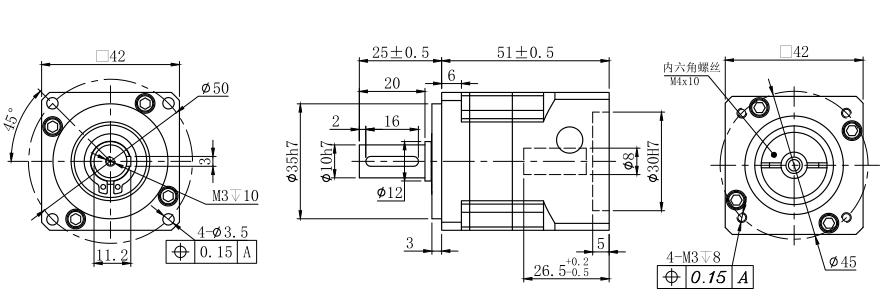

Planetary Gearbox Specifications
| Model | PS42 |
| Drive series | 2 |
| Ratio | 16,20,25,28,35,40,50,70 |
| Rated output torque(N.m) | ≤10 |
| Max torque(N.m) | 15 |
| Noise (db) | ≤60 |
| Working temperature(℃) | -40~90 |
| IP Level | 54 |
| Full Load Efficiency | 90% |
Planetary Gearbox Classification & Application Fields

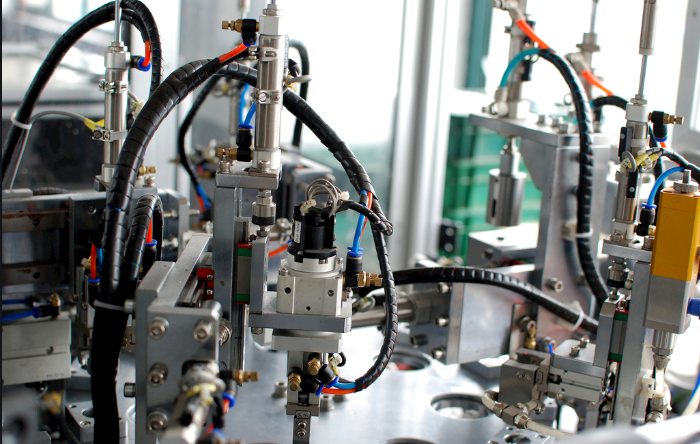

Successful Field
Exhibition
HPS as a newcomer of automation industry, it had attended sveral
exhbitions during 3 years. The photos show that HPS sales team
attended ShangHai PV exhibition.
Packaging
Certifications
We have obtained many certificates in terms of quality and
invention patents, and only a part of them are shown here.
These certificates are sufficient to prove that the quality of our
products is reliable, and we look forward to cooperating with you.
FAQ
1. Are you manufacturer?
Yes, we are the manufacturer in China.
2. What information shall we give before placing a purchase order?
A) Motor specifications, ratio, output speed, output rated torque,
backlash and noise requirements, connection type.
B) Purchase quantity
C) Other particular requirements
3. What applications are your gearboxes being used?
Our gearboxes widely used in the applications of solar energy, AGV,
robot arms, textile, food processing, chemical industry, automation
production line, environment protection, logistics and etc.
4. Would you customize for special requirements?
Yes, we have design and development team with over 10 years
experience in this field.
5. Can I come to your company to visit?
Yes, you can come to our company to visit at anytime
