1. Full Automatic Carbonated Soft/Soda Drink Filling
Machine/Production Line flow chart
DXFG series is special for carbonated drink filling, combined with
rinsing, filling and capping. It is innovated and designed in the
requirement of hot filling juice beverage technics, on the bases of
introducing, digesting and absorbing advanced technology abroad. It
is reasonable in structure, safe to operate and easy to maintain,
which is an ideal choice for beverage producers.
the output can reach 30000bph for this machine
the output range is 2000-30000bph
with gripper technology, very easy to change your bottle style.
2. Model of Full Automatic Carbonated Soft/Soda Drink Filling
Machine/Production Line
| Model | Working capacity |
| DXGFD14-12-5 | 2,000BPH |
| DXGF18-18-6 | 4,000BPH |
| DXGF24-24-6 | 6,000BPH |
| DXGF24-32-6 | 9,000BPH |
| DXGFH40-40-10 | 12,000BPH |
| DXGFH50-50-12 | 18,000BPH |
3. Techncal details of Full Automatic Carbonated Soft/Soda Drink
Filling Machine/Production Line
2.1.Bottle infeed
2.2. Rinser
2.3. Filler
2.4. capper
Base

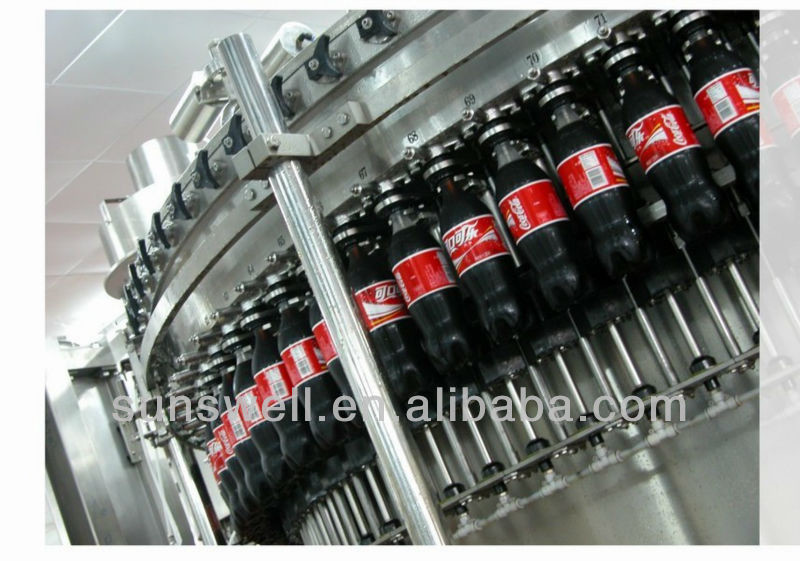

Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Controlling cabinet
main components
1) Material of filling valve: Stainless steel SUS316L.
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3) Main motor: ABB/SEW.
4) Sliding bearing: Igus.
5) Frequency inverter: Mitsubishi.
6) Touch screen: PROFACE.
7) PLC: Mitsubishi.
8) Pneumatic components: FESTO.
9) Seals: Busak+Shamban.
4. Plant tour
