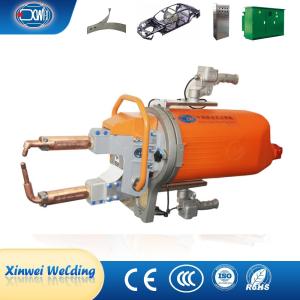

220V 380V Portable Suspended Spot Welding Gun
X type C type
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 120-280 | 100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
1. The current limit of the welding point of the weldment is high, and the hotbed is also high. Therefore, after the welding machine controller controls the energization time, the welding point can get a reproducible nugget state, so it can adapt to multiple types of the same or dissimilar metals and Welding of coated steel plates.
2. The suspension spot welding machine adjusts the heat by changing the conduction angle of the thyristor through the welding machine controller, so it is easy to realize mechanization and automation, so it can be matched with a robot for fully automatic welding operation.
3. The split-type suspension spot welding machine is equipped with a suspension device, which can move and rotate in any direction in the X, Y, Z three-dimensional space up, down, left, and right. The operation is extremely light and flexible, and it can realize all positions and all directions. Welding operation.

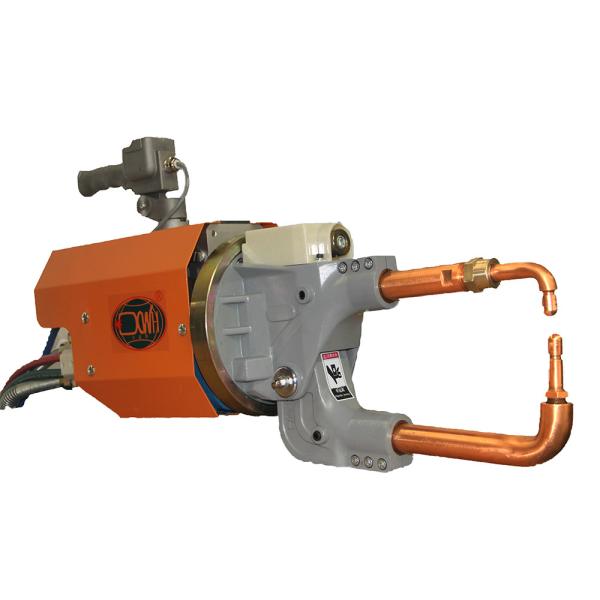

X Type
Company Information
ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.
This is one of our overseas customers' factories.
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.Can you put my brand name (logo) on this Spot Welder?
Yes,we can . In order to explore the market better and provide more convenient services to global customers.
9.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
Chengdu Xingweihan Welding Equipment Co., Ltd.
Company Information:
Chengdu Xingweihan Welding Equipment Co., Ltd is a high-tech
corporation integrated with researching, developing,
manufacturing,marketing and service. Our company was established in
decades ago and produced resistance welding machine and
relative products.Now it is located in Eastern Industrial Zone,
Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy,
United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and
other more 40 countries.
Our main products: Portable Spot Welder, Portable MF Spot Welder,
Suspension Spot Welding Machine, Stationary Resistance Spot Welding
Machine, Robotic Welding Gun, Seam Welder, Nut Feeder,
Micro-computer resistance controller,etc.
